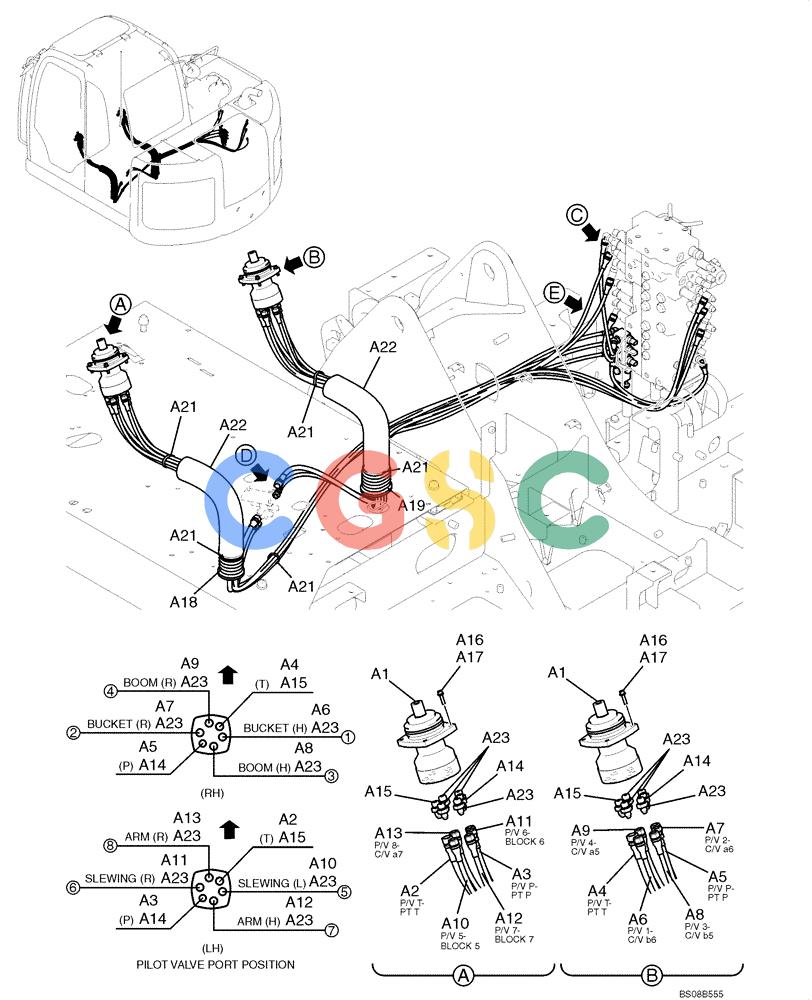

| A1. | YN30V00111F1 | [2] | HYDRAULIC VALVE | SMAssembly, Pilot -- See Figure 08-25-00 |
| A2. | 2420R537D135 | [1] | FLEXIBLE HOSE,9.60mm ID x 1350mm L | KOB1350mm Long (53-9/64 in) Superseded by part number: HX21E06135DX |
| A3. | LS68H01016D1 | [1] | HOSE,6.3mm ID x 1350mm L | KOB1350mm Long (53-9/64 in) |
| A4. | 2420R537D140 | [1] | HOSE ASSY.,9.60mm ID x 1400mm L | KOB1400mm Long (55-7/64 in) |
| A5. | LS68H01016D4 | [1] | HOSE,6.3mm ID x 1400mm L | KOB1400mm Long (55-1/8 in) |
| A6. | HX23L04250CR | [1] | FLEXIBLE HOSE | KOB2500mm Long (98-7/16 in) |
| A7. | HX23L04280CB | [1] | FLEXIBLE HOSE | KOB2800mm Long (110-1/4 in) |
| A8. | HX23L04250CG | [1] | FLEXIBLE HOSE | KOB2500mm Long (98-7/16 in) |
| A9. | HX23L04270CH | [1] | FLEXIBLE HOSE | KOB2700mm Long (106-19/64 in) |
| A10. | HX23L04290CH | [1] | FLEXIBLE HOSE | KOB2900mm Long (114-11/64 in) |
| A11. | HX23L04290CR | [1] | FLEXIBLE HOSE | KOB2900mm Long (114-11/64 in) |
| A12. | HX23L04290CB | [1] | FLEXIBLE HOSE | KOB2900mm Long (114-11/64 in) |
| A13. | HX23L04350CG | [1] | FLEXIBLE HOSE | KOB3500mm Long (137-51/64 in) |
| A14. | HH25X04004G2 | [2] | HYD CONNECTOR | KOB(with Filter) (Incls. O-Ring ZD12P01100) |
| . . | ZD12P01100 | [1] | O-RING | KOB(Part of HH25X04004G2), ID 10.80 ± 0.18 x OD 15mm, Not Shown |
| A15. | ZH22X06000 | [2] | HYD CONNECTOR | KOB(Incls. O-Ring 237-6006) |
| . . | 237-6006 | [1] | O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro | CAS(Part of ZH22X06000), SAE No. 6-1, Not Shown Superseded by part number: 9617873 |
| A16. | ZS28C06025 | [8] | SCREW,Hex Socket Head, M6 x 25mm | KOBM06x1.0x25mm |
| A17. | ZW16P06000 | [8] | WASHER | KOBID 06 x OD 11.5 x Th 1.6mm |
| A18. | PH03M01250P1 | [1] | BOOT | KOB |
| A19. | YY03M01046P1 | [1] | BOOT | KOBBoot |
| A21. | PY01P01043D8 | [5] | CABLE TIE,102mm L | KOBWire Ties -- 368mm Long |
| A22. | YN68H01106P1 | [2] | COVER | KOB |
| A23. | ZH22X04006 | [8] | HYD CONNECTOR | KOB(Incls. O-Ring 237-6006) |
