神钢零件查询(K903B) - EXCAVATOR ASN LE3401 (1/85-12/03) (07-001) - INSTAL, CRAWLER TRACK P/N 24100J1117F11 Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
651 次

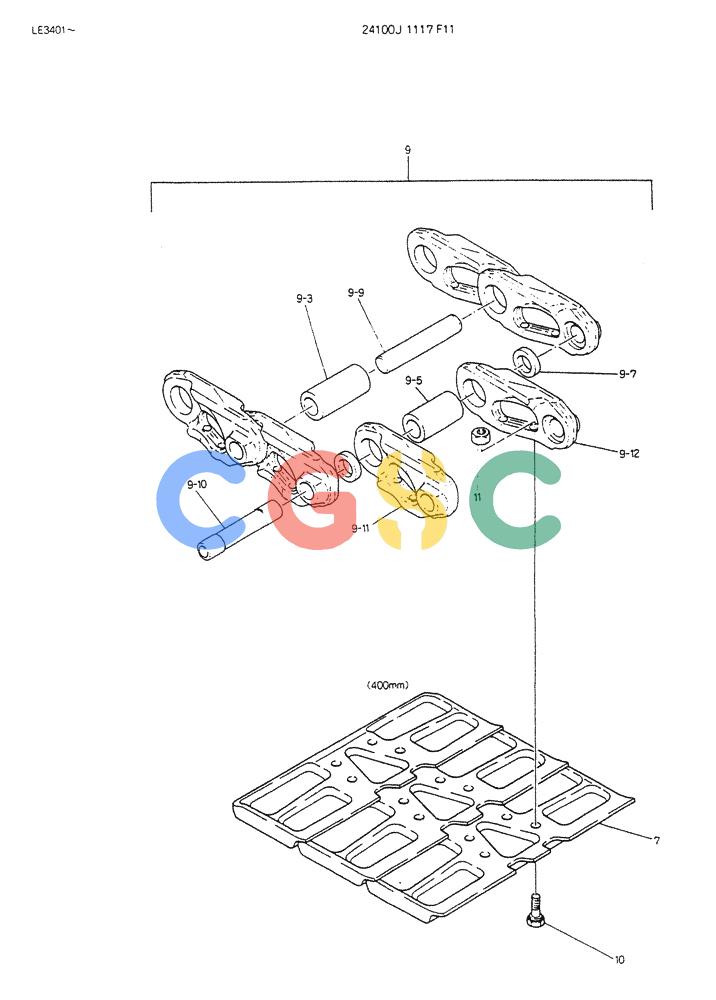

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100J1117F11 | [1] | INSTAL, CRAWLER | |
| 7. | 2424J104 | [84] | SHOE, FLAT | |
| 9. | 24100J1118F5 | [2] | CHAIN LINK | KOB |
| 9-3. | 2405P182 | [41] | BUSHING | KOBLE, Serial Range: 3401-LE4265 |
| . . | 2405P182C2 | [41] | BUSHING | KOB, Start Serial: LE4266- Superseded by part number: 2405P182 |
| 9-5. | 2405P183 | [1] | BUSHING | KOBLE, Serial Range: 3401-LE4265 Superseded by part number: YT62D01003P1 |
| . . | 2405P183C2 | [1] | BUSHING | KOB, Start Serial: LE4266- Superseded by part number: YT62D01003P1 |
| 9-7. | 2418T3592 | [2] | COLLAR | KOB |
| 9-9. | 2419P749C2 | [41] | PIN,TRACK LE, Serial Range: 3401-LE4265 | PIN,TRACK LE, Serial Range: 3401-LE4265 |
| 9-9. | 2419P749C3 | [41] | PIN | KOB, Start Serial: LE4266- |
| 9-13. | 2419P915C2 | [1] | PIN | KOB |
| 9-11. | 2424J159D1 | [42] | CHAIN | KOB Superseded by part number: 2406J162D1, 77254630 |
| 9-12. | 2424J159D2 | [42] | CHAIN | KOB Superseded by part number: 2406J162D2, 77254631 |
| 10. | 2420T3916 | [336] | SCREW | KOB |
| 11. | 2420T3917 | [336] | NUT | KOB |
