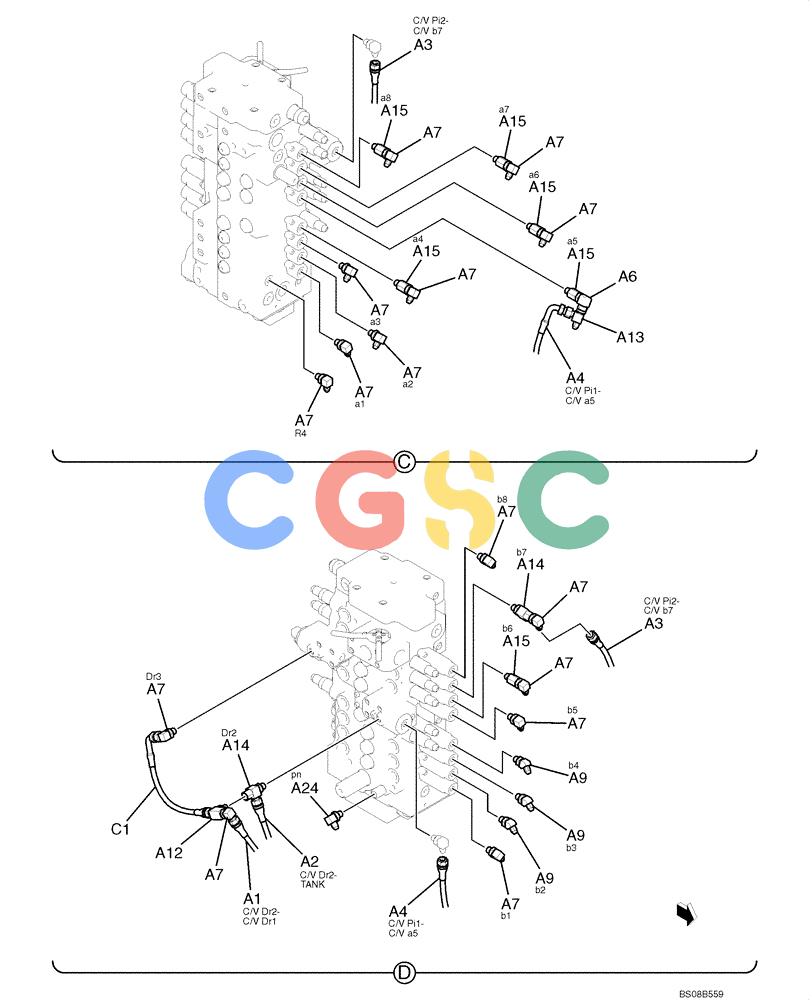

纽荷兰零件查询(E70BSR) - COMPACT CRAWLER EXCAVATOR BTW YT05-15001 - 18000 (NA) (4/08-) (02-29-00[02]) - CONTROL LINES, MAIN, PAGE 2 OF 2 New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
480 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| A1. | 2420R349D046 | [1] | FLEXIBLE HOSE | KOBHose -- 460mm Long (18-7/64 in) Superseded by part number: 2420R349D050 |
| A2. | 2420R349D110 | [1] | HOSE,1100.00 mm | KOB Superseded by part number: HX21E04110DX |
| A3. | 2420R349D125 | [1] | HOSE,1250.00 mm | KOB Superseded by part number: HX21E04125DX |
| A4. | 2444R963D38 | [1] | FLEXIBLE HOSE | KOB1100mm Long (43-19/64 in) |
| A6. | 2444Z2894 | [2] | 90 ELBOW | KOBElbow, 90° -- 1/4" PF (Incls. O-Ring ZD12P01100) |
| . . | ZD12P01100 | [1] | O-RING | KOB(Part of 2444Z2894), ID 10.80 ± 0.18 x OD 15mm, Not Shown |
| A7. | ZH32X04000 | [17] | 90 ELBOW,Male, 30° Fl, PF 1/4" x PF 1/4", O-Ring | KOBElbow, 90° -- (Incls. O-Ring 237-6004) |
| . . | 237-6004 | [1] | O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro | CAS(Part of ZH32X04000), SAE No. 4-1, Not Shown Superseded by part number: 72186131, 165202 |
| A9. | ZH42X04000 | [3] | 45 ELBOW,Male, 30° Fl, PF 1/4" x PF 1/4", O-Ring | KOBElbow, 45° -- (Incls. O-Ring 237-6004) |
| A12. | 2444T2529 | [1] | TEE | KOB1/4" PF x 50mm Long (Incls. O-Ring ZD12P01100) |
| A13. | 2444Z2336 | [1] | HYD CONNECTOR | KOBTee -- (Incls. O-Ring ZD12P01100) |
| A14. | 2444Z2461 | [2] | TEE | KOB1/4" PF (Incls. O-Ring ZD12P01100) |
| A15. | 2444Z2525 | [7] | HYD CONNECTOR | KOB1/4"PFx35mm Long (Incls. O-Ring ZD12P01100) |
| A24. | HH35X04004G3 | [1] | 90 ELBOW | KOB90° (with Filter) -- 1/4"PF (Incls. O-Ring ZD12P01100) |
| C1. | 2444R963D32 | [1] | HOSE | KOB300mm Long (11-13/16 in) |
