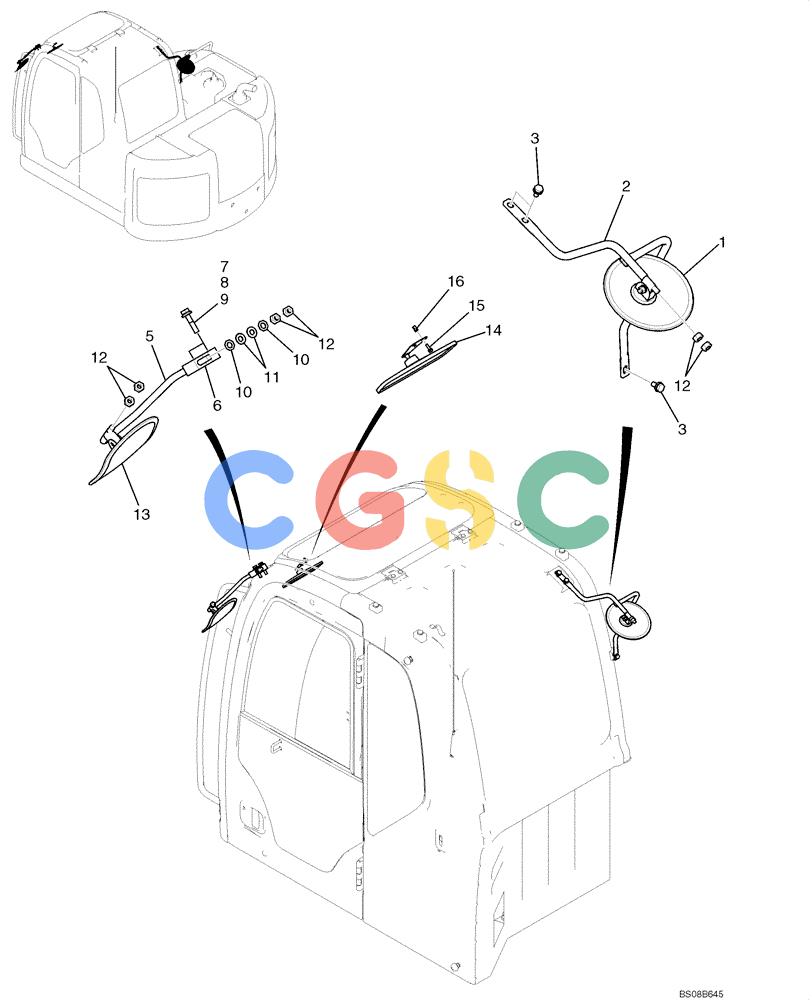

纽荷兰零件查询(E70BSR) - COMPACT CRAWLER EXCAVATOR BTW YT05-15001 - 18000 (NA) (4/08-) (02-35-00[00]) - MIRROR INSTALLATION (OPERATOR'S CAB) (YT52C00012F3) New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
462 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | YT52C00006P1 | [1] | MIRROR,210mm x 210mm | KOB |
| 2. | YT52C01070P1 | [1] | STAY | KOBStay |
| 3. | ZM73C10020 | [3] | BOLT,M10x20mm - Course Thread | KOBM10x1.50x20mm (Incls. Washer) |
| 5. | YT52C01023P1 | [1] | STAY | KOBStay |
| 6. | YN02C01762P1 | [1] | BRACKET | KOB |
| 7. | ZW16H10000 | [2] | WASHER | KOBID 11 x OD 24 x Th 3.2mm |
| 8. | ZW26X10000 | [2] | LOCK WASHER | KOBID 10 x OD 18 x Th 2.5mm |
| 9. | ZS18C10050 | [2] | SCREW,Hex, M10 x 50mm | KOBM10x1.50x50mm |
| 10. | ZW16X12000 | [2] | WASHER | KOBID 12 x OD 24 x Th 2.3mm |
| 11. | R16T0137D1 | [2] | WASHER | KOBCone Disk Spring -- ID 12.2 x OD 25 x Th 0.9mm |
| 12. | ZN18C12010 | [6] | NUT | KOBM12x1.75mm |
| 13. | PY02C01079P1 | [1] | MIRROR | KOBAssembly, Back |
| 14. | YN02C01121P1 | [1] | MIRROR | KOB |
| 15. | ZM46C05016 | [3] | BOLT,Phillip, M5 x 0.8 x 15mm | KOBM05x0.8x16mm (Incls. Washer & Lockwasher) |
| 16. | 2420R574D10 | [3] | NUT | KOB |
