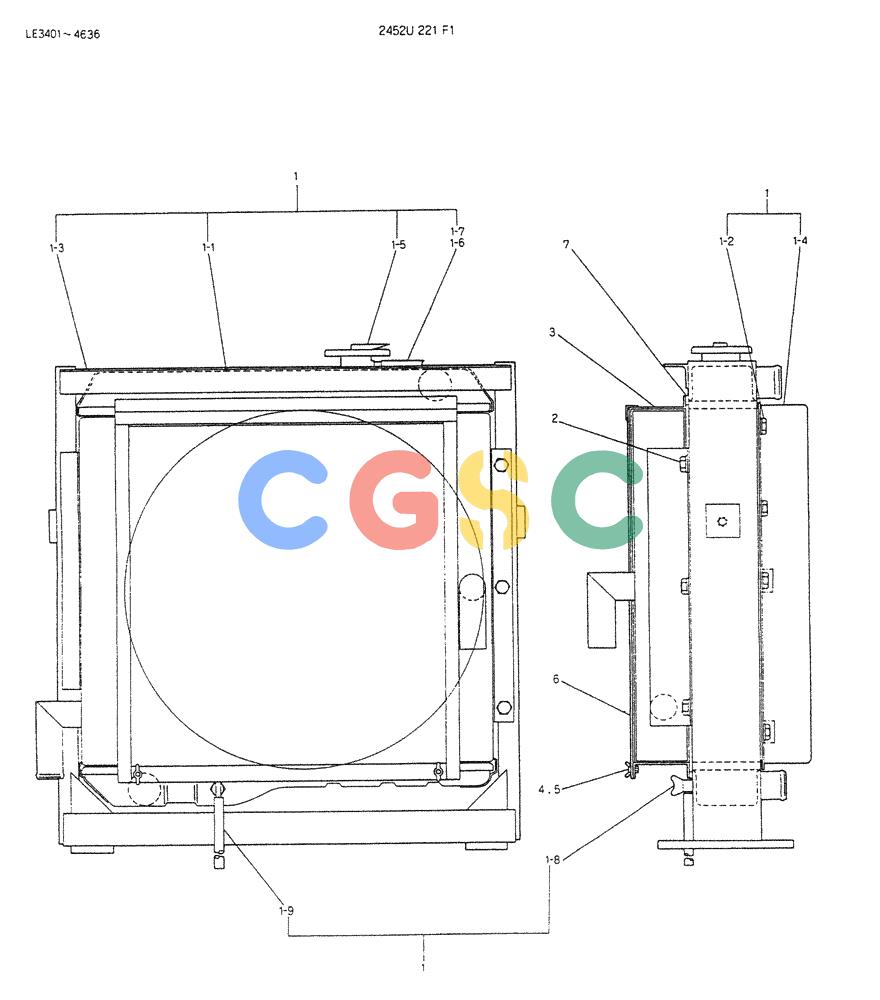

神钢零件查询(K903B) - EXCAVATOR ASN LE3401 (1/85-12/03) (08-006) - RADIATOR ASSY P/N 2452U221F1 Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
148 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 2452U221F1 | [1] | RADIATOR ASSY | |
| 1. | 2452U221S1 | [1] | RADIATOR | KOB |
| 1-1. | 2452U221S1-1 | [1] | RADIATOR | |
| 1-2. | 2452U221S1-2 | [8] | BOLT | KOB |
| 1-3. | 2452U221S1-3 | [1] | FRAME | |
| 1-4. | 2452U221S1-4 | [1] | SHROUD | |
| 1-5. | 2452U221S1-5 | [1] | CAP | CAP |
| 1-6. | 2452U221S1-6 | [1] | TUBE, VINY L | |
| 1-7. | 2452U136S8 | [2] | CLIP | |
| 1-8. | 2452U221S1-8 | [1] | COCK | KOB Superseded by part number: 2452U221S18 |
| 1-9. | 2452U221S1-9 | [1] | TUBE, VINYL | |
| 2. | 2452U221S2 | [5] | BOLT | BOLT |
| 3. | 2452U221S3 | [1] | COOLER | COOLER |
| 4. | 2452U221S4 | [2] | SCREW | KOB, Serial Range: LE3401-LE4588 Superseded by part number: 2452U202S5 |
| 5. | 2452U221S5 | [2] | WASHER | KOBLOCK, Serial Range: LE3401-LE4588 |
| 6. | 2452U221S6 | [1] | METAL, EXPANDED, Serial Range: LE3401-LE4588 | METAL, EXPANDED, Serial Range: LE3401-LE4588 |
| 7. | 2452U221S7 | [2] | PACKING | PACKING |
