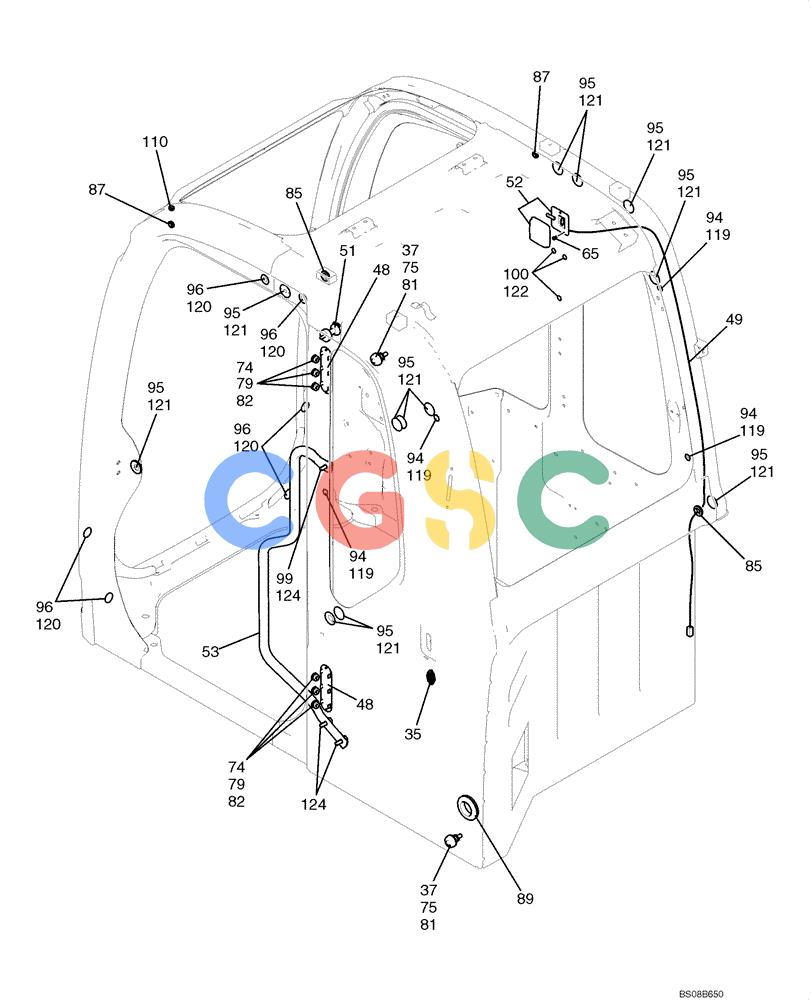

纽荷兰零件查询(E70BSR) - COMPACT CRAWLER EXCAVATOR BTW YT05-15001 - 18000 (NA) (4/08-) (02-39-00[04]) - CAB ASSEMBLY (GRAYISH BLACK) (YT02C00044F2), PAGE 4 OF 4 New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
813 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 35. | YT02C01207P1 | [1] | SPRING | KOB |
| 37. | YN02C01823P1 | [2] | STOP | KOB |
| 48. | YT02C01129P1 | [2] | COVER | KOB |
| 49. | YN02C03098P1 | [1] | HARNESS | KOB |
| 51. | YT02C01134P1 | [1] | HOOK | KOB |
| 52. | YT80S00001P1 | [1] | LIGHT | KOBRoom Superseded by part number: 2456Z322F1 |
| 53. | YB02C01206P1 | [1] | TUBE | KOB |
| 65. | ZS31C05010 | [4] | BOLT,Phillips Drive, Pan HD, M5 x 10mm | KOBMachine -- M05x0.8x10mm |
| 74. | ZN13C10008 | [6] | NUT | KOBM10x1.50mm Superseded by part number: ZN18C10008 |
| 75. | ZN18F10008 | [4] | NUT | KOBM10x1.25mm |
| 79. | ZW11X10000 | [6] | WASHER | KOBID 10 x OD 21 x Th 2.0mm Superseded by part number: ZW16X10000 |
| 81. | ZW16X10000 | [4] | WASHER | KOBID 10 x OD 21 x Th 2.0mm |
| 82. | ZW22X10000 | [6] | LOCK WASHER | KOBID 10 x OD 18.4 x Th 2.5mm Superseded by part number: ZW26X10000 |
| 85. | 2420R372D14 | [2] | GROMMET | KOB |
| 87. | 2420R372D8 | [2] | GROMMET | KOB |
| 89. | YT02C01235P1 | [1] | GROMMET | KOB |
| 94. | YT02C01567D1 | [6] | PLATE | KOB(Grayish Black) |
| 95. | YT02C01567D3 | [13] | PLATE | KOB(Grayish Black) |
| 96. | YT02C01567D2 | [6] | PLATE | KOB(Grayish Black) |
| 99. | YT02C01233P1 | [1] | CAP | KOB |
| 100. | YT02C01567D4 | [3] | PLATE | KOB(Grayish Black) |
| 110. | 2420R372D7 | [1] | GROMMET | KOB |
| 119. | YT02C01261D1 | [6] | PLATE | KOB(Grayish Black) |
| 120. | YT02C01261D2 | [6] | PLATE | KOB(Grayish Black) |
| 121. | YT02C01261D3 | [13] | PLATE | KOB(Grayish Black) |
| 122. | YT02C01261D4 | [3] | PLATE | KOB(Grayish Black) |
| 124. | ZM27C10030 | [3] | SCREW | KOBM10x1.50x30mm (Incls. Washer & Lockwasher) |
