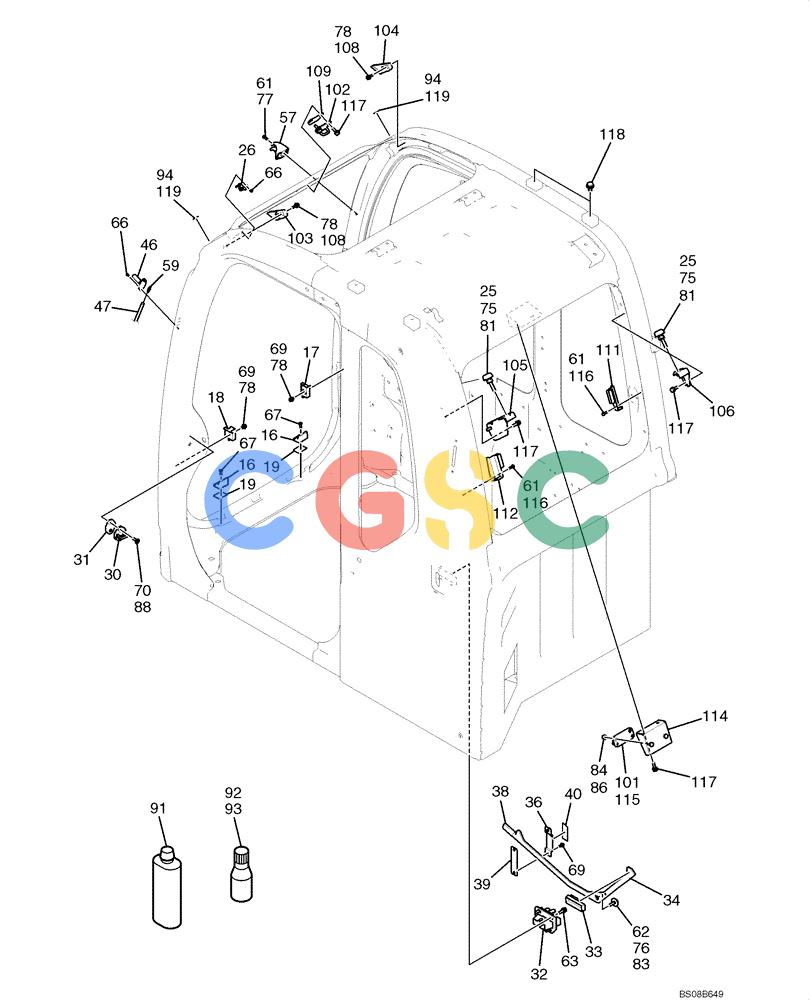

纽荷兰零件查询(E70BSR) - COMPACT CRAWLER EXCAVATOR BTW YT05-15001 - 18000 (NA) (4/08-) (02-39-00[03]) - CAB ASSEMBLY (GRAYISH BLACK) (YT02C00044F2), PAGE 3 OF 4 New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
281 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 16. | YN02C03887P1 | [2] | STOP | SM |
| 17. | YN02C02747P1 | [1] | GUIDE | KOB |
| 18. | YN02C02746P1 | [1] | GUIDE | KOB |
| 19. | YN02C03005P1 | [4] | SPACER | KOB |
| 25. | YT02C01066P1 | [2] | STOP | KOB |
| 26. | YT50S00004P1 | [1] | SWITCH | KOB |
| 30. | YB51C01008P1 | [1] | HOOK | KOB |
| 31. | YT51C01077D1 | [1] | SPACER | KOB |
| 32. | YT02C01109F1 | [1] | CATCH | KOBAssembly, Door Superseded by part number: YN02C04422F1 |
| 33. | YT02C01124P1 | [1] | COVER | KOB |
| 34. | YN02C02117P2 | [1] | LEVER | KOB |
| 36. | YT02C01276P1 | [1] | COVER | KOB |
| 38. | YT02C01274P1 | [1] | COVER | KOB |
| 39. | YT02C01280P1 | [1] | SPACER | KOB |
| 40. | YT02C01275P1 | [1] | LABEL | KOB |
| 46. | YT54C00001P1 | [1] | WINDSHIELD WASHER | KOBAssembly, Window |
| 47. | YT02C01126D1 | [1] | TUBE | KOBTube -- 3500mm Long (137-51/64 in) |
| 57. | YN02C01294P1 | [1] | STOP | KOB |
| 59. | PY21V01001P1 | [1] | CHECK VALVE | KOB |
| 61. | 2420Z1227D4 | [3] | SCREW | KOBMachine -- M06x1.0x20mm |
| 62. | ZS18C08030 | [1] | SCREW,Hex, M8 x 30mm | KOBM08x1.25x30mm |
| 63. | ZM22C08025 | [4] | BOLT | KOBM08x1.25x25mm (Incls. Washer & Lockwasher) |
| 66. | ZS32T40012 | [4] | SCREW | KOBM04x12mm Self-Taper |
| 67. | ZS41C06020 | [2] | SCREW,M6 x 20mm | KOBMachine -- M06x1.0x20mm |
| 69. | ZM66C06016 | [18] | BOLT | KOBM06x1.0x16mm (Incls. Washer & Lockwasher) |
| 70. | ZS68C08025 | [2] | SCREW,Pan, M4 x 12mm | KOBScrew -- M08x1.25x25mm |
| 75. | ZN18F10008 | [4] | NUT | KOBM10x1.25mm |
| 76. | 2418T12753 | [1] | WASHER | KOBID 09 x OD 30 x Th 3.2mm |
| 77. | 2418Z725D3 | [1] | WASHER | KOBID 06 x OD 11.5 x Th 1.6mm |
| 78. | 2420T4505 | [6] | WASHER,7mm ID x 16mm OD x 1mm Thk | KOBID 07 x OD 16 x Th 1.0mm |
| 81. | ZW16X10000 | [4] | WASHER | KOBID 10 x OD 21 x Th 2.0mm |
| 83. | ZW26X08000 | [1] | LOCK WASHER | KOBLock -- ID 08 x OD 15 x Th 2.0mm Superseded by part number: 83990583 |
| 84. | ZN18C08007 | [2] | NUT | KOBM08x1.25mm |
| 86. | ZW16X08000 | [2] | WASHER | KOBID 08 x OD 17 x Th 1.6mm |
| 88. | YT02C01229P1 | [2] | WASHER | KOBStar Lock -- ID 08.40 ± 0.30 x OD 16 x Th 0.6mm |
| 91. | YR01T01005P1 | [1] | ADHESIVE | KOB Superseded by part number: YN01T01067P1 |
| 92. | YR09T00002P1 | [1] | PAINT | KOB(25g) Superseded by part number: YN09T00009P1 |
| 93. | YR09T00003P1 | [1] | PAINT | KOB(25g) |
| 94. | YT02C01567D1 | [6] | PLATE | KOB(Grayish Black) |
| 101. | YN02C03056P1 | [1] | STRIKER PLATE | KOBStriker |
| 102. | YN02C03055P1 | [1] | STRIKER | KOBStriker |
| 103. | YN02C03095P2 | [1] | STOP | KOB |
| 104. | YN02C03094P2 | [1] | STOP | KOB |
| 105. | YN02C03077P1 | [1] | PLATE | KOBBracket |
| 106. | YN02C03075P1 | [1] | PLATE | KOBBracket |
| 108. | ZM66C06025 | [4] | BOLT | KOBM06x1.0x25mm (Incls. Washer & Lockwasher) |
| 109. | YN02C03039P1 | [1] | SPACER | KOB |
| 111. | YN02C03047P2 | [1] | BRACKET | KOB |
| 112. | YN02C03048P2 | [1] | BRACKET | KOB |
| 114. | YB02C01084P1 | [1] | BRACKET | KOB |
| 115. | YN02C03040P1 | [1] | SPACER | KOB |
| 116. | HY25X09017G1 | [2] | WASHER | KOBID 09 x OD 17 x Th 1.60mm |
| 117. | ZM27C08025 | [8] | BOLT | KOBM08x1.25x25mm (Incls. Washer & Lockwasher) |
| 118. | ZM73C12020 | [4] | BOLT,M12x20mm - Course Thread | KOBM12x1.75x20mm (Incls. Washer) |
| 119. | YT02C01261D1 | [6] | PLATE | KOB(Grayish Black) |
