神钢零件查询(K903B) - EXCAVATOR ASN LE3401 (1/85-12/03) (08-009) - MUFFLER ASSY Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
876 次

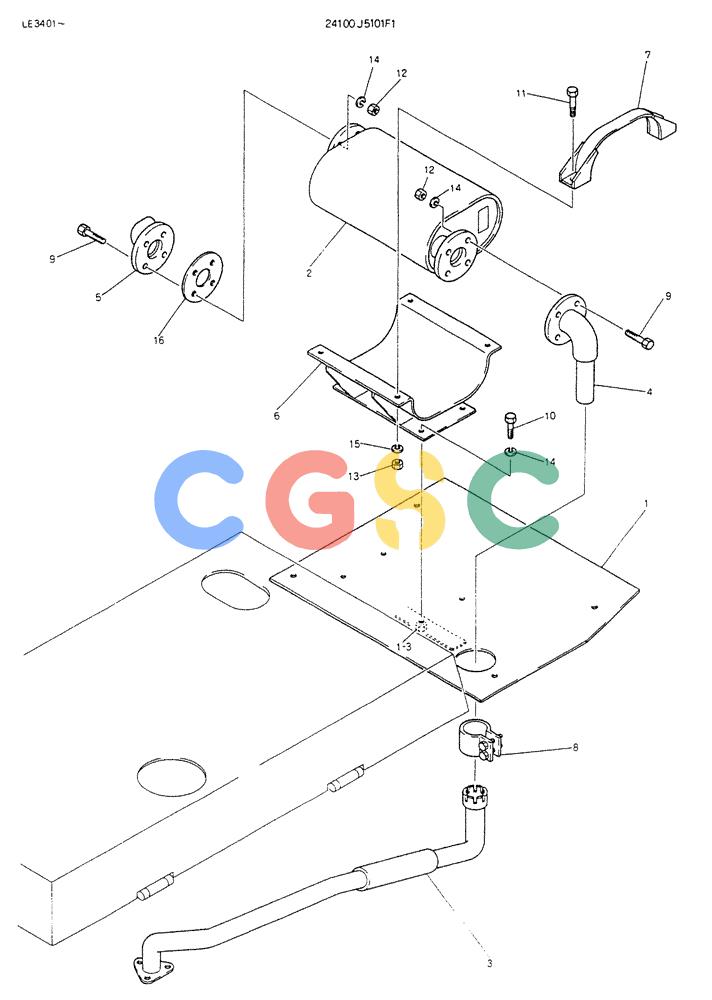

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100J5101F1 | [1] | MUFFLER ASSY | |
| 1. | 2414P3899 | [1] | COVER | |
| 1-3. | ZN11C12010 | [4] | NUT | KOBM12x1.75mm Superseded by part number: ZN18C12010 |
| 2. | 2427U309 | [1] | MUFFLER | MUFFLER |
| 3. | 2418P9924 | [1] | PIPE | PIPE |
| 4. | 2418T10909 | [1] | PIPE | |
| 5. | 2418T10907 | [1] | FLANGE | |
| 6. | 2416P7296 | [1] | BRACKET | |
| 7. | 2432T1817 | [2] | CLAMP | |
| 8. | 2432T812F1 | [1] | CLAMP | KOB |
| 9. | ZS13C12045 | [8] | SCREW | KOBM12x1.75x45mm Superseded by part number: ZS18C12045 |
| 10. | ZS13C12030 | [4] | CAPSCREW | KOBSCREW M12x1.75x30mm Superseded by part number: ZS18C12030 |
| 11. | ZS13C10025 | [4] | CAPSCREW | KOBSCREW M10x1.50x25mm Superseded by part number: ZS18C10025 |
| 12. | ZN12C12010 | [8] | NUT | KOBM12x1.75mm Superseded by part number: ZN18C12010 |
| 13. | ZN12C10008 | [4] | NUT | KOBM10x1.50mm Superseded by part number: ZN18C10008 |
| 14. | ZW26X12000 | [12] | LOCK WASHER | KOBID 12 x OD 21 x Th 3.0mm |
| 15. | ZW26X10000 | [4] | LOCK WASHER | KOBID 10 x OD 18 x Th 2.5mm |
| 16. | 2418Z702 | [2] | PACKING | KOB |
