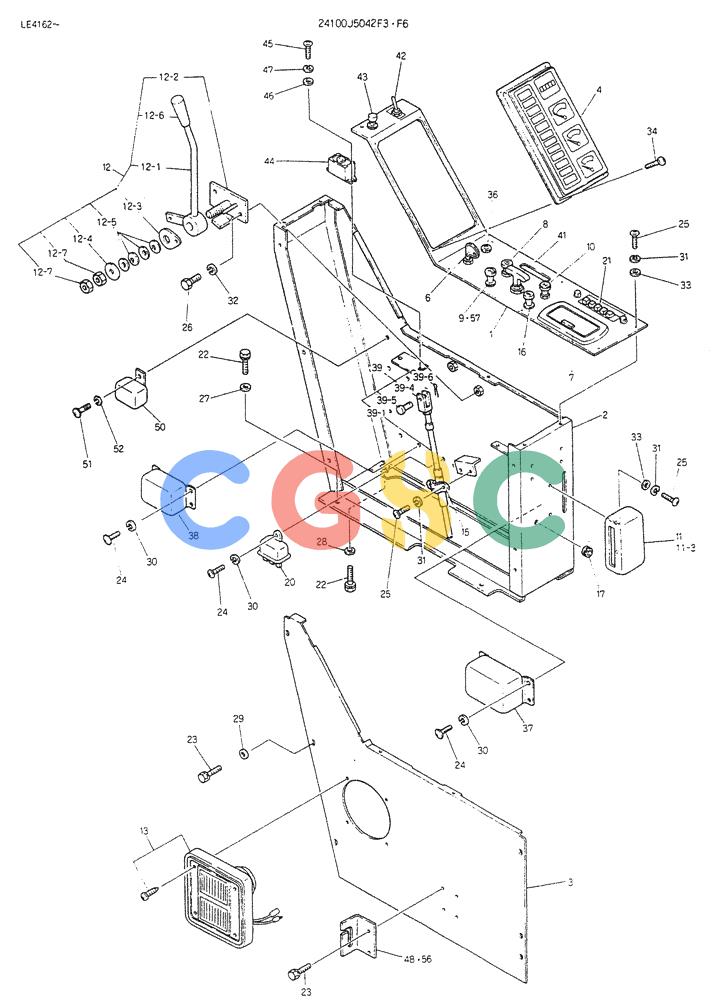

| . . | 24100J5042F3 | [1] | PANEL ASSY, INST, Serial Range: LE4162-LE45498 | |
| . . | 24100J5042F6 | [1] | PANEL ASSY, INST, Start Serial: LE5499- | |
| 1. | 2416N2790 | [1] | PANEL, INSTRUMENT | PANEL, INSTRUMENT |
| 2. | 2416J784 | [1] | BRACKET | |
| 3. | 2416N2799 | [1] | BRACKET | |
| 4. | 2479U301F1 | [1] | GAUGE | KOB |
| 7. | R27P0008 | [1] | ASH TRAY | KOB |
| 8. | 2479R676 | [1] | SWITCH | KOB |
| 9. | R79T0001 | [1] | SWITCH | KOB, Serial Range: LE4162-LE45498 |
| 10. | R79T0058 | [1] | SWITCH | KOB |
| 11. | 2479R243F1 | [1] | FUSE BOX | KOB |
| 11-3. | 2479R243S1 | [7] | FUSE | KOB15 Amp |
| 12. | 24100P376F5 | [1] | LEVER ASSY | LEVER ASSY |
| 12-1. | 2406P1125 | [1] | LEVER | LEVER |
| 12-2. | B16P0275 | [1] | BRACKET | KOB |
| 12-3. | R16T0076 | [1] | WASHER | KOB |
| 12-4. | R16T0040 | [1] | WASHER | KOB Superseded by part number: 2418T12345, 77266155 |
| 12-5. | R16T0137D2 | [4] | WASHER | KOBCone Disk Spring -- ID 12.2 x OD 25 x Th 1.6mm |
| 12-6. | 2406T971 | [1] | GRIP | KOB |
| 12-7. | ZN11C12007 | [2] | NUT | KOBM12x1.75mm Superseded by part number: ZN18C12007 |
| 13. | 2479U244 | [1] | SPEAKER | KOB |
| 15. | R16T0402D1 | [1] | CLAMP | KOB |
| 16. | 2479Z214 | [1] | CIGARETTE LIGHTER | KOB |
| 17. | R16T0063D3 | [1] | GROMMET | KOB |
| 20. | 4079Z22 | [1] | RELAY | KOB |
| 21. | 2479U253D2 | [1] | RADIO | KOB |
| 22. | ZM11C10025 | [4] | BOLT | KOBM10x1.50x25mm (Incls. Lockwasher) Superseded by part number: ZM12C10025 |
| 23. | ZM11C06012 | [8] | SCREW | KOB |
| 24. | ZS31C06012 | [7] | SCREW,Phillips Drive, Pan HD, M6 x 12mm | KOBM06x1.0x12mm |
| 25. | ZS31C05016 | [12] | BOLT,Phillips Drive, Pan HD, M5 x 16mm | KOBM05x0.8x16mm |
| 26. | ZS16C12020 | [2] | KEY | KOBM12x1.75x20mm Superseded by part number: ZS18C12020 |
| 27. | ZW16X10000 | [3] | WASHER | KOBID 10 x OD 21 x Th 2.0mm |
| 28. | 2418T5373C2 | [2] | WASHER | KOBID 11 x OD 30 x Th 3.20mm Superseded by part number: 2418T12346 |
| 29. | ZW16X06000 | [6] | WASHER | KOBID 06 x OD 12.5 x Th 1.6mm Superseded by part number: 86588450 |
| 30. | ZW26X06000 | [7] | LOCK WASHER | KOBID 06 x OD 07 x Th 1.5mm |
| 31. | ZW26X05000 | [12] | LOCK WASHER | KOBLock -- ID 05 x OD 09 x Th 1.3mm |
| 32. | ZW26X12000 | [2] | LOCK WASHER | KOBID 12 x OD 21 x Th 3.0mm |
| 33. | ZW16K05000 | [10] | WASHER | KOBID 05 x OD 10 x Th 1.0mm |
| 34. | ZS4U06025 | [4] | MACHINESCREW | |
| 39. | R06P0039D5F1 | [1] | FLEXIBLE CABLE | KOB |
| 39-1. | R06P0039 | [1] | CABLE, CONTROL | CABLE, CONTROL |
| 35-4. | R06T0042P1 | [1] | ROD-END | |
| 39-5. | B19T0175 | [1] | PIN | KOB |
| 39-6. | ZP15K01210 | [1] | LOCK PIN | KOB |
| 41. | 2430R157D14 | [1] | WIRE HARNESS | KOBCABLE ASSY, STOP |
| 42. | 2479Z849 | [1] | SWITCH | KOB Superseded by part number: 2479Z514 |
| 43. | 2479Z875 | [1] | SWITCH | KOB |
| 44. | 2479Z699D8 | [1] | BUZZER | KOB |
| 45. | ZS31C04010 | [2] | SCREW,Phillips Drive, Pan HD, M4 x 10mm | KOBM04x0.7x10mm |
| 46. | ZW16K04000 | [2] | WASHER | KOBID 04 x OD 08 x Th 0.8mm |
| 47. | ZW26X04000 | [2] | LOCK WASHER | KOBID 04 x OD 7.6 x Th 1.0mm |
| 48. | 2416T11002 | [1] | BRACKET(56), Serial Range: LE4162-LE5498 | |
| 50. | 2489U178 | [1] | DIPSTICK | KOB |
| 51. | ZS31C08012 | [1] | SCREW,Phillips Drive, Pan HD, M8 x 12mm | KOBM08x1.25x12mm |
| 52. | ZW26X08000 | [1] | LOCK WASHER | KOBLock -- ID 08 x OD 15 x Th 2.0mm Superseded by part number: 83990583 |
| 56. | 2416T13213 | [1] | BRACKET, Start Serial: LE5499- | |
| 57. | 2479Z974 | [1] | SWITCH, Start Serial: LE5499- | |
| 6. | VI98271022700 | [1] | STARTER SWICH, ISUZU ENGINE PARTS | |
| 36. | VI98253010800 | [1] | RESISTOR | KOBRESISTANCE CONTROL, ISUZU ENGINE PARTS Superseded by part number: VI9825301080 |
| 37. | VI98342004700 | [1] | SAFETY RELAY, ISUZU ENGINE PARTS | |
| 38. | VI18125102600 | [1] | REGULATER, ISUZU ENGINE PARTS | |
