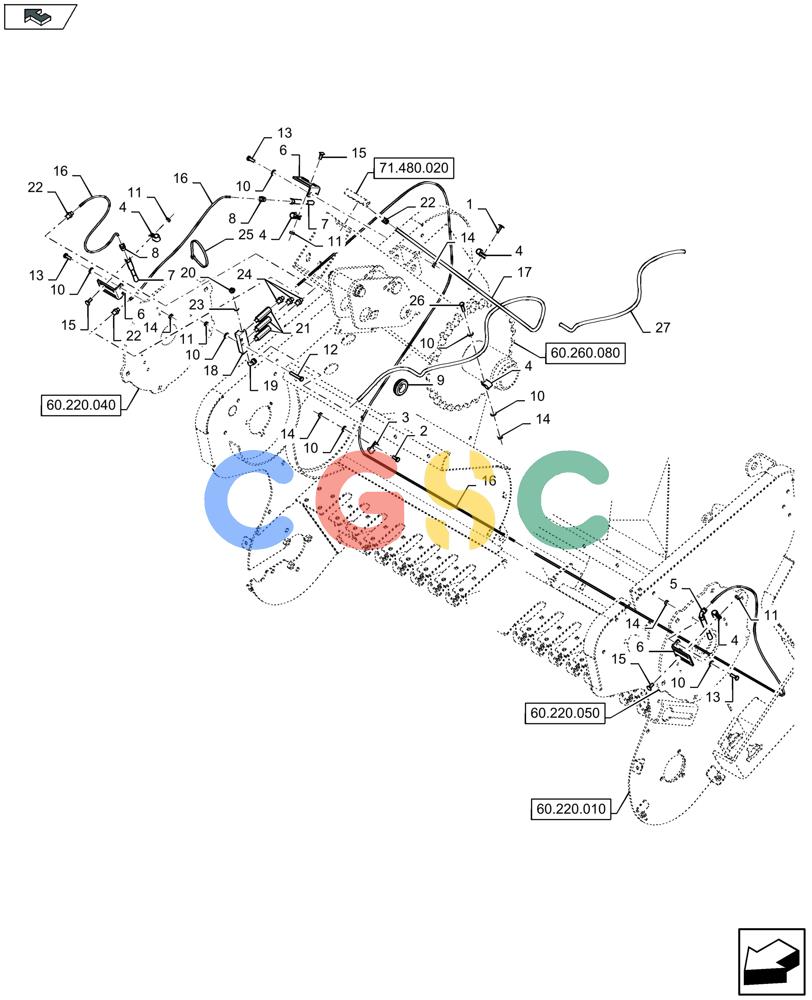

凯斯零件查询(LB424R) - BALER (9/12-) (71.480.010) - AUTOMATIC OILING Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
355 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
9512290
|
[4] |
RIVET,Pop, 4.8mm OD x 17.8mm L
|
ZED
|
| 2. |
86508568
|
[2] |
BOLT,Hex, M6 x 1 x 16mm, Cl 8.8
|
NH
|
| 3. |
675162
|
[2] |
WIRE CLAMP,6.3mm, Coat, 10.3mm Bolt Hole, P Type
|
NH
|
| 4. |
335021
|
[7] |
CLAMP,12mm ID, 6.4mm Bolt Hole, P Type
|
ZED
, Serial Range: -C027
|
| 5. |
84818517
|
[1] |
BRUSH
|
ZED
|
| 6. |
84534394
|
[3] |
SUPPORT
|
ZED
|
| 7. |
84416165
|
[2] |
BRUSH
|
ZED
, Serial Range: -C027
|
| 8. |
84416166
|
[2] |
HYD CONNECTOR
|
ZED
|
| 9. |
173011
|
[1] |
GROMMET,1” ID x 1.750” OD x .500” Tk
|
NH
, Serial Range: -C027
|
| 10. |
322357
|
[9] |
BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk
|
NH
, Serial Range: -C027
|
| 11. |
412152
|
[5] |
NUT,M6 x 1, Cl 8.8
|
ZED
|
| 12. |
43118
|
[2] |
BOLT,Hex, M6 x 1.0 x 40mm, Cl 8.8
|
NH
Superseded by part number: 120102
|
| 13. |
120100
|
[6] |
BOLT,M6 x 20mm, Cl 8.8
|
NH
|
| 14. |
9706755
|
[7] |
NUT,M6, Cl 8
|
NH
, Serial Range: -C027 Superseded by part number: 86500688
|
| 15. |
86512439
|
[3] |
CARRIAGE BOLT,M6 x 16mm, Cl 8.8
|
NH
|
| 16. |
47910681
|
[1] |
HOSE
|
ZED
Hose, D = 4 MM
|
| 17. |
47911121
|
[1] |
Hose, D = 8 MM
|
HYDRAULIC HOSE
|
| 18. |
84818521
|
[1] |
MANIFOLD
|
ZED
|
| 19. |
84819098
|
[1] |
HYD CONNECTOR
|
ZED
|
| 20. |
84807296
|
[1] |
PLUG
|
ZED
|
| 21. |
84818522
|
[3] |
REDUCER
|
ZED
|
| 22. |
84819097
|
[1] |
HYD CONNECTOR
|
ZED
|
| 23. |
9832305
|
[1] |
WASHER,10mm ID x 14mm OD x 1.5mm Thk
|
ZED
, Start Serial: D028
|
| 24. |
84807243
|
[3] |
HYD CONNECTOR
|
ZED
|
| 25. |
86566990
|
[2] |
CABLE TIE,292mm OAL x 4.8mm W
|
ZED
, Start Serial: D028
|
| 26. |
86977786
|
[2] |
BOLT,Hex, M6 x 1 x 25mm, Cl 8.8
|
GI
, Start Serial: D028
|
| 27. |
9507815
|
[1] |
CONDUIT
|
CUR
|
