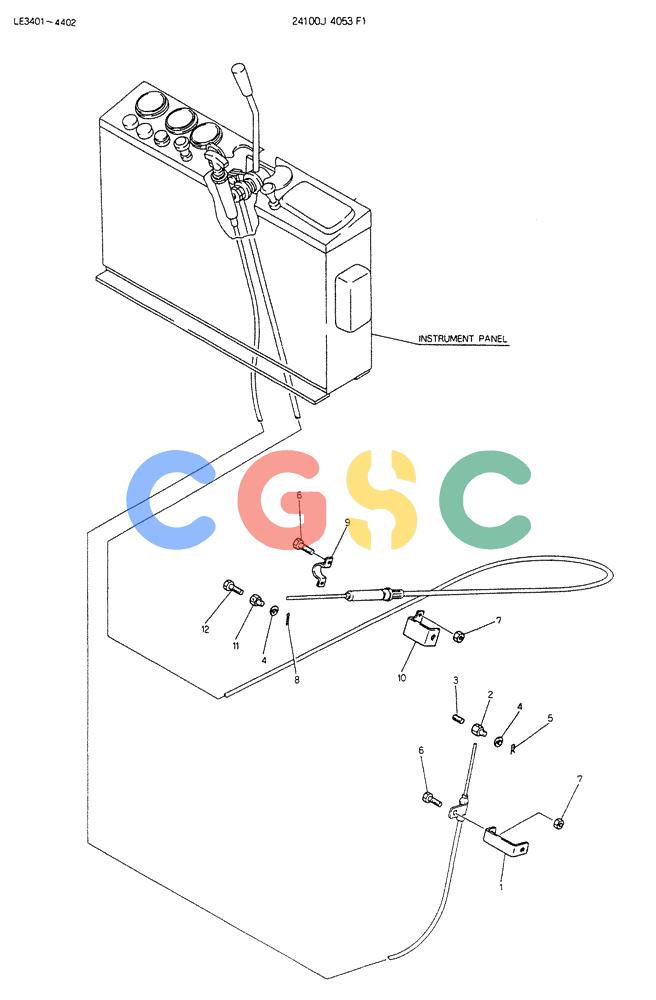

神钢零件查询(K903B) - EXCAVATOR ASN LE3401 (1/85-12/03) (08-020) - CONTROL ASSY, ENGINE P/N 24100J4053F1 Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
820 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100J4053F1 | [1] | CONTROL ASSY, ENGINE | |
| 1. | 2416T6846 | [1] | BRACKET | |
| 2. | B06T0002 | [1] | RETAINING WIRE | KOB |
| 3. | ZS83C06008 | [1] | SCREW | KOB |
| 4. | ZW16X06000 | [3] | WASHER | KOBID 06 x OD 12.5 x Th 1.6mm Superseded by part number: 86588450 |
| 5. | 2419R9D1 | [1] | COTTER PIN | KOBOD 06mm x 21.2mm Long |
| 6. | ZM11C06014 | [3] | SCREW | KOB |
| 7. | ZN16C06005 | [3] | NUT | KOBM06x1.0mm Superseded by part number: ZN18C06005 |
| 8. | ZP15K02020 | [1] | SPLIT PIN | KOB |
| 9. | R16T0403 | [1] | CLAMP | KOB |
| 10. | 2416T8949 | [1] | BRACKET, Serial Range: LE3401-LE4024 | |
| . . | 2416T11015 | [1] | BRACKET, Start Serial: LE4025- | |
| 11. | B06T0006 | [1] | LOCK | HIT |
| 12. | ZS16C06010 | [1] | CAPSCREW M06x1.0x10mm | CAPSCREW M06x1.0x10mm |
