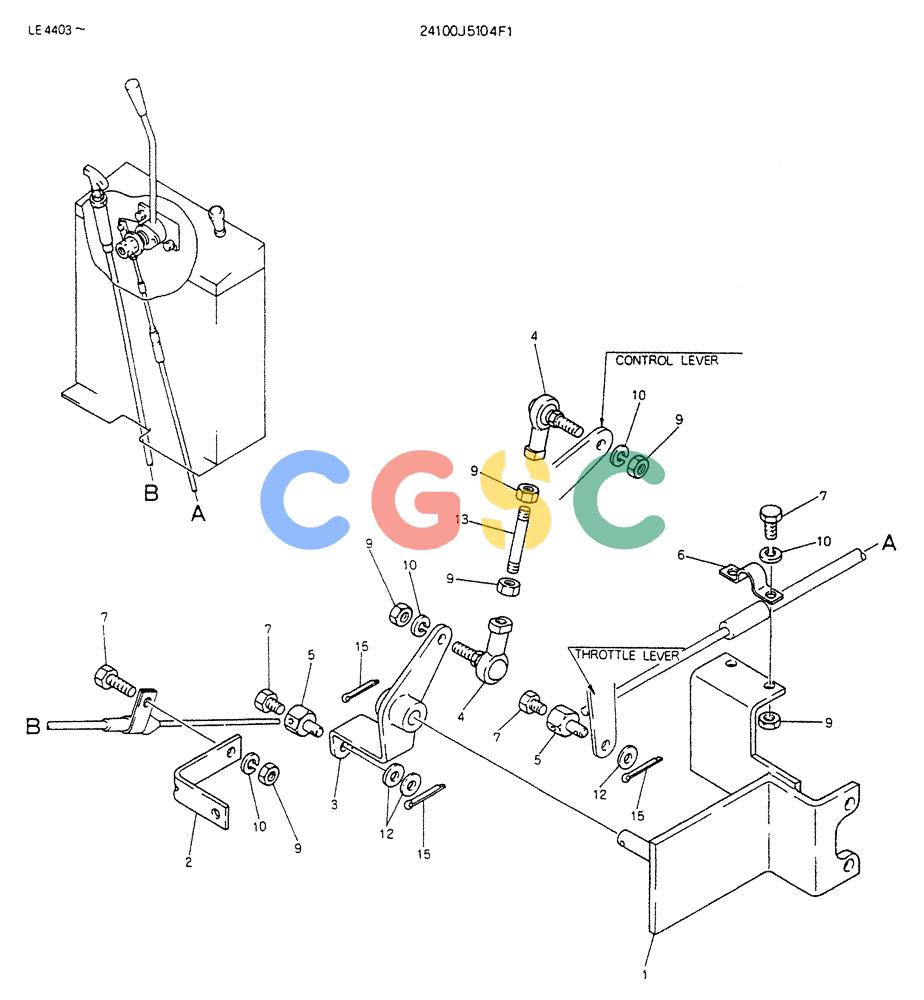

神钢零件查询(K903B) - EXCAVATOR ASN LE3401 (1/85-12/03) (08-021) - CONTROL ASSY, ENGINE P/N 24100J5104F1 Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
190 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100J5104F1 | [1] | CONTROL ASSY,ENGINE | |
| 1. | 2416P7294 | [1] | BRACKET | |
| 2. | 2416T11065 | [1] | BRACKET | BRACKET |
| 3. | 2406T1688 | [1] | LEVER | LEVER |
| 4. | 2406Z300D2 | [2] | ROD | KOB |
| 5. | B06T0006 | [2] | LOCK | HIT |
| 6. | R16T0403 | [1] | CLAMP | KOB |
| 7. | ZS16C06014 | [5] | SCREW | KOBM06x1.0x16mm Superseded by part number: ZS18C06014 |
| 9. | ZN16C06005 | [7] | NUT | KOBM06x1.0mm Superseded by part number: ZN18C06005 |
| 10. | ZW26X06000 | [5] | LOCK WASHER | KOBID 06 x OD 07 x Th 1.5mm |
| 12. | ZW16X06000 | [3] | WASHER | KOBID 06 x OD 12.5 x Th 1.6mm Superseded by part number: 86588450 |
| 13. | 2420T4428D2 | [1] | STUD-BOLT | |
| 15. | ZP15K02020 | [3] | SPLIT PIN | KOB |
