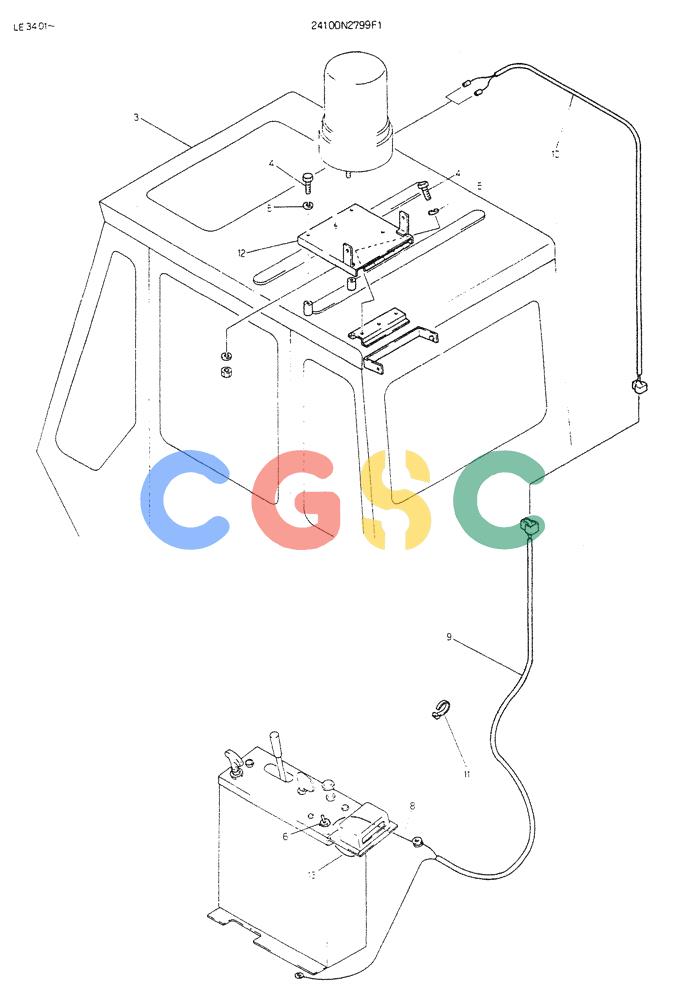

神钢零件查询(K903B) - EXCAVATOR ASN LE3401 (1/85-12/03) (08-029) - LIGHT, ROTARY (FOR EXPORT) P/N 24100N2799F1 Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
321 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100N2799F1 | [1] | LIGHT ASSY LIGHT, ROTARY | LIGHT ASSY LIGHT, ROTARY |
| 3. | 2427P1808 | [1] | CAB | |
| 4. | ZS11C08016 | [5] | CAPSCREW,Hex, M8 x 16mm, Cl 4.8 | KOBSCREW M08x1.25x16mm Superseded by part number: ZS18C08016 |
| 5. | ZW22X08000 | [5] | LOCK WASHER | KOBID 08 x OD 15.4 x Th 2.0mm Superseded by part number: 83990583 |
| 6. | 2479Z849 | [1] | SWITCH | KOBTOGGLE Superseded by part number: 2479Z514 |
| 8. | 2479Z869D4 | [1] | HARNESS | HARNESS |
| 9. | 2479Z887 | [1] | HARNESS | HARNESS |
| 10. | 2479Z888 | [1] | HARNESS | |
| 11. | 2432Z290D3 | [5] | CLIP | KOBWire Ties -- 154mm Long Superseded by part number: PY01P01043D3 |
| 12. | 2416P7279 | [1] | SUPPORT | |
| 13. | 2479Z851 | [1] | HARNESS | |
