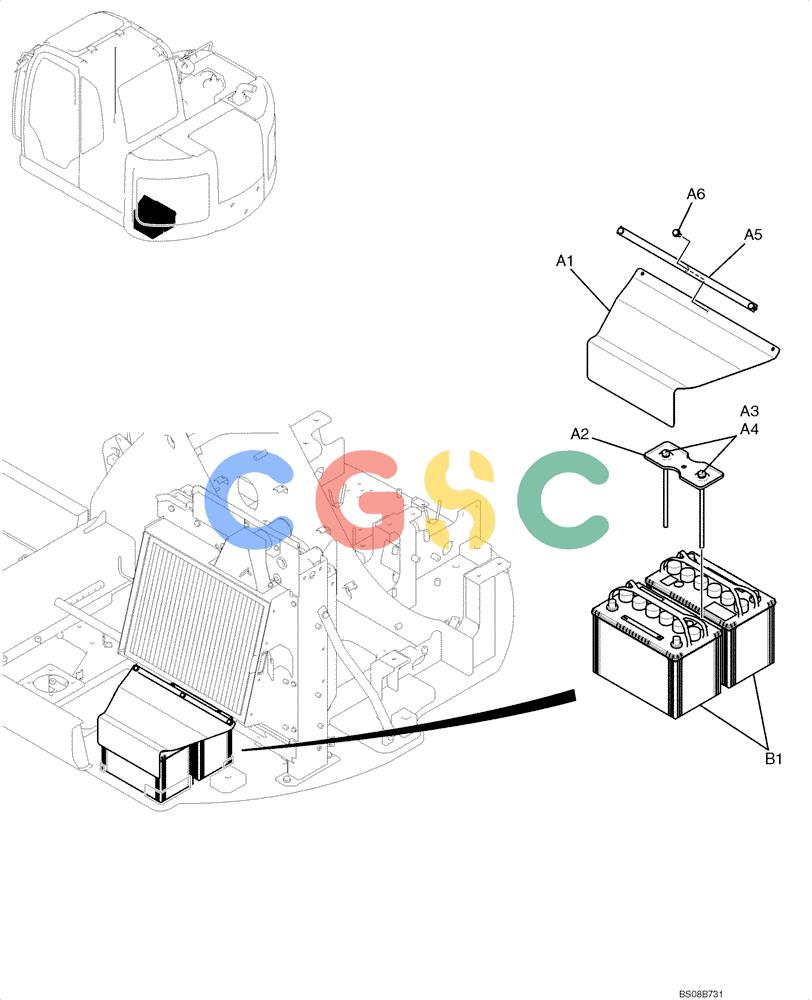

纽荷兰零件查询(E70BSR) - COMPACT CRAWLER EXCAVATOR BTW YT05-15001 - 18000 (NA) (4/08-) (02-58-00[00]) - BATTERY ASSEMBLY (YT72E00003F1) New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
126 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| A1. | YT72E01005P1 | [1] | COVER | KOBCover |
| A2. | 2418P5535 | [1] | PLATE | KOB |
| A3. | YT72E01003D1 | [2] | CAPSCREW | KOBSCREW |
| A4. | ZW26X10000 | [2] | LOCK WASHER | KOBID 10 x OD 18 x Th 2.5mm |
| A5. | YT72E01006P1 | [1] | PLATE | KOBPlate |
| A6. | ZM73C08020 | [3] | BOLT,M8x20mm - Course Thread | KOBM08x1.25x20mm (Incls. Washer) |
| B1. | PW72S00004P1 | [2] | WET BATTERY | KOBBattery, Purchase Locally 115E41R |
| B1. | F565DSW | [2] | WET BATTERY,12V, 700CCA | MKTNew Holland |
| B1. | B27F72W | [2] | WET BATTERY | IHCase USA |
| B1. | CC27F72W | [2] | WET BATTERY | MKTCase Canada |
