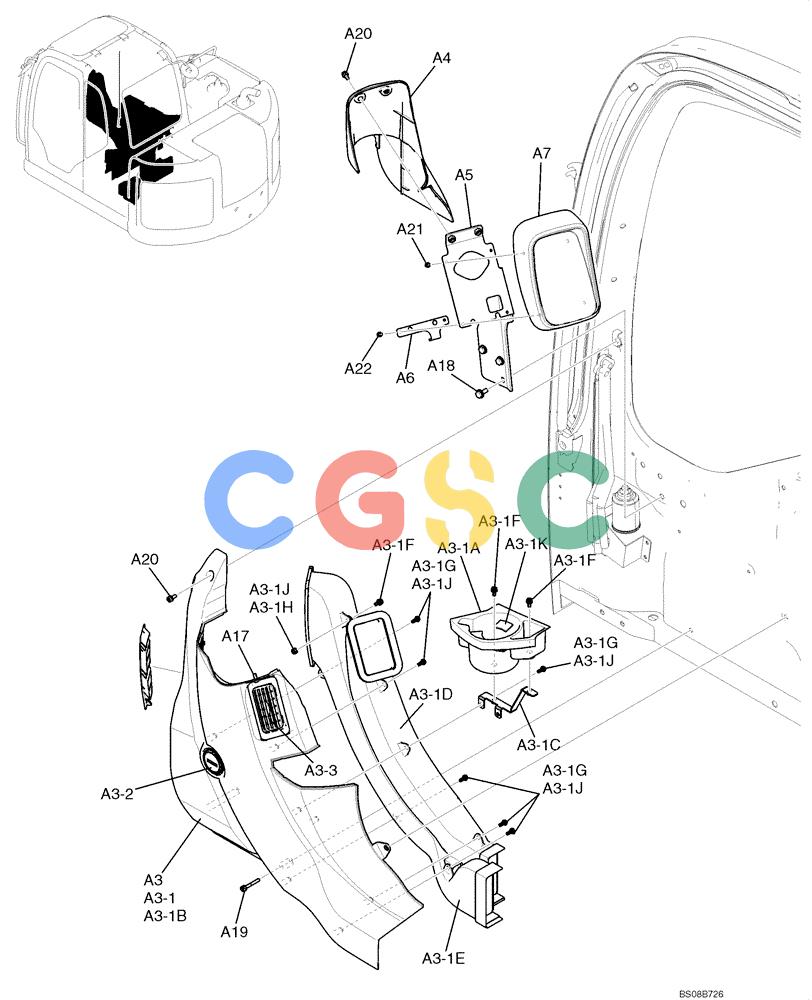

纽荷兰零件查询(E70BSR) - COMPACT CRAWLER EXCAVATOR BTW YT05-15001 - 18000 (NA) (4/08-) (02-59-00[01]) - INSTRUMENT PANEL ASSEMBLY (YT17M00024F1), PAGE 1 OF 3 New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
769 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| A3. | YN17M01317F1 | [1] | GUARD | SMCover Assembly, Incls. Refs. A3-1 - A3-3 |
| A3-1. | YN17M01286F1 | [1] | COVER ASSY | KOBIncls. Refs. A3-1A - A3-1K |
| A3-1A. | YN17M01308F1 | [1] | COVER ASSY | KOB |
| A3-1B. | YN17M01306F1 | [1] | COVER ASSY | KOB Superseded by part number: YN17M01422F1 |
| A3-1C. | YN17M01271P1 | [1] | BRACKET | SM |
| A3-1D. | YN20M01622F1 | [1] | DUCT | SMAssembly |
| A3-1E. | YN20M01625F1 | [1] | DUCT | SMAssembly |
| A3-1F. | YN17M01255P1 | [3] | BOLT | SMM06x1.0x15mm (Incls. Washer & Lockwasher) Superseded by part number: ZM66C06016 |
| A3-1G. | YN17M01264P1 | [7] | SCREW | SMM06x15mm Self-Taper |
| A3-1H. | YN17M01281P1 | [1] | NUT | SMM06x1.0mm |
| A3-1J. | YN17M01266P1 | [8] | WASHER | SMID 06.4 x OD 11.5 x Th 1.6mm |
| A3-1K. | YN17M01309P1 | [3] | RUBBER BAND | KOB Superseded by part number: YN17M01308F1 |
| A3-2. | YT58S00006P1 | [1] | HOURMETER | KOBHour |
| A4. | YN17M01310F1 | [1] | GUARD | SMCover Assembly |
| A5. | YN17M01197P2 | [1] | BRACKET | SM |
| A6. | YN17M01319P1 | [1] | BRACKET | SM |
| A7. | YN59S00021F3 | [1] | CONTROL MONITOR | SMGauge Assembly, Cluster -- See Figure 02-60-00 |
| A17. | YN17M01320P1 | [5] | SCREW,Phillips Drive, Truss HD, M6 x 1 x 15mm | SMM06x1.0x15mm |
| A18. | ZM73C08020 | [3] | BOLT,M8x20mm - Course Thread | KOBM08x1.25x20mm (Incls. Washer) |
| A19. | ZM66C06045 | [1] | BOLT | KOBM06x1.0x45mm (Incls. Washer & Lockwasher) |
| A20. | ZM66C06016 | [15] | BOLT | KOBM06x1.0x16mm (Incls. Washer & Lockwasher) |
| A21. | ZM61C05012 | [2] | BOLT | KOBM05x0.8x12mm (Incls. Washer & Lockwasher) |
| A22. | ZM61C05016 | [2] | BOLT | KOBM05x0.8x16mm (Incls. Washer & Lockwasher) |
