神钢零件查询(K903B) - EXCAVATOR ASN LE3401 (1/85-12/03) (08-032) - WASHER ASSY, WINDOW (FOR EXPORT) P/N 24100J5094F1 Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
527 次

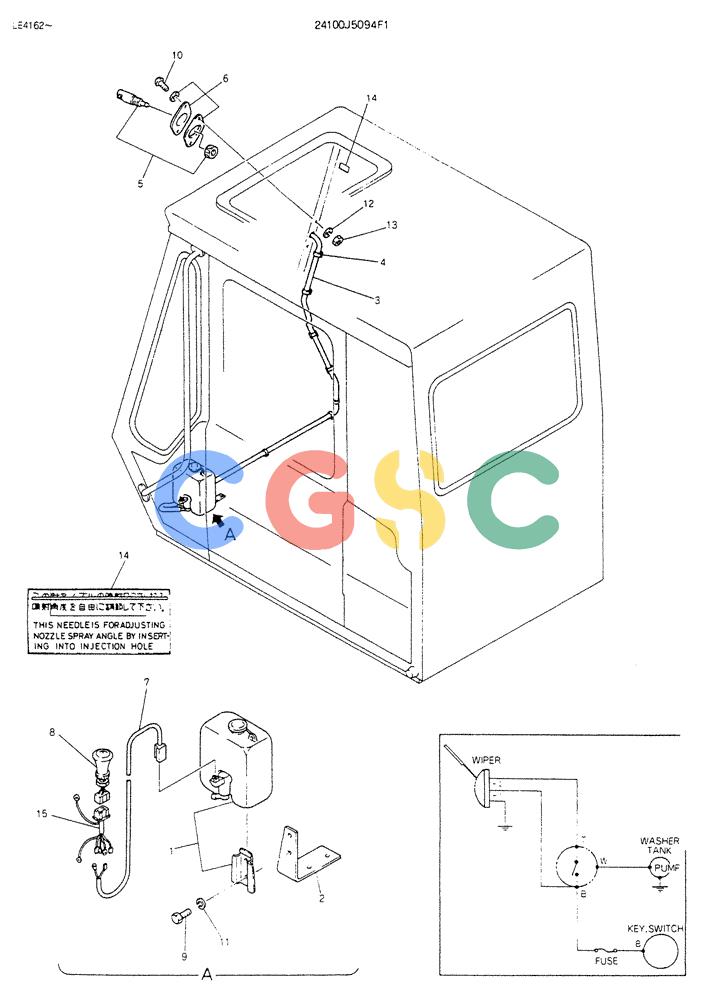

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100J5094F1 | [1] | WASHER, WINDOW | WASHER, WINDOW |
| 1. | 24100U157F1 | [1] | TANK | KOB Superseded by part number: YT54C00003F1 |
| 2. | 2416P7292 | [1] | BRACKET | KOB |
| 3. | 2418Z633 | [1] | TUBE | KOB |
| 4. | 2432Z309D1 | [8] | CLAMP | KOB |
| 5. | 24100R43 | [1] | NOZZLE | KOB |
| 6. | 24100Z37 | [1] | NOZZLE | KOB |
| 7. | 2479R535 | [1] | WIRE HARNESS | KOB |
| 8. | 2479U237F1 | [1] | SWITCH ASSY | KOB |
| 9. | ZS16C06016 | [2] | SCREW | KOBM06x1.0x16mm |
| 10. | ZS31C04012 | [7] | BOLT,Phillips Drive, Pan HD, M4 x 12mm | KOBM04x0.7x12mm |
| 11. | ZW26X06000 | [2] | LOCK WASHER | KOBID 06 x OD 07 x Th 1.5mm |
| 12. | ZW26X04000 | [2] | LOCK WASHER | KOBID 04 x OD 7.6 x Th 1.0mm |
| 13. | ZN16C04003 | [2] | NUT | KOBM04x0.7mm Superseded by part number: ZN18C04003 |
| 14. | 2432Z327 | [1] | PLATE | KOB |
| 15. | 2479Z930 | [1] | HARNESS | |
