神钢零件查询(K903B) - EXCAVATOR ASN LE3401 (1/85-12/03) (08-033) - DEFROSTER ASSY (FOR EXPORT) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
753 次

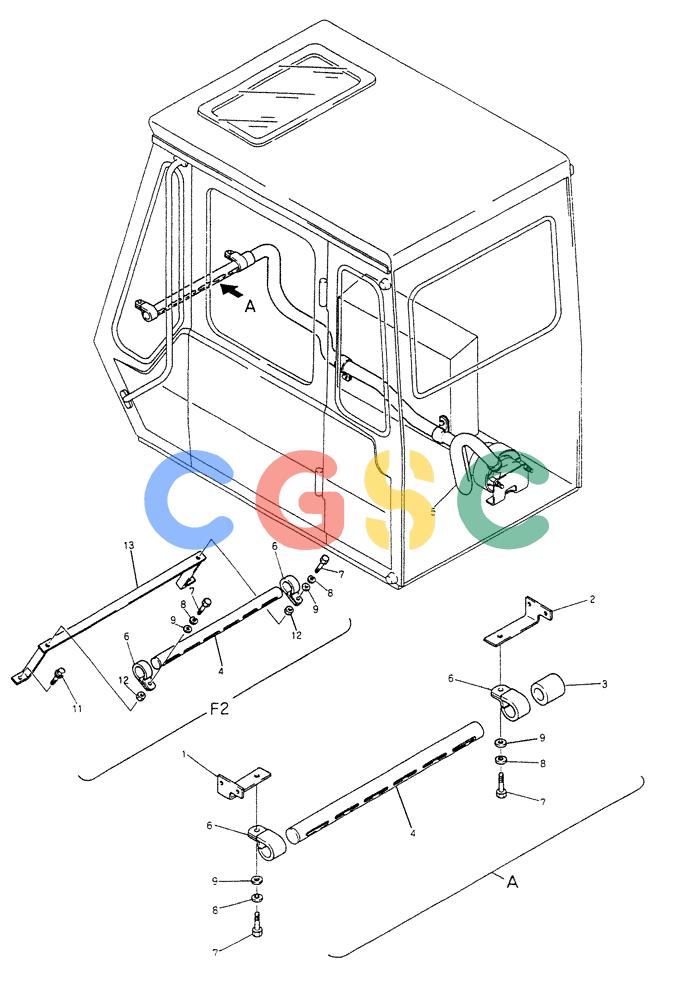

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100N2751F1 | [1] | INSTAL, DEFROSTER, Serial Range: LE3401-LE4901 | |
| . . | 24100N2751F2 | [1] | INSTAL, DEFROSTER, Start Serial: LE4904- | |
| 1. | 2418P9728D1 | [1] | PLATE, Serial Range: LE3401-LE4903 | |
| 2. | 2418P9728D1 | [1] | PLATE, Start Serial: LE3401-4903 | |
| 3. | 24100J3058S3 | [2] | SOCKET | KOBSOCKET |
| 4. | 2418Z844 | [1] | RIGID TUBE | KOB |
| 5. | 24100J4767S2 | [1] | HOSE | HOSE |
| 6. | R16P0036D3 | [2] | CLIP CLAMP | CLIP CLAMP |
| 7. | ZS16C12025 | [2] | CAPSCREW M12x1.75x25mm | CAPSCREW M12x1.75x25mm |
| 8. | ZW26X12000 | [2] | LOCK WASHER | KOBID 12 x OD 21 x Th 3.0mm |
| 9. | ZW11X12000 | [2] | WASHER | KOBID 12 x OD 24 x Th 2.3mm Superseded by part number: ZW16X12000 |
| 11. | ZM11C10020 | [2] | SCREW | KOBM10x1.50x20mm (Incls. Lockwasher), Start Serial: LE4904 Superseded by part number: ZM12C10020 |
| 12. | ZN16C12010 | [2] | NUT | KOB, Start Serial: LE4904 Superseded by part number: ZN18C12010 |
| 13. | 2416T13027 | [1] | BRACKET, Start Serial: LE4904 | |
