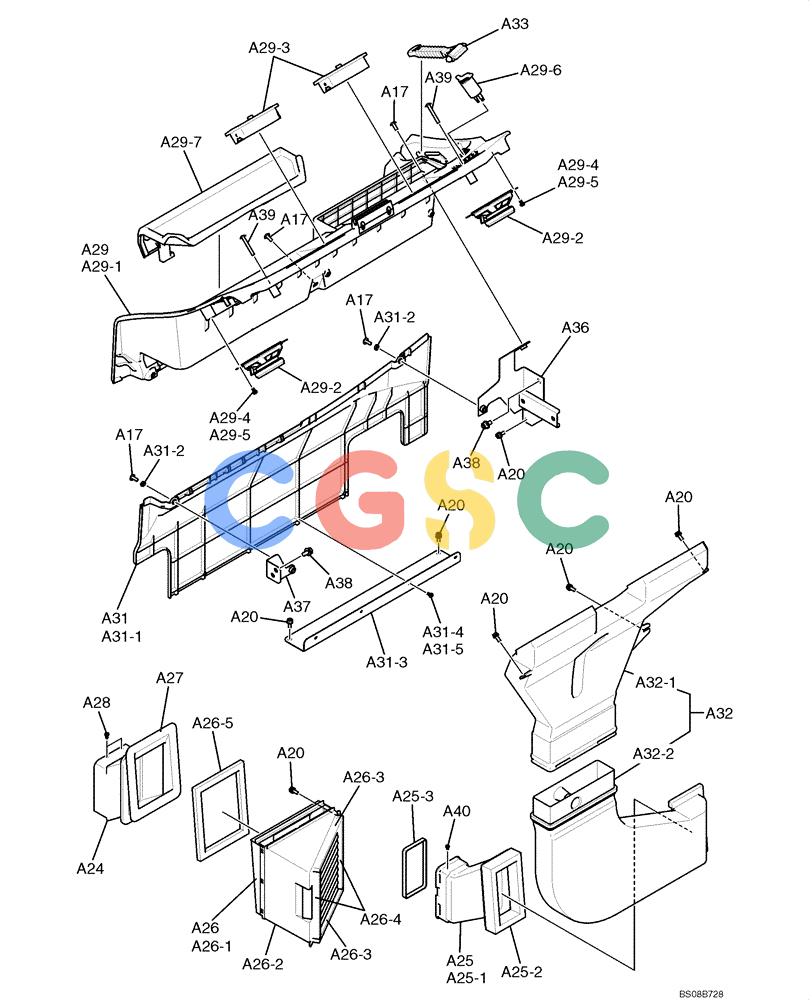

纽荷兰零件查询(E70BSR) - COMPACT CRAWLER EXCAVATOR BTW YT05-15001 - 18000 (NA) (4/08-) (02-59-00[03]) - INSTRUMENT PANEL ASSEMBLY (YT17M00024F1), PAGE 3 OF 3 New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
276 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| A17. | YN17M01320P1 | [5] | SCREW,Phillips Drive, Truss HD, M6 x 1 x 15mm | SMM06x1.0x15mm |
| A20. | ZM66C06016 | [15] | BOLT | KOBM06x1.0x16mm (Incls. Washer & Lockwasher) |
| A24. | YT20M01175P1 | [1] | DUCT | KOB |
| A25. | YT20M01171F1 | [1] | DUCT | KOBDuct Assembly, Incls. Refs. A25-1 - A25-3 |
| A25-1. | YT20M01172P1 | [1] | DUCT | KOB |
| A25-2. | YT20M01173P1 | [1] | INSULATION | KOB |
| A25-3. | YN20M01637P1 | [1] | FOAM INSULATION | KOB6x8x410mm Long (16-9/64 in) |
| A26. | YT20M01188F1 | [1] | DUCT | KOBDuct Assembly, Incls. Refs. A26-1 - A26-5 |
| A26-1. | YT20M01189P1 | [1] | DUCT | KOB |
| A26-2. | YT20M01190P1 | [1] | DUCT | KOB |
| A26-3. | YT20M01180P1 | [2] | RUBBER SEAL | KOB |
| A26-4. | YT20M01181P1 | [2] | RUBBER SEAL | KOB |
| A26-5. | YT20M01177P1 | [1] | RUBBER SEAL | KOB |
| A27. | YT20M01176P1 | [1] | RUBBER SEAL | KOB |
| A28. | ZS32T50012 | [2] | SCREW | KOBM05x12mm Self-Taper |
| A29. | YT17M01077F1 | [1] | Cover Assembly, Incls. Refs. A29-1 - A29-7 | |
| A29-1. | YT17M01051F1 | [1] | COVER ASSY | KOB Superseded by part number: YT17M01051F3 |
| A29-2. | YN54S00050P1 | [2] | SPEAKER | KOB Superseded by part number: YN54S00050P2 |
| A29-3. | YN20M01568P1 | [2] | GRILLE | SM |
| A29-4. | YN17M01262P1 | [8] | SCREW,Phillips Drive, Pan HD, M5 x 10mm | SMM05x10mm Self-Taper |
| A29-5. | ZW16P05000 | [8] | WASHER | KOBID 05 x OD 10 x Th 1.0mm |
| A29-6. | YN81S01002P1 | [1] | SEAT/SLOT,12V | SM24/12 Volt Auxiliary Electrical Power Socket |
| A29-7. | YT17M01062F1 | [1] | COVER ASSY | KOB |
| A31. | YT17M01055F1 | [1] | COVER ASSY | KOBCover Assembly, Incls. Refs. A31-1 - A31-5 |
| A31-1. | YT17M01056P1 | [1] | COVER | KOB |
| A31-2. | YN17M01296P1 | [2] | HOSE CLIP | SMCollar |
| A31-3. | YT17M01069P1 | [1] | BRACKET | KOB |
| A32. | YT20M01193F1 | [1] | DUCT | KOBDuct Assembly, Incls. Refs. A32-1 & A32-2 |
| A32-1. | YT20M01194P1 | [1] | DUCT | KOB |
| A32-2. | YT20M01195F1 | [1] | DUCT | KOBAssembly |
| A33. | YN01T01049F1 | [1] | HAMMER | SMAssembly |
| A36. | YT17M01070P1 | [1] | Bracket | |
| A37. | YT17M01074P1 | [1] | Bracket | |
| A38. | ZM66C08016 | [3] | BOLT | KOBM08x1.25x16mm (Incls. Washer & Lockwasher) |
| A39. | YT17M01061P1 | [2] | SCREW | KOBMachine Screw |
| A40. | ZS32T45010 | [1] | SCREW | KOBM4.5x10mm Self-Taper |
