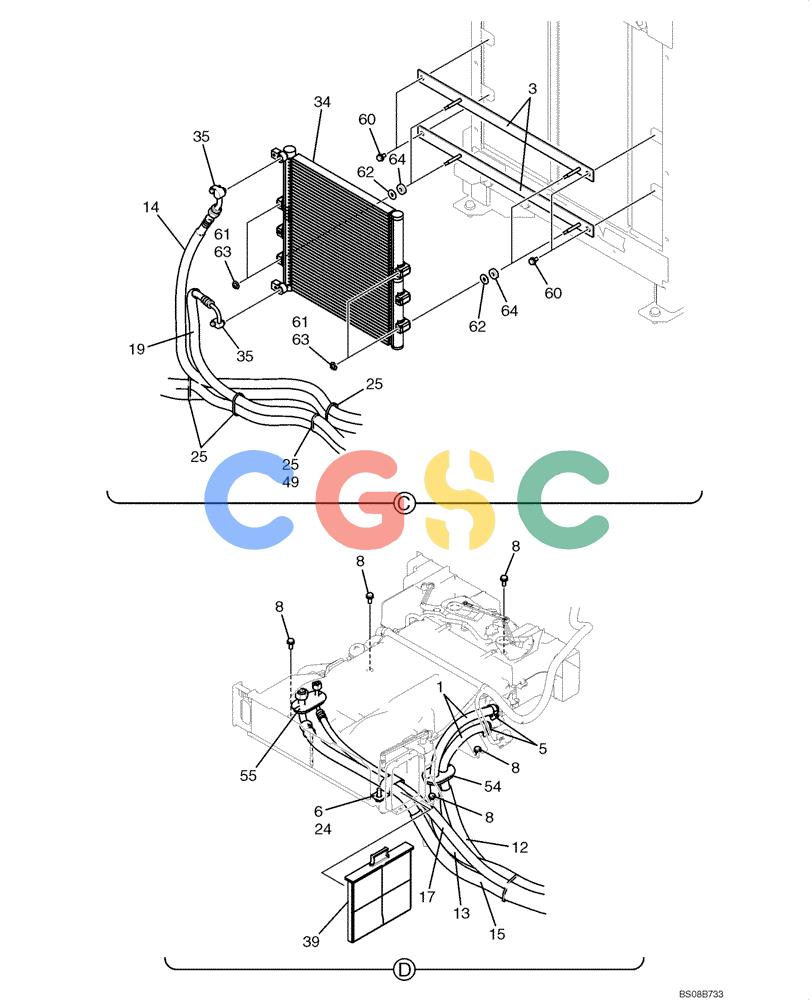

纽荷兰零件查询(E70BSR) - COMPACT CRAWLER EXCAVATOR BTW YT05-15001 - 18000 (NA) (4/08-) (02-63-00[02]) - AIR CONDITIONER INSTALLATION (YT20M00016F1), PAGE 2 OF 3 New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
180 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | HX11W08210DX | [2] | FLEXIBLE HOSE | KOB |
| 3. | YT20M01201P2 | [2] | Bracket | |
| 5. | ZC16X02000 | [4] | CLIP | KOBClamp, Hose -- Min 15 x Max 25mm |
| 6. | ZM73C10025 | [5] | BOLT,M10x25mm - Course Thread | KOBM10x1.50x25mm (Incls. Washer) |
| 8. | ZM73C08020 | [7] | BOLT,M8x20mm - Course Thread | KOBM08x1.25x20mm (Incls. Washer) |
| 12. | YJ21M01003D1 | [1] | FLEXIBLE HOSE | SMID 22.1 x OD 27 x 1800mm |
| 13. | YN20M01046D9 | [1] | TUBE,22.10mm ID x 27.00mm OD x 1700.00mm | KOBProtective Plastic |
| 14. | 2418Z1333D29 | [1] | PROTECTIVE SLEEVE,19.5mm ID x 23.8mm OD x 1450mm Length | KOB |
| 15. | YN20M01094D6 | [1] | TUBE,25mm ID x 30mm OD x 1500mm Length | KOB |
| 17. | 2418Z1333D14 | [1] | PROTECTIVE SLEEVE,19.5mm ID x 23.8mm OD x 1600mm Length | KOBProtective Plastic |
| 19. | 2418Z1333D6 | [1] | PROTECTIVE SLEEVE,19.5mm ID x 23.8mm OD x 1400mm Length | KOB |
| 24. | ZC48X24014 | [1] | CLIP | KOBClamp, Double -- Ø24x85mm Long |
| 25. | PY01P01043D4 | [15] | CABLE TIE,4.80mm W x 251mm L | KOBWire Ties -- 249mm Long |
| 34. | YT20M01060P2 | [1] | CONDENSER | KOB |
| 35. | YT96V00004F1 | [1] | EVAPORATOR | KOBAir Drier Assembly, See Figure 02-65-00 |
| 39. | YN50V01015P3 | [1] | CAB FILTER | SMElement, Air-conditioner -- 201x187x17mm Superseded by part number: YN50V01015P3P |
| 49. | YN13E01375P1 | [2] | CLIP,M8 x 8.20mm Shank | KOBAnchor Wire Ties |
| 54. | YN20M01514P1 | [1] | GASKET | SMGrommet |
| 55. | YN20M01676P1 | [1] | GASKET | SMGrommet |
| 60. | ZM73C08016 | [4] | BOLT,M8x16mm - Course Thread | KOBM08x1.25x16mm (Incls. Washer) |
| 61. | ZN18C06005 | [4] | NUT | KOBM06x1.0mm |
| 62. | YN20M01701P1 | [4] | WASHER | KOB |
| 63. | YN20M01702P1 | [4] | WASHER | KOB |
| 64. | YN20M01703P1 | [4] | RUBBER SEAL | SMGasket, Rubber |
