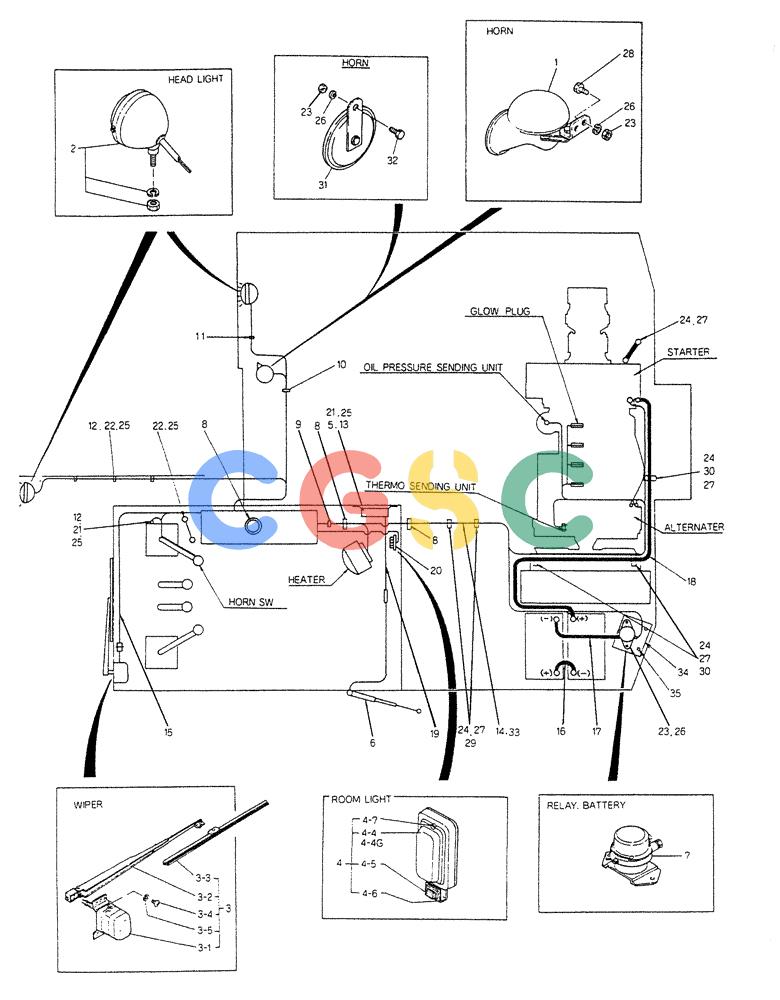

| . . | 24100N2395F1 | [1] | WIRING ASSY, Serial Range: LE3401-LE3496 | |
| . . | 24100N2395F2 | [1] | WIRING ASSY,ELEC, Start Serial: LE3497 | |
| 1. | 2447U1 | [1] | HORN | KOB, Serial Range: LE3401-LE3496 |
| 2. | 2456R123 | [2] | LIGHT | KOB |
| 3. | B00P0001F1 | [1] | WIPER | KOB |
| 3-1. | R79P0020D1 | [1] | WIPER MOTOR | KOB Superseded by part number: 2456R8D25 |
| 3-2. | R79P0022 | [1] | WIPER ARM | KOB |
| 3-3. | R79P0021 | [1] | WIPER BLADE | KOB Superseded by part number: 2488Z8D3 |
| 3-4. | ZS31C06010 | [6] | SCREW,Phillips Drive, Pan HD, M6 x 10mm | KOBM06x1.0x10mm |
| 3-5. | ZW22X06000 | [6] | LOCK WASHER ID 06 x OD 12.2 x Th 1.5mm | LOCK WASHER ID 06 x OD 12.2 x Th 1.5mm |
| 4. | 2456R117F2 | [1] | LIGHT | KOBROOM |
| 4-4. | 4056R4F1 | [1] | LAMP | KOBLIGHT ASSY |
| 4-4G. | 4056Z19D1 | [1] | LIGHT | KOBLIGHT |
| 4-5. | 2456R117S5 | [1] | SWITCH | KOB |
| 4-6. | 2456R117S6 | [1] | BRACKET | |
| 4-7. | ZS41C04008 | [1] | CAPSCREW,M4 x 8mm | KOBSCREW M04x0.7x08mm |
| 5. | 2479U253D2 | [1] | RADIO | KOB |
| 6. | 2479U255 | [1] | ANTENNA | KOBANTENNA |
| 7. | 2479U142 | [1] | RELAY | KOBBATTERY |
| 8. | 2420Z699 | [3] | GROMMET | KOB |
| 9. | 2432Z290 | [4] | CLIP | KOBWire Ties -- 185mm Long Superseded by part number: PY01P01043D3 |
| 10. | 2432Z290D3 | [10] | CLIP | KOBWire Ties -- 154mm Long Superseded by part number: PY01P01043D3 |
| 11. | 2432Z309D1 | [5] | CLAMP | KOB |
| 12. | 2432Z270 | [5] | CLAMP | KOB |
| 13. | 2416P2954 | [1] | BRACKET | BRACKET |
| 14. | 2479R662 | [1] | HARNESS, WIRING | HARNESS, WIRING |
| 15. | 24100T278F2 | [1] | WIRE HARNESS | KOB |
| 16. | 2479Z817D3 | [1] | CABLE, BATTERY | CABLE, BATTERY |
| 17. | 2479Z817D4 | [1] | CABLE, BATTERY | |
| 18. | 2479Z817D1 | [1] | CABLE, BATTERY | |
| 19. | 2479R656 | [1] | WIRE HARNESS | KOB |
| 20. | ZS31C03008 | [2] | SCREW,Phillips Drive, Pan HD, M3 x 8mm | KOBM03x0.5x08mm |
| 21. | ZS31C06010 | [4] | SCREW,Phillips Drive, Pan HD, M6 x 10mm | KOBM06x1.0x10mm |
| 22. | ZN16C06005 | [6] | NUT | KOBM06x1.0mm Superseded by part number: ZN18C06005 |
| 23. | ZN16C08007 | [4] | NUT | KOBM08x1.25mm, Serial Range: LE3401-LE3496 Superseded by part number: ZN18C08007 |
| 24. | ZN16C10008 | [6] | NUT | KOBM10x1.50mm Superseded by part number: ZN18C10008 |
| 25. | ZW26X06000 | [10] | LOCK WASHER | KOBID 06 x OD 07 x Th 1.5mm |
| 26. | ZW26X08000 | [4] | LOCK WASHER | KOBLock -- ID 08 x OD 15 x Th 2.0mm, Serial Range: LE3401-LE3496 Superseded by part number: 83990583 |
| 27. | ZW26X10000 | [6] | LOCK WASHER | KOBID 10 x OD 18 x Th 2.5mm |
| 28. | ZS16C08025 | [2] | SCREW | KOBM08x1.25x25mm, Serial Range: LE3401-LE3496 Superseded by part number: ZS18C08025 |
| 29. | R16P0036D1 | [2] | CLAMP | KOBCLAMP Superseded by part number: ZC46X12011 |
| 30. | R16P0036D20 | [3] | CLAMP | |
| 31. | 2479U240F1 | [1] | HORN | KOB, Start Serial: LE3497- Superseded by part number: CM53S00002F1 |
| 32. | ZS16C08020 | [1] | SCREW | KOBCAPSCREW M08x1.25x20mm, Start Serial: LE3497- Superseded by part number: ZS18C08020 |
| 33. | 2479R665 | [1] | HARNESS, WIRING, Start Serial: LE3497- | HARNESS, WIRING, Start Serial: LE3497- |
| 34. | 2414T1950 | [1] | COVER, Start Serial: LE3497- | |
| 35. | ZM11C10020 | [2] | SCREW | KOBM10x1.50x20mm (Incls. Lockwasher) Superseded by part number: ZM12C10020 |
