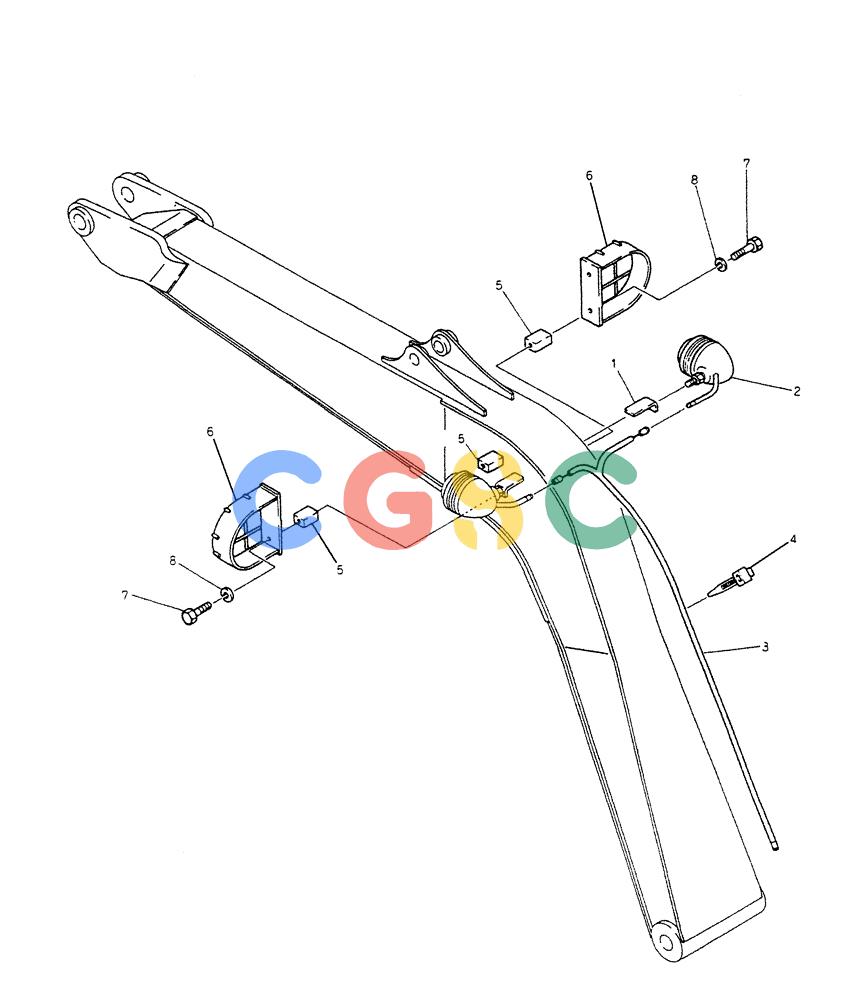

神钢零件查询(K903B) - EXCAVATOR ASN LE3401 (1/85-12/03) (08-034) - BOOM, LIGHT (FOR EXPORT) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
941 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100P1040F1 | [1] | ROOM, LIGHT | |
| 1. | B16T0274 | [1] | BRACKET | |
| 2. | 2456R123D2 | [1] | LIGHT | KOB Superseded by part number: 2456R123D3 |
| 3. | 2479Z866 | [1] | HARNESS | |
| 4. | 2432Z290D3 | [2] | CLIP | KOBWire Ties -- 154mm Long Superseded by part number: PY01P01043D3 |
| 5. | 2416T10850 | [4] | BLOCK TAPPED | BLOCK TAPPED |
| 6. | 2414P2878 | [2] | COVER | COVER |
| 7. | ZS13C10020 | [4] | SCREW | KOBM10x1.50x20mm Superseded by part number: ZS18C10020 |
| 8. | ZW22X10000 | [4] | LOCK WASHER | KOBID 10 x OD 18.4 x Th 2.5mm Superseded by part number: ZW26X10000 |
