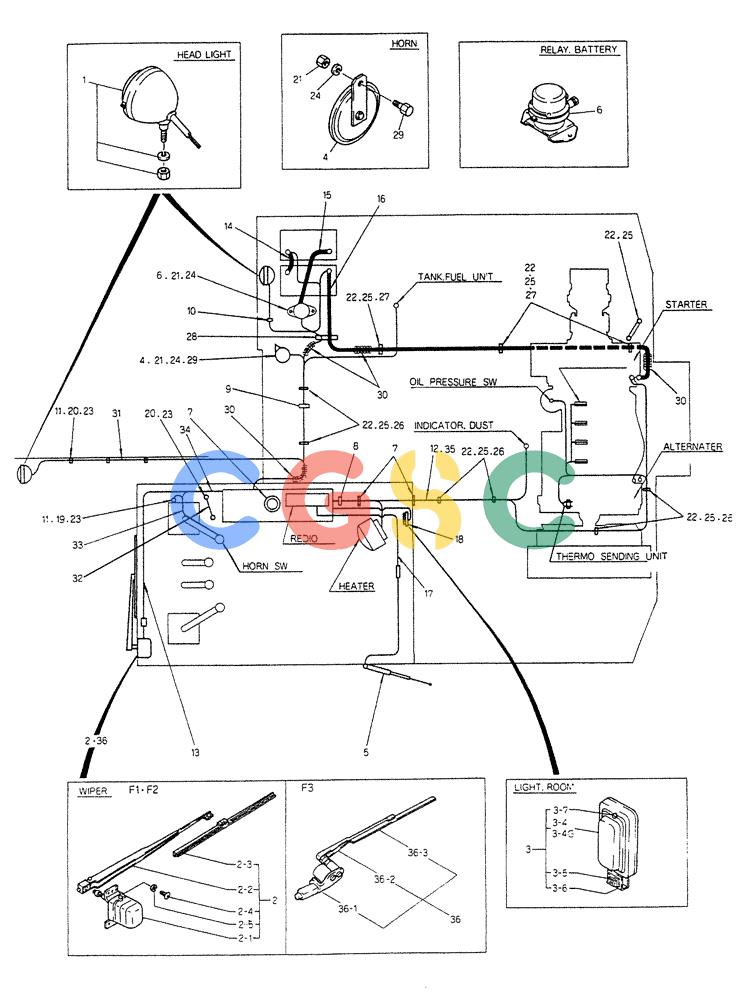

| . . | 24100N2837F1 | [1] | WIRING ASSY, ELEC, Serial Range: LE4162-LE4288 | |
| . . | 24100N2837F2 | [1] | WIRING ASSY, ELEC, Serial Range: LE4289-LE5498 | |
| . . | 24100N2837F3 | [1] | WIRING ASSY, ELEC, Start Serial: LE5499- | |
| 1. | 2456R123D2 | [2] | LIGHT | KOB Superseded by part number: 2456R123D3 |
| 2. | B00P0001F1 | [1] | WIPER | KOB, Serial Range: LE4162-LE5498 |
| 2-1. | R79P0020D1 | [1] | WIPER MOTOR | KOB Superseded by part number: 2456R8D25 |
| 2-2. | R79P0022 | [1] | WIPER ARM | KOB |
| 2-3. | R79P0021 | [1] | WIPER BLADE | KOB Superseded by part number: 2488Z8D3 |
| 2-4. | ZS31C06010 | [6] | SCREW,Phillips Drive, Pan HD, M6 x 10mm | KOBM06x1.0x10mm |
| 2-5. | ZW22X06000 | [6] | LOCK WASHER ID 06 x OD 12.2 x Th 1.5mm | LOCK WASHER ID 06 x OD 12.2 x Th 1.5mm |
| 3. | 2456R117F2 | [1] | LIGHT | KOB |
| 3-4. | 4056R4F1 | [1] | LAMP | KOB |
| 3-4G. | 4056Z19D1 | [1] | LIGHT | KOBLIGHT |
| 3-5. | 2456R117S5 | [1] | SWITCH | KOB |
| 3-6. | 2456R117S6 | [1] | BRACKET | |
| 3-7. | ZS41C04008 | [1] | CAPSCREW,M4 x 8mm | KOBSCREW M04x0.7x08mm |
| 4. | 2479U240F1 | [1] | HORN | KOB Superseded by part number: CM53S00002F1 |
| 5. | 2479U255 | [1] | ANTENNA | KOB |
| 6. | 2479U142 | [1] | RELAY | KOB |
| 7. | 2420Z699 | [3] | GROMMET | KOB |
| 8. | 2432Z290 | [4] | CLIP | KOBWire Ties -- 185mm Long Superseded by part number: PY01P01043D3 |
| 9. | 2432Z290D3 | [10] | CLIP | KOBWire Ties -- 154mm Long Superseded by part number: PY01P01043D3 |
| 10. | 2432Z309D1 | [5] | CLAMP | KOB |
| 11. | 2432Z270 | [5] | CLAMP | KOB |
| 12. | 2479R685 | [1] | HARNESS, WIRING(35), Serial Range: LE4162-LE4288 | |
| 13. | 24100T278F3 | [1] | WIRE HARNESS | KOB, Serial Range: LE4162-LE4426 |
| 14. | 2479Z817D3 | [1] | CABLE, BATTERY | CABLE, BATTERY |
| 15. | 2479Z817D4 | [1] | CABLE, BATTERY | |
| 16. | 2479Z817D1 | [1] | CABLE, BATTERY | |
| 17. | 2479R656 | [1] | WIRE HARNESS | KOB |
| 18. | ZS31C03008 | [2] | SCREW,Phillips Drive, Pan HD, M3 x 8mm | KOBM03x0.5x08mm |
| 19. | ZS31C06010 | [3] | SCREW,Phillips Drive, Pan HD, M6 x 10mm | KOBM06x1.0x10mm |
| 20. | ZN16C06005 | [3] | NUT | KOBM06x1.0mm Superseded by part number: ZN18C06005 |
| 21. | ZN16C08007 | [3] | NUT | KOBM08x1.25mm Superseded by part number: ZN18C08007 |
| 22. | ZN16C10008 | [10] | NUT | KOBM10x1.50mm Superseded by part number: ZN18C10008 |
| 23. | ZW26X06000 | [6] | LOCK WASHER | KOBID 06 x OD 07 x Th 1.5mm |
| 24. | ZW26X08000 | [3] | LOCK WASHER | KOBLock -- ID 08 x OD 15 x Th 2.0mm Superseded by part number: 83990583 |
| 25. | ZW26X10000 | [10] | LOCK WASHER | KOBID 10 x OD 18 x Th 2.5mm |
| 26. | R16P0036D1 | [6] | CLAMP | KOB Superseded by part number: ZC46X12011 |
| 27. | R16P0036D20 | [3] | CLAMP | |
| 28. | 2420Z9630 | [1] | GROMMET | |
| 29. | ZS16C08020 | [1] | SCREW | KOBCAPSCREW M08x1.25x20mm Superseded by part number: ZS18C08020 |
| 30. | 2414Z199D25 | [4] | PROTECTIVE SLEEVE | KOBHOSE Superseded by part number: 2414Z199D025 |
| 31. | 2479Z839 | [1] | HARNESS | HARNESS |
| 32. | 2479Z756 | [1] | WIRE HARNESS | KOB, Start Serial: LE4427- |
| 33. | 2479Z914 | [1] | HARNESS | KOB, Start Serial: LE4427- |
| 34. | 2479Z915 | [1] | HARNESS | KOB, Start Serial: LE4427- |
| 35. | 2479R691 | [1] | HARNESS , WIRING, Start Serial: LE4289- | |
| 36. | 24100P1139F1 | [1] | WIPER ASSY, Start Serial: LE5499- | |
| 36-1. | 2479R704 | [1] | WIPER | KOB Superseded by part number: YT53C00011F1 |
| 36-2. | R79P0022 | [1] | WIPER ARM | KOB |
| 36-3. | R79P0021 | [1] | WIPER BLADE | KOB Superseded by part number: 2488Z8D3 |
