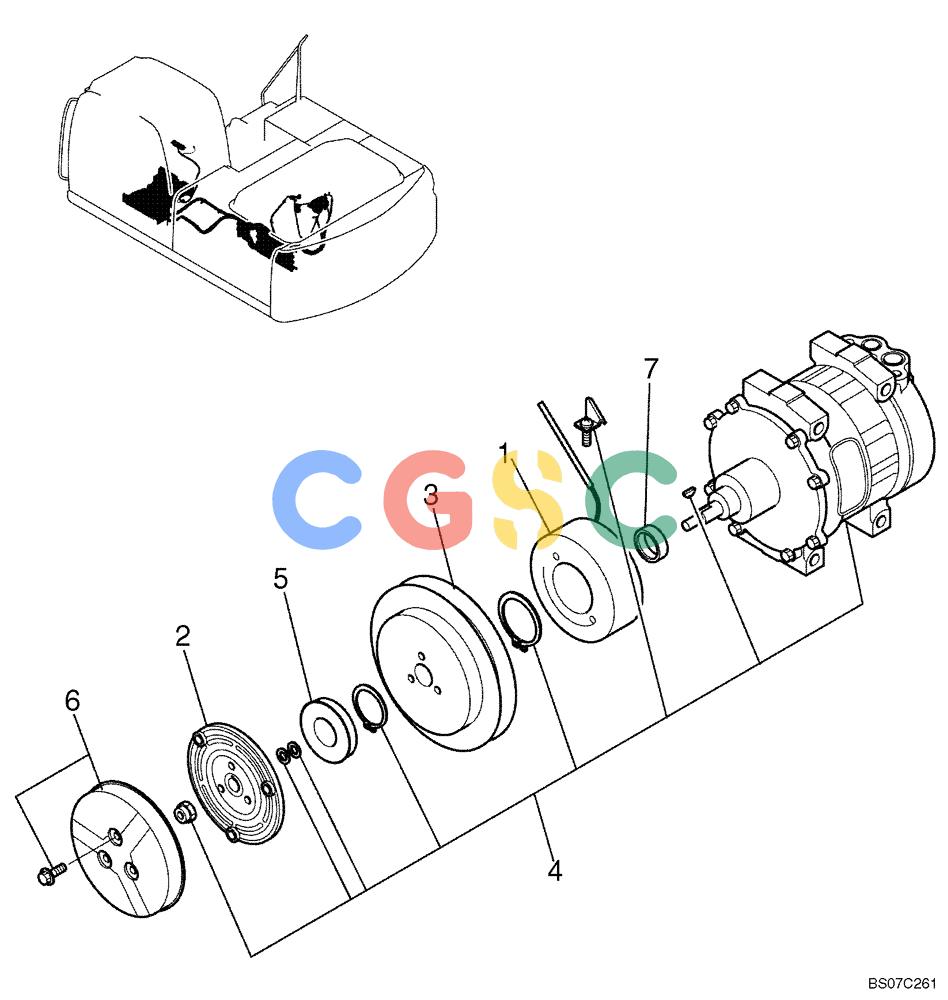

纽荷兰零件查询(E70BSR) - COMPACT CRAWLER EXCAVATOR BTW YT05-15001 - 18000 (NA) (4/08-) (02-66-00[00]) - COMPRESSOR ASSEMBLY (YX91V00001F1) New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
226 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YX91V00001F1 | [1] | COMPRESSOR,W/ Pulley | KOBAir Assembly |
| . . | YX91V00001F1R | [1] | REMAN-COMPRESSOR,W/ Pulley | KOBE70B BTW YT05-15001 - 18000 (NA) (4/08-) |
| . . | YX91V00001F1C | [1] | CORE-COMPRESSOR | KOBReturn Number |
| 1. | LC91V00001S002 | [1] | PLATE | KOBCore |
| 2. | YN91V01001S002 | [1] | PLATE | KOB |
| 3. | YN91V01001S003 | [1] | ROTOR | KOB |
| 4. | LC91V00001S004 | [1] | ACCESSORIES | KOB |
| 5. | YN91V01001S005 | [1] | COVER | KOB |
| 6. | YN91V01001S006 | [1] | COVER | KOB |
| 7. | YN91V01001S007 | [1] | RING | KOBAssembly |
