神钢零件查询(K903B) - EXCAVATOR ASN LE3401 (1/85-12/03) (05-005) - SPRING ASSY, TRACK P/N 24100N2205F2 Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
673 次

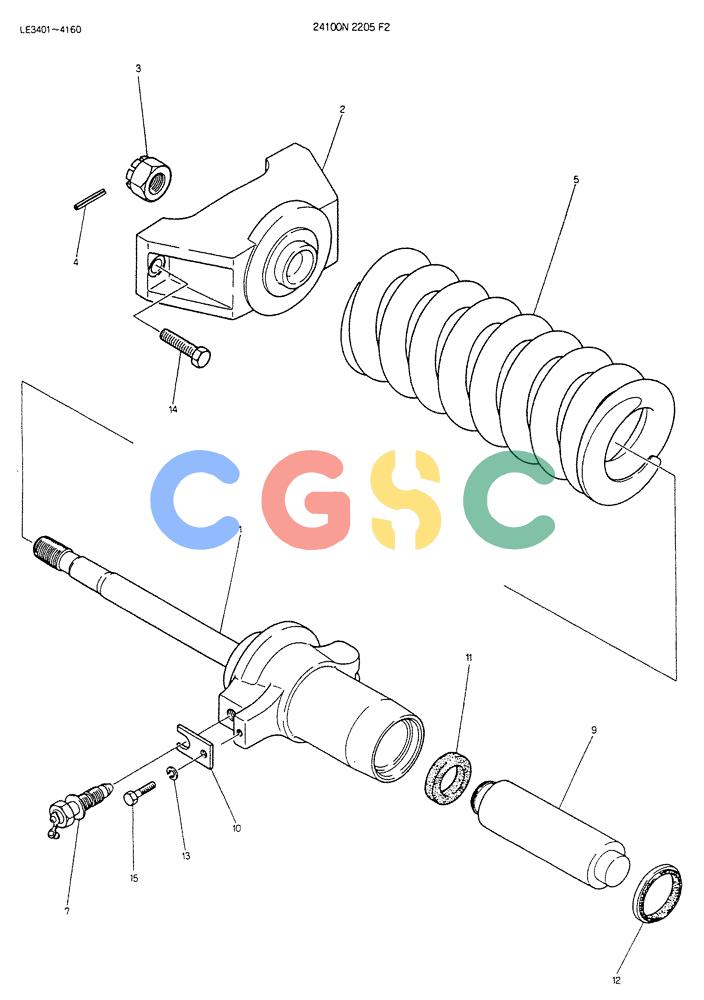

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100N2205F2 | [1] | SPRING ASSY, TRACK | |
| 1. | 2438N155 | [1] | CYLINDER | CYLINDER |
| 2. | 2416N2282 | [1] | BRACKET | BRACKET |
| 3. | ZN21C24027 | [1] | NUT | KOB Superseded by part number: ZN23C24027 |
| 4. | ZP26D05036 | [1] | PIN | KOBSpring |
| 5. | 2417P178C2 | [1] | SPRING | SPRING |
| 7. | 2444R663 | [1] | FITTING | KOBNIPPLE |
| 9. | 2439P146 | [1] | PISTON | KOBPISTON |
| 10. | 2418T7294 | [1] | PLATE | KOB |
| 11. | R45T0003D3 | [1] | KIT | KOBID 35 x OD 50 x Th 10mm |
| 12. | R45T0009D3 | [1] | DUST CAP | KOB |
| 13. | ZW22X08000 | [1] | LOCK WASHER | KOBID 08 x OD 15.4 x Th 2.0mm Superseded by part number: 83990583 |
| 14. | ZS13C12030 | [2] | CAPSCREW | KOBSCREW M12x1.75x30mm Superseded by part number: ZS18C12030 |
| 15. | ZS13C08014 | [1] | SCREW | KOBM08x1.25x14mm Superseded by part number: ZS18C08014 |
