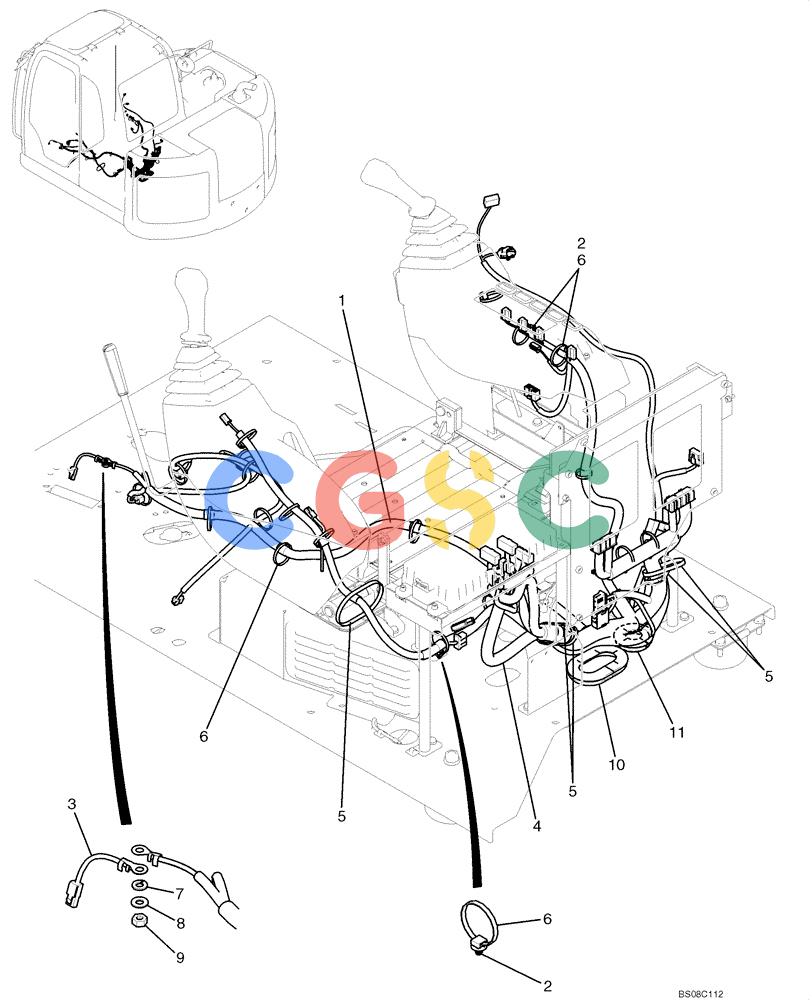

纽荷兰零件查询(E70BSR) - COMPACT CRAWLER EXCAVATOR BTW YT05-15001 - 18000 (NA) (4/08-) (02-75-00[00]) - HARNESS ASSEMBLY, UPPER (FLOOR PLATE) (YT13E00049F1) New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
988 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | YT13E01141P2 | [1] | HARNESS | KOB Superseded by part number: YT13E01170P1 |
| 2. | YN13E01375P1 | [10] | CLIP,M8 x 8.20mm Shank | KOBAnchor Wire Ties |
| 3. | LE13E01005P1 | [1] | CABLE,100mm L | KOB100mm Long (3-15/16 in) |
| 4. | YB13E01054P1 | [1] | HARNESS | KOB |
| 5. | PY01P01043D8 | [6] | CABLE TIE,102mm L | KOBWire Ties -- 368mm Long |
| 6. | PY01P01043D3 | [23] | CABLE TIE,188mm L | KOBWire Ties -- 188mm Long |
| 7. | ZW26X08000 | [1] | LOCK WASHER | KOBLock -- ID 08 x OD 15 x Th 2.0mm Superseded by part number: 83990583 |
| 8. | ZW16P08000 | [1] | WASHER | KOBID 08 x OD 17 x Th 1.6mm |
| 9. | ZN18C08007 | [1] | NUT | KOBM08x1.25mm |
| 10. | LC13E01330P1 | [1] | GROMMET | KOB |
| 11. | LC13E01322P1 | [1] | GROMMET | KOB |
