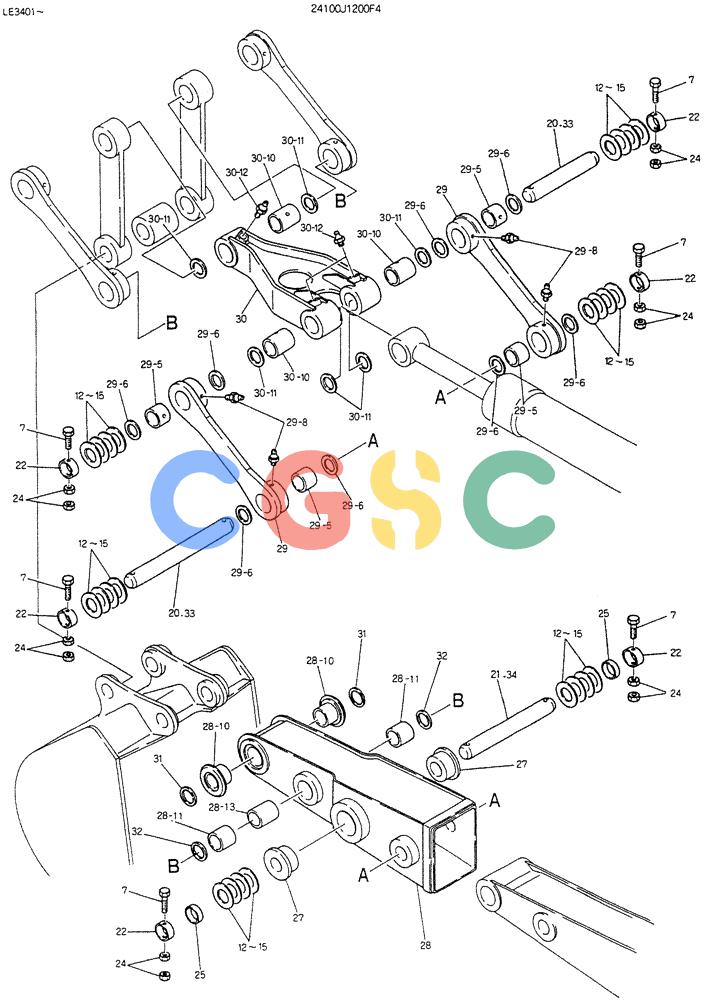

神钢零件查询(K903B) - EXCAVATOR ASN LE3401 (1/85-12/03) (09-004) - ARM ASSY, EXTENSION Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
512 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100J1200F4 | [1] | ARM ASSY, EXTENSION | ARM ASSY, EXTENSION |
| 7. | ZS13C12085 | [6] | SCREW | KOB Superseded by part number: ZS18C12085 |
| 12. | 4018T183D1 | [3] | SHIM,52mm ID x 80mm OD x 2.3mm Thk | KOBSPACER Superseded by part number: B16T0442D24 |
| 13. | 4018T183D2 | [3] | SHIM,52mm ID x 80mm OD x 1.2mm Thk | KOBSPACER Superseded by part number: B16T0442D25 |
| 14. | 4018T183D3 | [3] | SHIM | KOBSPACER Superseded by part number: B16T0442D41 |
| 15. | 4018T183D4 | [3] | SHIM | KOB |
| 20. | 2419P839 | [2] | PIN (33) | |
| 21. | 2419P840 | [1] | PIN (34) | |
| 22. | 2418T3986 | [6] | COLLAR | KOBCOLLAR |
| 24. | ZN12C12010 | [12] | NUT | KOBM12x1.75mm Superseded by part number: ZN18C12010 |
| 25. | 2418T3723D2 | [2] | SPACER | |
| 27. | 2405T739 | [2] | BUSHING | KOB |
| 28. | 2411J1631F1 | [1] | ARM, EXTENSION | |
| 28-10. | 2405P258 | [2] | BUSHING | KOB |
| 28-11. | 2405T594C2 | [2] | BUSHING | KOB |
| 28-13. | 2418T10049 | [1] | SPACER | SPACER |
| 29. | 2406N393D2F1 | [2] | LINK, IDLER | LINK, IDLER |
| 29-5. | 2405T632C2 | [2] | BUSHING | KOB |
| 29-6. | 2445R138D1 | [4] | SEAL,50mm ID x 65mm OD x 4mm Thk | KOBDust -- ID 50 x OD 65 x Th 4mm |
| 29-8. | ZG91S02000 | [2] | LUBE NIPPLE,1/8" NPT x 1/8" NPT | KOB1/8" PT -- Straight |
| 30. | 2406N394D2F1 | [1] | LINK | LINK |
| 30-10. | 2405T631C2 | [3] | BUSHING | |
| 30-11. | 2445R138D1 | [6] | SEAL,50mm ID x 65mm OD x 4mm Thk | KOBDust -- ID 50 x OD 65 x Th 4mm |
| 30-12. | ZG91S02000 | [3] | LUBE NIPPLE,1/8" NPT x 1/8" NPT | KOB1/8" PT -- Straight |
| 31. | 2445R220D5 | [2] | SEAL,50mm ID x 65mm OD x 5mm Thk | KOBDust -- ID 50 x OD 65 x Th 5mm Superseded by part number: 71436184 |
| 32. | 2445R138D1 | [2] | SEAL,50mm ID x 65mm OD x 4mm Thk | KOBDust -- ID 50 x OD 65 x Th 4mm |
| 33. | 2419P1591 | [2] | PIN | KOB |
| 34. | 2419P1592 | [1] | PIN | |
