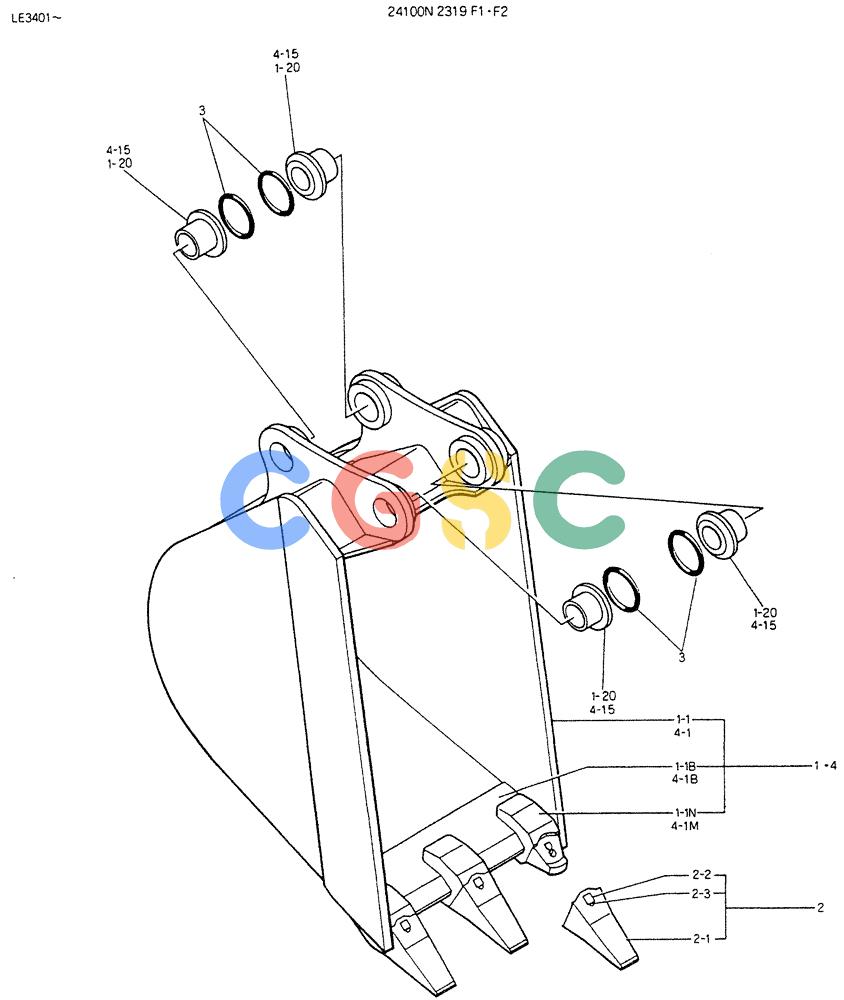

神钢零件查询(K903B) - EXCAVATOR ASN LE3401 (1/85-12/03) (09-005) - BUCKET ASSY, 0.1M³ Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
354 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100N2319F1 | [1] | BUCKET ASSY LE 3401 to LE 5440 | |
| . . | 24100N2319F2 | [1] | BUCKET ASSY LE, Start Serial: 5441 | |
| 1. | 2412J335F1 | [1] | BUCKET LE 3401 to LE 5440 | |
| 1-1. | NSS | [1] | NOT SOLD SEPARAT | CON |
| 1-18. | NSS | [1] | NOT SOLD SEPARAT | CON |
| 1-19. | NSS | [3] | NOT SOLD SEPARAT | CON |
| 1-20. | NSS | [4] | NOT SOLD SEPARAT | CON |
| 2. | NSS | [3] | NOT SOLD SEPARAT | CON |
| 2-1. | NSS | [1] | NOT SOLD SEPARAT | CON |
| 2-2. | NSS | [1] | NOT SOLD SEPARAT | CON |
| 2-3. | NSS | [1] | NOT SOLD SEPARAT | CON |
| 3. | 2445Z912 | [1] | O-RING | KOBID 90 ± 0.40 x OD 108mm |
| 4. | 2412J658F1 | [1] | BUCKET LE, Start Serial: 5441 | |
| 4-1. | 2412J658 | [1] | BUCKET | |
| 4-1B. | 2412P314D5 | [1] | EDGE, CUTTING | |
| 4-1M. | 2412N214 | [3] | ADAPTER | KOB |
| 4-15. | 2405T873 | [4] | BUSHING | KOB |
