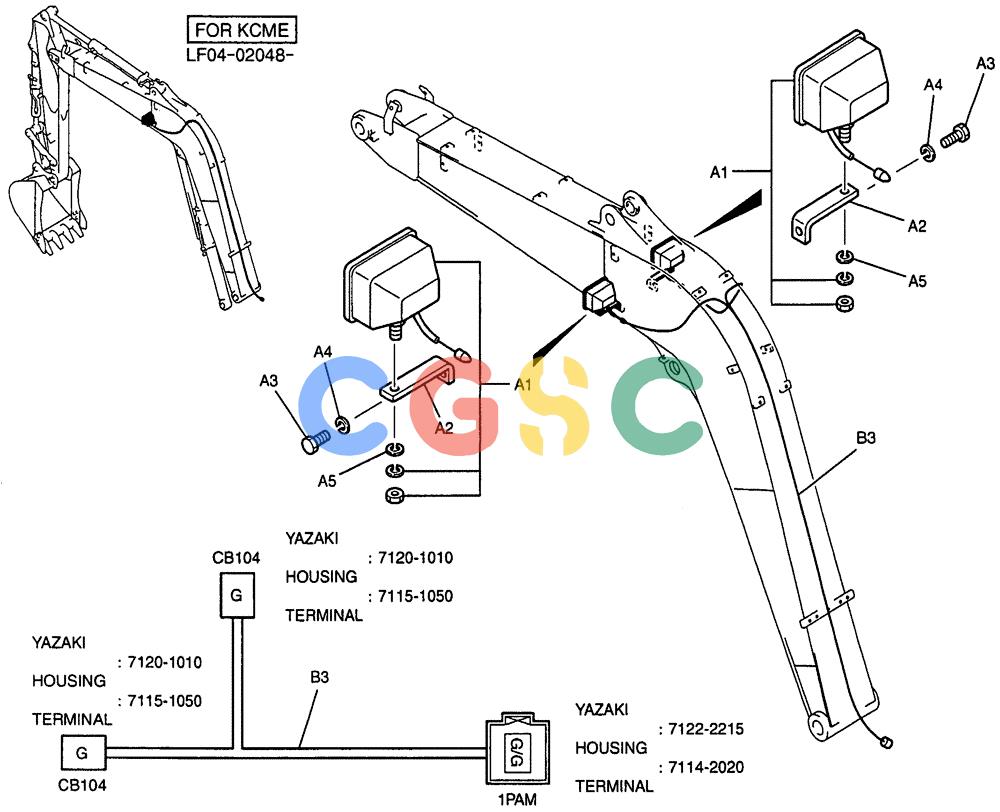

纽荷兰零件查询(E80) - MIDI CRAWLER EXCAVATOR ASN LF04-02001 (03-004) - LIGHT INSTAL New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
267 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | LE80E00002F2 | [1] | LIGHT INSTAL | |
| A1. | YN80S00012F1 | [2] | LIGHT | KOBASSY, SEE FIG. 01-075 Superseded by part number: 2456R442F1 |
| A2. | 2416T13056 | [2] | BRACKET | KOB |
| A3. | ZS18C10020 | [2] | SCREW,Hex, M10 x 20mm | KOBCap |
| A4. | 2418R323D11 | [2] | WASHER | KOB |
| A5. | 2418R323D13 | [2] | LOCK WASHER | KOB |
| . . | LE15E00001F3 | [1] | HARNESS ASSY, BOOM | |
| B3. | YT15E01001D1 | [1] | HARNESS | KOB |
