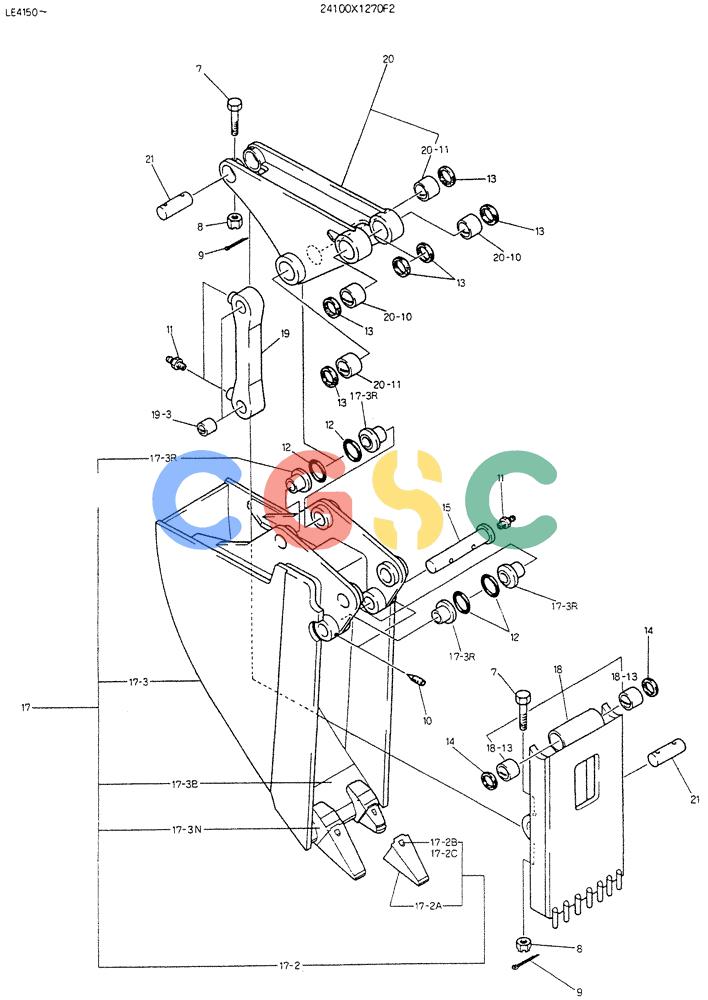

神钢零件查询(K903B) - EXCAVATOR ASN LE3401 (1/85-12/03) (09-014) - BUCKET ASSY, EJECTOR P/N 24100X1270F2 Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
655 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100X1270F2 | [1] | BUCKET ASSY, EJECTOR | |
| 7. | 2420T2446 | [4] | CAPSCREW | |
| 8. | ZN21C12015 | [4] | NUT | |
| 9. | ZP15D03025 | [4] | COTTER PIN | KOB Superseded by part number: ZP15D03035 |
| 10. | ZS83C12018 | [2] | SETSCREW | |
| 11. | ZG91S02000 | [3] | LUBE NIPPLE,1/8" NPT x 1/8" NPT | KOB1/8" PT -- Straight |
| 12. | 2445Z912 | [4] | O-RING | KOBID 90 ± 0.40 x OD 108mm |
| 13. | 2445R138D1 | [6] | SEAL,50mm ID x 65mm OD x 4mm Thk | KOBDust -- ID 50 x OD 65 x Th 4mm |
| 14. | 2445R138D5 | [2] | SEAL,40mm ID x 50mm OD x 4mm Thk | KOBDust -- ID 40 x OD 50 x Th 4mm |
| 15. | 2419P1589 | [1] | PIN | PIN |
| 17. | 24100P92DF2 | [1] | BUCKET ASSY | |
| 17-2. | B12P0015F1 | [2] | TOOTH | KOB |
| 17-2A. | B12P0015E1 | [1] | BUCKET TOOTH POINT | KOB |
| 17-2B. | B12P0015E2 | [1] | PIN | KOB Superseded by part number: 2412Z162K |
| 17-2C. | B12P0015E3 | [1] | LOCK PIN | KOB Superseded by part number: B12P0015E3MK |
| 17-3. | 2412J58DF1 | [1] | BUCKET, HOE | |
| 17-3B. | 2412T231 | [1] | EDG, CUTTING | |
| 17-3N. | 2412N214 | [2] | ADAPTER | KOB |
| 17-3R. | 2405T873 | [4] | BUSHING | KOB |
| 18. | 2412J579F1 | [1] | EJECTOR | |
| 18-13. | 2405T630C2 | [2] | BUSHING | |
| 19. | 2412P413F1 | [1] | LINK, EJECTOR | |
| 19-3. | 2405T1013 | [2] | BUSHING | |
| 20. | 2412N341F1 | [1] | LINK, BUCKET | |
| 20-10. | 2405T596C2 | [2] | BUSHING | KOB |
| 20-11. | 2405T594C2 | [2] | BUSHING | KOB |
| 21. | 2419T3654 | [2] | PIN | |
