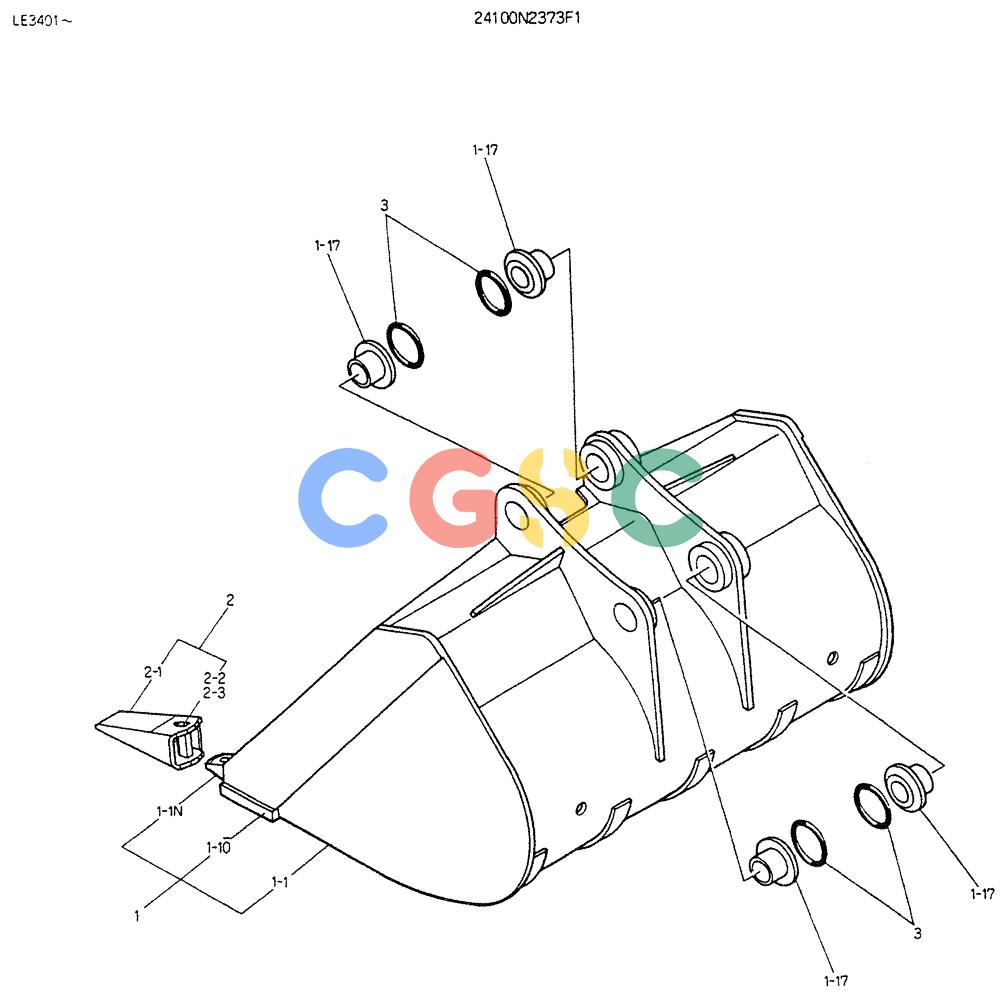

神钢零件查询(K903B) - EXCAVATOR ASN LE3401 (1/85-12/03) (09-023) - BUCKET ASSY, 0.35M P/N 24100N2373F1 Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
705 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100N2373F1 | [1] | BUCKET ASSY | |
| 1. | 2412J496F1 | [1] | BUCKET | |
| 1-1. | 2412J496 | [1] | BUCKET | |
| 1-1N. | 2412N214 | [4] | ADAPTER | KOB |
| 1-10. | 2412T290 | [1] | EDGE, CUTTING | |
| 1-17. | 2405T873 | [4] | BUSHING | KOB |
| 2. | B12P0015F1 | [4] | TOOTH | KOBASSY |
| 2-1. | B12P0015E1 | [1] | BUCKET TOOTH POINT | KOB |
| 2-2. | B12P0015E2 | [1] | PIN | KOB Superseded by part number: 2412Z162K |
| 2-3. | B12P0015E3 | [1] | LOCK PIN | KOB Superseded by part number: B12P0015E3MK |
| 3. | 2445Z912 | [4] | O-RING | KOBID 90 ± 0.40 x OD 108mm |
