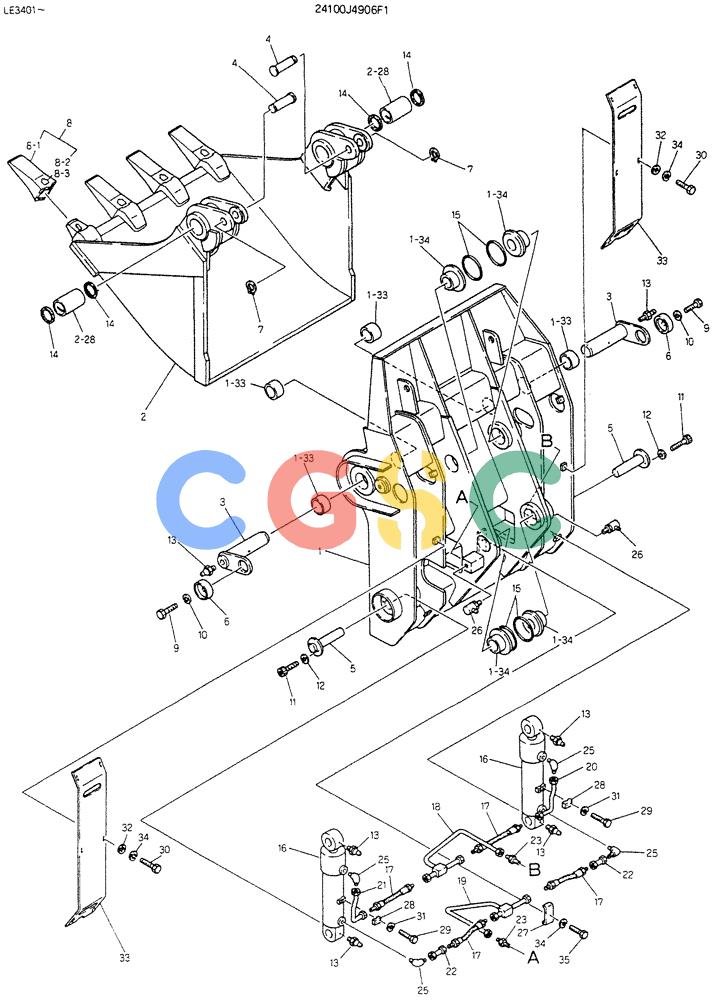

神钢零件查询(K903B) - EXCAVATOR ASN LE3401 (1/85-12/03) (09-025) - BUCKET ASSY, 0.27 M3 P/N 24100J4906F1 Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
938 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100J4906F1 | [1] | BUCKET ASSY | |
| 1. | 2412J554F1 | [1] | BUCKET, RE | |
| 1-33. | 2405T995 | [4] | BUSHING | |
| 1-34. | 2405T873 | [4] | BUSHING | KOB |
| 2. | 2412J555F1 | [1] | BUCKET, RE | |
| 2-28. | 2405T996 | [2] | BUSHING | |
| 3. | 2419T3572 | [2] | PIN | |
| 4. | 2419T3574 | [2] | PIN | |
| 5. | 2419T3575 | [2] | PIN | |
| 6. | 2414T1959 | [2] | COVER | |
| 7. | ZR16X03500 | [2] | RING | KOBRetaining -- ID 32.20 x OD 35 x Th 1.6mm |
| 8. | B12P0015F1 | [4] | TOOTH | KOB |
| 8-1. | B12P0015E1 | [1] | BUCKET TOOTH POINT | KOB |
| 8-2. | B12P0015E2 | [1] | PIN | KOB Superseded by part number: 2412Z162K |
| 8-3. | B12P0015E3 | [1] | LOCK PIN | KOB Superseded by part number: B12P0015E3MK |
| 9. | ZS13C16032 | [2] | CAPSCREW | |
| 10. | ZW22X16000 | [2] | WASHER, LOCK | KOBID 16 x OD 28.0 x Th 4.0mm |
| 11. | ZS23C10022 | [4] | CAPSCREW | |
| 12. | ZW22X10000 | [4] | LOCK WASHER | KOBID 10 x OD 18.4 x Th 2.5mm Superseded by part number: ZW26X10000 |
| 13. | ZG91S02000 | [6] | LUBE NIPPLE,1/8" NPT x 1/8" NPT | KOB1/8" PT -- Straight |
| 14. | 2445R220D5 | [4] | SEAL,50mm ID x 65mm OD x 5mm Thk | KOBDust -- ID 50 x OD 65 x Th 5mm Superseded by part number: 71436184 |
| 15. | 2445Z912 | [4] | O-RING | KOBID 90 ± 0.40 x OD 108mm |
| 16. | 24380723F1 | [2] | CYLINDER | |
| 17. | 2444R893D1 | [4] | HOSE | |
| 18. | 2418P9736 | [1] | TUBE | |
| 19. | 2418P9737 | [1] | TUBE | |
| 20. | 2418P9738D1 | [1] | TUBE | |
| 21. | 2418P9738D2 | [1] | TUBE | |
| 22. | 2418P9739D1 | [2] | TUBE | |
| 23. | ZK23E18008 | [2] | HYD CONNECTOR | KOB Superseded by part number: ZF23E18008 |
| 25. | ZK33E10004 | [4] | ELBOW | |
| 26. | 2444R894F1 | [2] | JOINT, SWIVEL | |
| 27. | 2432T1771 | [1] | CLAMP | |
| 28. | 2432T1772 | [2] | CLAMP | |
| 29. | ZS13C06025 | [4] | SCREW | KOBM06x1.0x25mm Superseded by part number: ZS18C06025 |
| 30. | ZS13C10025 | [12] | CAPSCREW | KOBSCREW M10x1.50x25mm Superseded by part number: ZS18C10025 |
| 31. | ZW22X06000 | [4] | LOCK WASHER ID 06 x OD 12.2 x Th 1.5mm | LOCK WASHER ID 06 x OD 12.2 x Th 1.5mm |
| 32. | ZW11X10000 | [12] | WASHER | KOBID 10 x OD 21 x Th 2.0mm Superseded by part number: ZW16X10000 |
| 33. | 2414T1960 | [2] | COVER | |
| 34. | ZW22X10000 | [13] | LOCK WASHER | KOBID 10 x OD 18.4 x Th 2.5mm Superseded by part number: ZW26X10000 |
| 35. | ZS13C10020 | [1] | SCREW | KOBM10x1.50x20mm Superseded by part number: ZS18C10020 |
