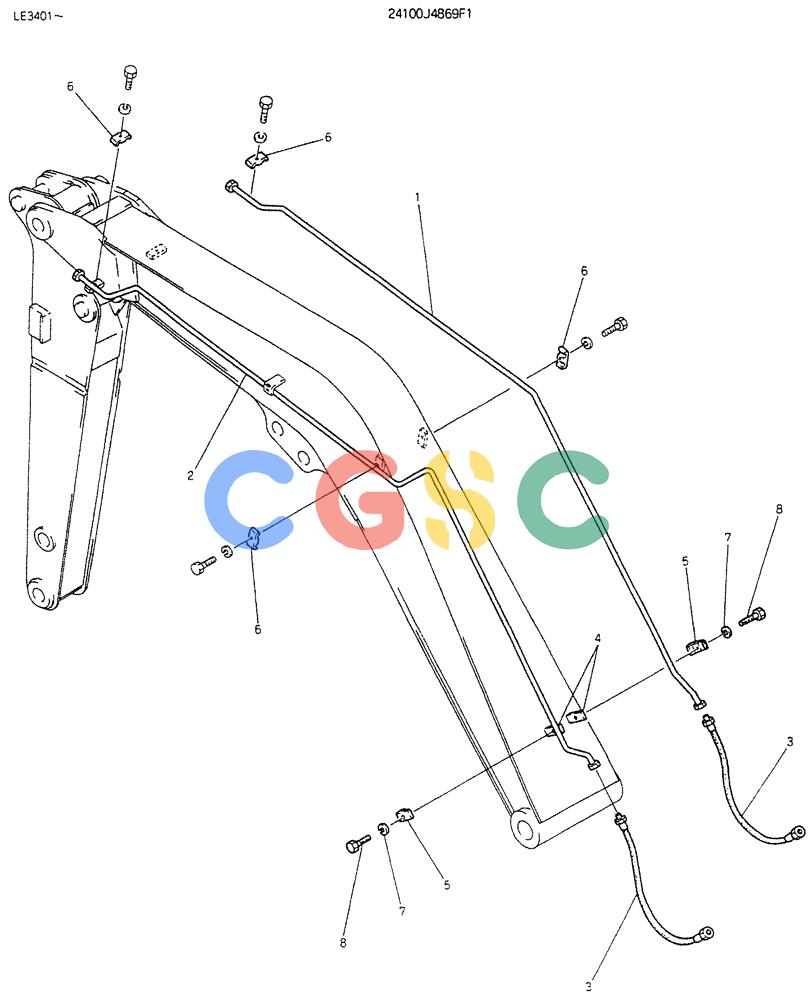

神钢零件查询(K903B) - EXCAVATOR ASN LE3401 (1/85-12/03) (09-026) - INSTAL HYDR LINES, BOOM 3.0 M P/N 24100J4869F1 Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
791 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100J4869F1 | [1] | INSTAL, HYDR LINES. | |
| 1. | 2418T10331 | [1] | TUBE | |
| 2. | 2418T10332 | [1] | TUBE | |
| 3. | ZX27008060 | [2] | HOSE | |
| 4. | 2416T9899 | [2] | BLOCK | KOBBLOCK, TAPPED |
| 5. | ZC26X18011 | [2] | CLAMP | KOB Superseded by part number: ZC26M18011 |
| 6. | ZC36X18011 | [4] | CLAMP | KOB |
| 7. | ZW22X10000 | [2] | LOCK WASHER | KOBID 10 x OD 18.4 x Th 2.5mm Superseded by part number: ZW26X10000 |
| 8. | ZS13C10040 | [2] | SCREW | KOBM10x1.50x40mm Superseded by part number: ZS18C10040 |
