神钢零件查询(K903B) - EXCAVATOR ASN LE3401 (1/85-12/03) (11-003) - HYDR LINES, EXTRA BOOM 3.65M (FOR EXPORT) P/N 24100J5097F1 Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
916 次

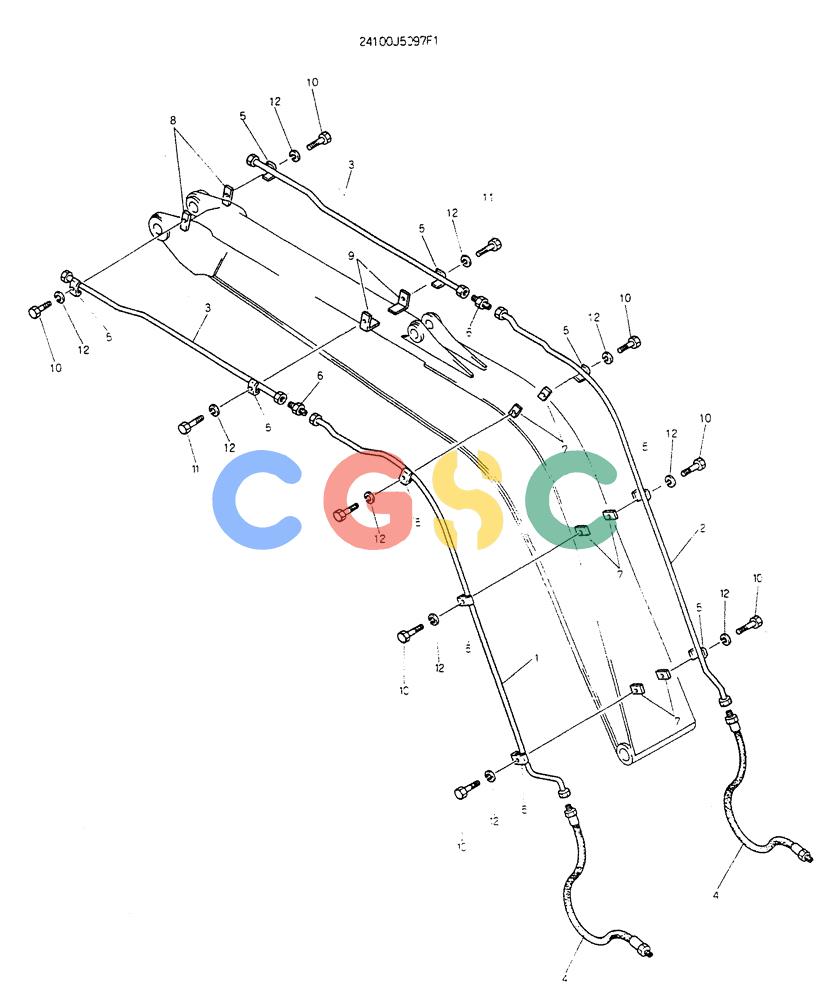

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100J5097F1 | [1] | INSTAL, HYDR LINES | |
| 1. | 2418P9921 | [1] | TUBE | |
| 2. | 2418P9922 | [1] | TUBE | |
| 3. | 2418P9923 | [2] | TUBE | |
| 4. | ZX28N08060 | [2] | HOSE | |
| 5. | 2432T1773 | [10] | CLAMP | KOB |
| 6. | ZK23B15000 | [2] | HYD CONNECTOR | KOBELBOW |
| 7. | 2416T10888D1 | [6] | BLOCK, TAPPED | |
| 8. | 2416T10903 | [2] | BLOCK, TAPPED | |
| 9. | 2416T11066 | [2] | BRACKET | |
| 10. | ZS13C08038 | [8] | SCREW | KOBM08x1.25x38mm Superseded by part number: ZS18C08040 |
| 11. | ZS13C08032 | [2] | CAPSCREW | |
| 12. | ZW22X08000 | [10] | LOCK WASHER | KOBID 08 x OD 15.4 x Th 2.0mm Superseded by part number: 83990583 |
