神钢零件查询(K903B) - EXCAVATOR ASN LE3401 (1/85-12/03) (11-002) - HYDR LINES, EXTRA BOOM 3.65M (FOR EXPORT) P/N 24100J4939F1 Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
233 次

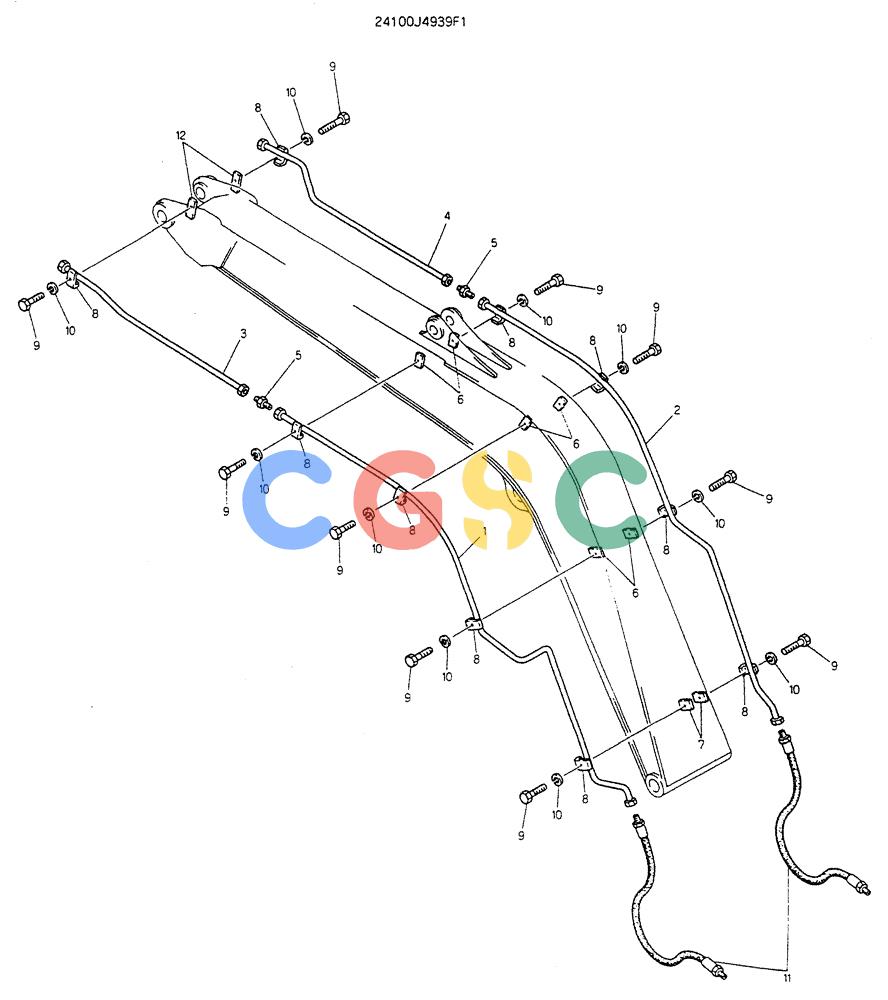

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100J4939F1 | [1] | INSTAL, HYDR LINES | |
| 1. | 2418T10479 | [1] | TUBE | |
| 2. | 2418T10480 | [1] | TUBE | |
| 3. | 2418T10481 | [1] | TUBE | |
| 4. | 2418T10482 | [1] | TUBE | |
| 5. | NSS | [2] | NOT SOLD SEPARAT | CONCONNECTOR |
| 6. | 2416T10887 | [6] | BLOCK | KOB |
| 7. | 241AT10903 | [2] | BLOCK, TAPPED | |
| 8. | 2432T1773 | [10] | CLAMP | KOB |
| 9. | ZS11C08035 | [10] | CAPSCREW | |
| 10. | ZW22X08000 | [10] | LOCK WASHER | KOBID 08 x OD 15.4 x Th 2.0mm Superseded by part number: 83990583 |
| 11. | ZX27N06060 | [2] | HOSE | |
| 12. | 2416T10955D2 | [2] | BLOCK, TAPPED | |
