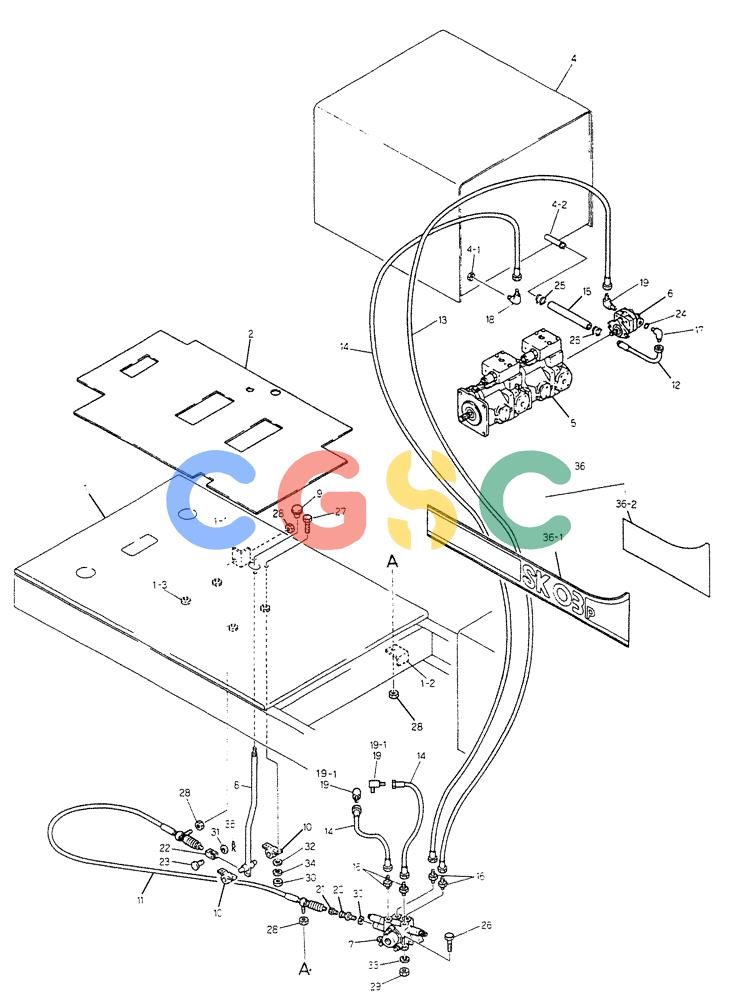

神钢零件查询(K903B) - EXCAVATOR ASN LE3401 (1/85-12/03) (11-009) - CONTROL ASSY (DOZER), P/N 24100J4893F1 Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
966 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100J4893F1 | [1] | CONTROL ASSY | |
| 1. | 2422N660 | [1] | DECK, SIDE | |
| 1-1. | 2416T10839 | [1] | BRACKET | |
| 1-2. | 2416T10840 | [1] | BRACKET | |
| 1-3. | ZN11C10008 | [5] | NUT | KOBM10x1.50mm Superseded by part number: ZN18C10008 |
| 2. | 2427R424 | [1] | MAT, FLOOR | |
| 4. | 2427P1801 | [1] | TANK | |
| 4-1. | 2444T7002 | [1] | COUPLING PIPE | |
| 4-2. | 2418T10389 | [1] | TUBE | |
| 5. | 2441U507F1 | [1] | PUMP, HYDR | |
| 6. | 2437U157F1 | [1] | HYDRAULIC PUMP | KOB |
| 7. | 2436U880F2 | [1] | CONTROL VALVE | KOB |
| 8. | 2406P2480 | [1] | LEVER, CONTROL | |
| 9. | 6Z1 | [1] | LEVER | KOB |
| 10. | 2425R145D1 | [2] | BLOCK, BEARING | |
| 11. | 2406R176D9 | [1] | WIRE HARNESS | KOBCONTROL |
| 12. | 2418P7062 | [1] | TUBE | TUBE |
| 13. | ZX25M06160 | [1] | HOSE | KOB |
| 14. | ZX25M06100 | [3] | FLEXIBLE HOSE | KOB |
| 15. | R18P0168D43 | [1] | HOSE | KOB |
| 16. | ZH22X06008 | [4] | HYD CONNECTOR | KOB3/8"PFx1/2"PFx42.5mm Long (Incls. O-Ring ZD12P02400) |
| 17. | ZF33F22012 | [1] | ELBOW | KOB |
| 18. | ZH32Z06000 | [1] | ELBOW | KOB |
| 19. | ZH32X06000 | [3] | 90 ELBOW,Male, 30 Degree Fl, PF 3/8" x PF 3/8", O-Ring | KOBElbow, 90° -- (Incls. O-Ring ZD12P01400) Alternate O-Ring 237-6006 |
| 19-1. | ZD12P01400 | [1] | O-RING | KOBID 13.80 ± 0.19 x OD 18mm |
| 20. | 2420Z681 | [1] | ROD | KOB |
| 21. | 2420T4065 | [1] | STUD | KOB |
| 22. | 2406T1385 | [1] | YOKE | KOB, Serial Range: LE3401-LE4102 Superseded by part number: 2406T2278 |
| 22. | 2406T1672 | [1] | YOKE | KOB, Start Serial: LE4103 Superseded by part number: 2406T2278 |
| 23. | ZP45X12030 | [1] | PIN | KOB, Serial Range: LE3401-LE4102 |
| 23. | 2419T3642D1 | [1] | PIN | KOB, Start Serial: LE4103 Superseded by part number: 2419T3784D1 |
| 24. | ZD12P02240 | [1] | O-RING | KOBID 22.10 ± 0.24 x OD 28.4mm |
| 25. | ZC15X03300 | [4] | CLIP | KOB |
| 26. | ZS23C10035 | [3] | SCREW,Hex Socket Head, M10 x 35mm | KOBM10x1.50x35mm |
| 27. | ZS16C08022 | [4] | CAPSCREW | |
| 26. | ZN16C12010 | [4] | NUT | KOB Superseded by part number: ZN18C12010 |
| 29. | ZN16C10008 | [3] | NUT | KOBM10x1.50mm Superseded by part number: ZN18C10008 |
| 30. | ZN16C08007 | [5] | NUT | KOBM08x1.25mm Superseded by part number: ZN18C08007 |
| 31. | ZW16X12000 | [1] | WASHER | KOBID 12 x OD 24 x Th 2.3mm |
| 32. | ZW16X08000 | [4] | WASHER,8mm ID x 17mm OD x 1.6mm Thk | KOBID 08 x OD 17 x Th 1.6mm |
| 33. | ZW22X10000 | [3] | LOCK WASHER | KOBID 10 x OD 18.4 x Th 2.5mm Superseded by part number: ZW26X10000 |
| 34. | ZW22X08000 | [4] | LOCK WASHER | KOBID 08 x OD 15.4 x Th 2.0mm Superseded by part number: 83990583 |
| 35. | 2419R9D4 | [1] | COTTER PIN | KOBSnap -- OD 12mm x 35.8mm Long |
| 36. | 2432P994F1 | [1] | LABEL, NAME-PLATE | |
| 36-1. | 2432J1007 | [1] | NAME-PLATE | |
| 36-2. | 2432J1006 | [1] | NAME-PLATE | |
