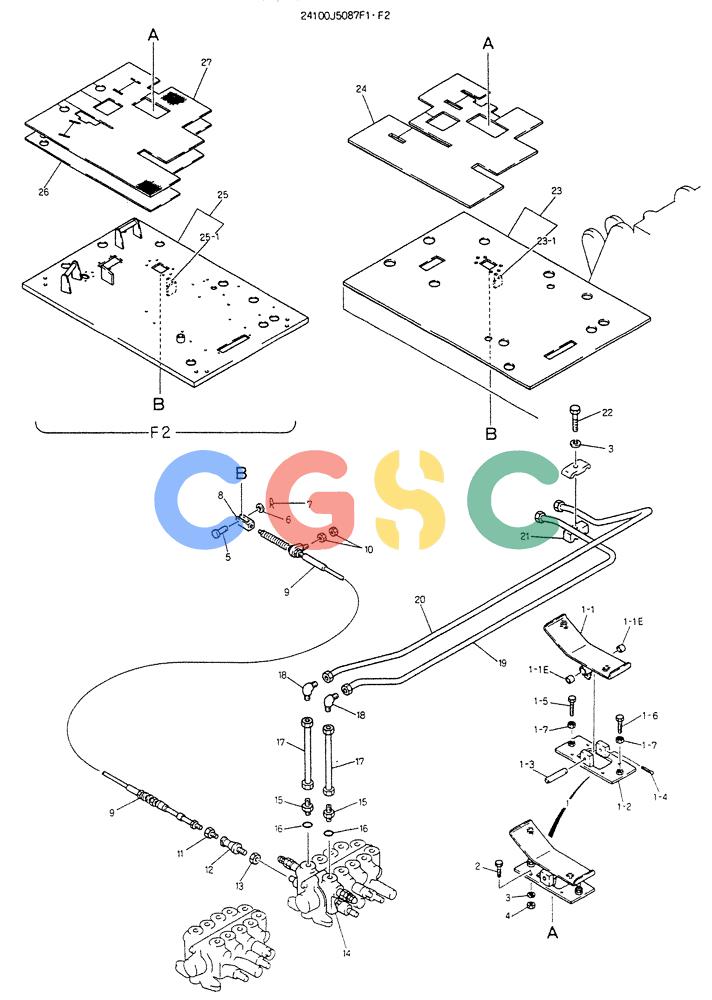

神钢零件查询(K903B) - EXCAVATOR ASN LE3401 (1/85-12/03) (11-008) - CONTROL ASSY (SIDE DIGGING) (FOR EXPORT) P/N 24100J5087F1 Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
652 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100J5087F1 | [1] | CONTROL ASSY LE3401, Serial Range: -LE4498 | |
| . . | 24100J5087F2 | [1] | CONTROL ASSY, Start Serial: LE4499 | |
| 1. | 24100N2408F1 | [1] | PEDAL ASSY | PEDAL ASSY |
| 1-1. | 2406P2467F1 | [1] | PEDAL | |
| 1-1E. | 2405T975 | [2] | BUSHING | |
| 1-2. | 2416P7165 | [1] | BRACKET | |
| 1-3. | 2419T3412 | [1] | PIN | |
| 1-4. | ZP15D04063 | [1] | SPLIT PIN | |
| 1-5. | ZS16C12060 | [1] | CAPSCREW M12x1.75x60mm | CAPSCREW M12x1.75x60mm |
| 1-6. | ZS16C12040 | [1] | SCREW | KOBM12x1.75x40mm Superseded by part number: ZS18C12040, 77276427 |
| 1-7. | ZN16C12010 | [2] | NUT | KOB Superseded by part number: ZN18C12010 |
| 2. | ZS13C10025 | [4] | CAPSCREW | KOBSCREW M10x1.50x25mm Superseded by part number: ZS18C10025 |
| 3. | ZW22X10000 | [5] | LOCK WASHER | KOBID 10 x OD 18.4 x Th 2.5mm Superseded by part number: ZW26X10000 |
| 4. | ZN17C10008 | [4] | NUT | KOBM10x1.50mm Superseded by part number: ZN18C10008 |
| 5. | 2419T3642D1 | [1] | PIN | KOB Superseded by part number: 2419T3784D1 |
| 6. | ZW16X12000 | [1] | WASHER | KOBID 12 x OD 24 x Th 2.3mm |
| 7. | 2419R9D4 | [1] | COTTER PIN | KOBSnap -- OD 12mm x 35.8mm Long |
| 8. | 2406T1672 | [1] | YOKE | KOB Superseded by part number: 2406T2278 |
| 9. | 2406R219D1 | [1] | FLEXIBLE CONTROL | KOB |
| 10. | ZN16C12007 | [2] | NUT | NUT |
| 11. | 2420T4065 | [1] | STUD | KOB |
| 12. | 2420Z681 | [1] | ROD | KOB |
| 13. | ZN16C08007 | [1] | NUT | KOBM08x1.25mm Superseded by part number: ZN18C08007 |
| 14. | 2436R558F1 | [1] | VALVE KIT, CONTROL | |
| 15. | ZK23F18008 | [2] | HYD CONNECTOR | KOB |
| 16. | ZD12P01800 | [2] | O-RING | KOBID 17.8mm x OD 20.2mm |
| 17. | 2418T10192D1 | [2] | TUBE | |
| 18. | ZK33B18000 | [2] | ELBOW | |
| 19. | 2418P9976 | [1] | TUBE | |
| 20. | 2418P9975 | [1] | TUBE | |
| 21. | 2432T1712 | [1] | CLAMP | |
| 22. | ZS13C10085 | [1] | SCREW | KOBM10x1.50x85mm Superseded by part number: ZS18C10085 |
| 23. | 2422P615 | [1] | PLATE, FLOOR, Serial Range: LE3401-LE4498 | |
| 23-1. | 2416T10980 | [1] | BRACKET | |
| 24. | 2427R448 | [1] | MAT, FLOOR, Serial Range: LE3401-LE4498 | |
| 25. | 2422P625 | [1] | PLATE, FLOOR, Start Serial: LE4499 | |
| 25-1. | 2416T12844 | [1] | BRACKET | |
| 26. | 2427R470 | [1] | MAT, FLOOR, Start Serial: LE4499 | |
| 27. | 2427R471 | [1] | MAT, FLOOR, Start Serial: LE4499- | |
