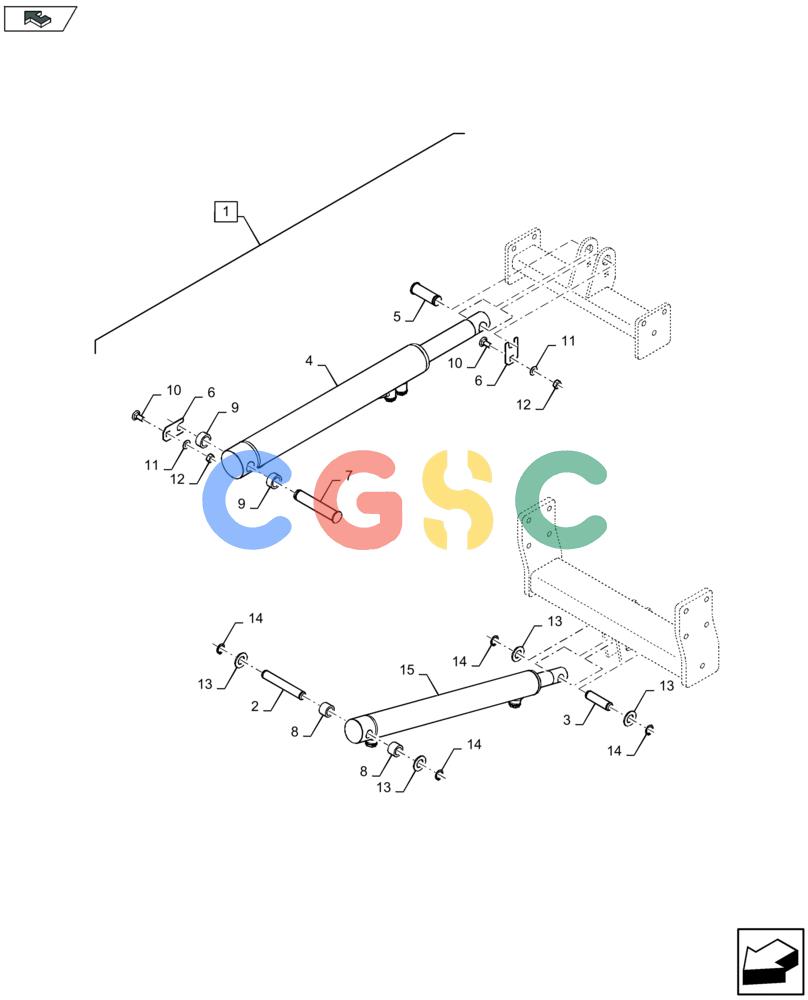

凯斯零件查询(LB424R) - BALER (9/12-) (88.070.011[02]) - SERVICE KIT : STANDARD AND PARTIAL BALE EJECTION MECHANISM - C084 Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
606 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
47639120
|
[1] |
KIT
|
ZED
Incl 2 - 15
|
| 2. |
84529169
|
[1] |
SHAFT,20mm OD x 135mm L
|
ZED
|
| 3. |
87491174
|
[1] |
SHAFT
|
ZED
|
| 4. |
47466446
|
[1] |
HYDRAULIC CYLINDER
|
ZED
|
| 5. |
84571834
|
[1] |
SHAFT,25mm OD x 79mm L
|
ZED
|
| 6. |
84571856
|
[2] |
PLATE
|
ZED
|
| 7. |
84571826
|
[1] |
SHAFT,25mm OD x 137mm L
|
ZED
|
| 8. |
84571868
|
[2] |
SLEEVE,20mm ID x 30mm OD x 21mm L
|
ZED
|
| 9. |
84571865
|
[2] |
SPACER,25mm ID x 35mm OD x 16mm L
|
ZED
|
| 10. |
338949
|
[2] |
CARRIAGE BOLT,M10 x 1.5 x 25mm, Cl 8.8
|
NH
|
| 11. |
140045
|
[2] |
BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk
|
NH
|
| 12. |
100016
|
[2] |
NUT,M10 x 1.5, Cl 8
|
NH
|
| 13. |
378247
|
[4] |
WASHER,21mm ID x 39mm OD x 3mm Thk
|
ZED
|
| 14. |
370024
|
[4] |
CIRCLIP,M20, Ext
|
NH
|
| 15. |
47655770
|
[1] |
HYDRAULIC CYLINDER
|
ZED
|
