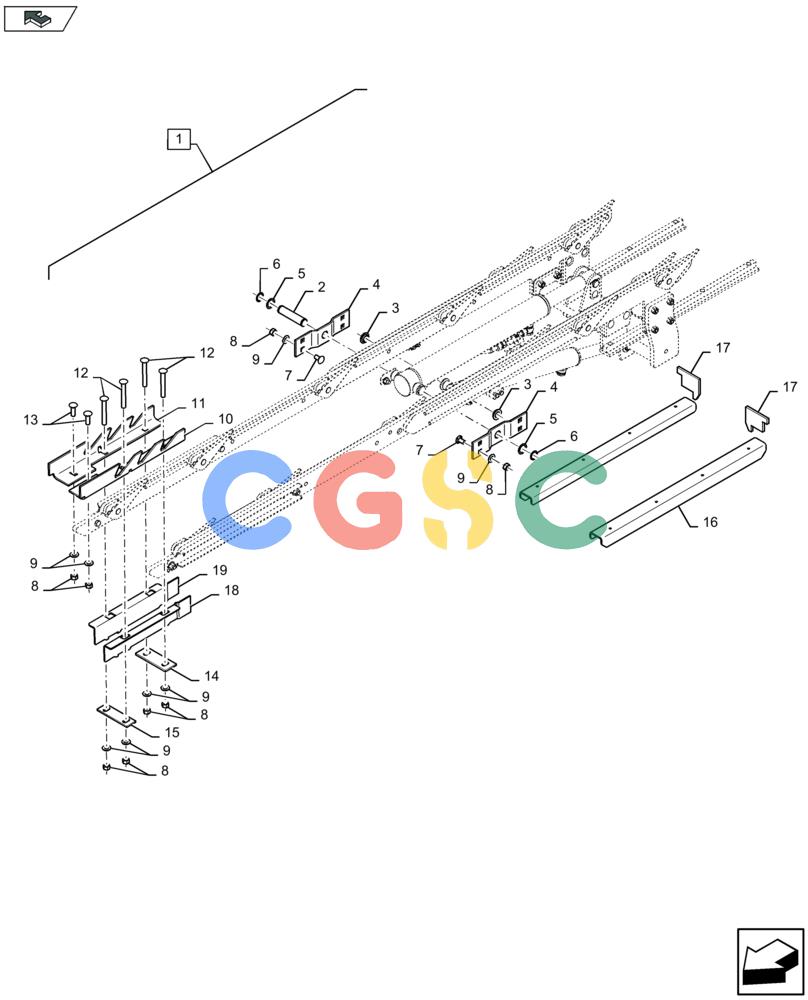

凯斯零件查询(LB424R) - BALER (9/12-) (88.070.011[03]) - SERVICE KIT : STANDARD AND PARTIAL BALE EJECTION MECHANISM - C084 Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
777 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
47639120
|
[1] |
KIT
|
ZED
Incl 2 - 19
|
| 2. |
84485687
|
[1] |
SHAFT
|
ZED
|
| 3. |
84576457
|
[2] |
SLEEVE
|
ZED
|
| 4. |
84485729
|
[2] |
BRACKET
|
ZED
|
| 5. |
338206
|
[2] |
WASHER,26mm ID x 35mm OD x 2mm Thk
|
ZED
|
| 6. |
370002
|
[2] |
CIRCLIP,M25, External
|
NH
|
| 7. |
374895
|
[6] |
CARRIAGE BOLT,M12 x 1.75 x 25mm, Cl 8.8
|
NH
|
| 8. |
9706685
|
[18] |
NUT,M12 x 1.75, Cl 8
|
NH
|
| 9. |
140046
|
[18] |
BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk
|
NH
|
| 10. |
47459030
|
[2] |
GUIDE
|
ZED
|
| 11. |
47459033
|
[2] |
GUIDE
|
ZED
|
| 12. |
47480247
|
[8] |
CARRIAGE BOLT,Short Sq Nk, M12 x 1.75 x 100mm, Cl 8.8
|
ZED
|
| 13. |
328754
|
[4] |
CARRIAGE BOLT,M12 x 1.75 x 40mm, Cl 8.8
|
NH
|
| 14. |
47459152
|
[2] |
SLAT
|
ZED
|
| 15. |
47459149
|
[2] |
SLAT
|
ZED
|
| 16. |
47489554
|
[2] |
PROFILE
|
ZED
|
| 17. |
47489588
|
[2] |
PLATE
|
ZED
|
| 18. |
47440630
|
[2] |
REINFORCEMENT
|
ZED
|
| 19. |
47440628
|
[2] |
REINFORCEMENT
|
ZED
|
