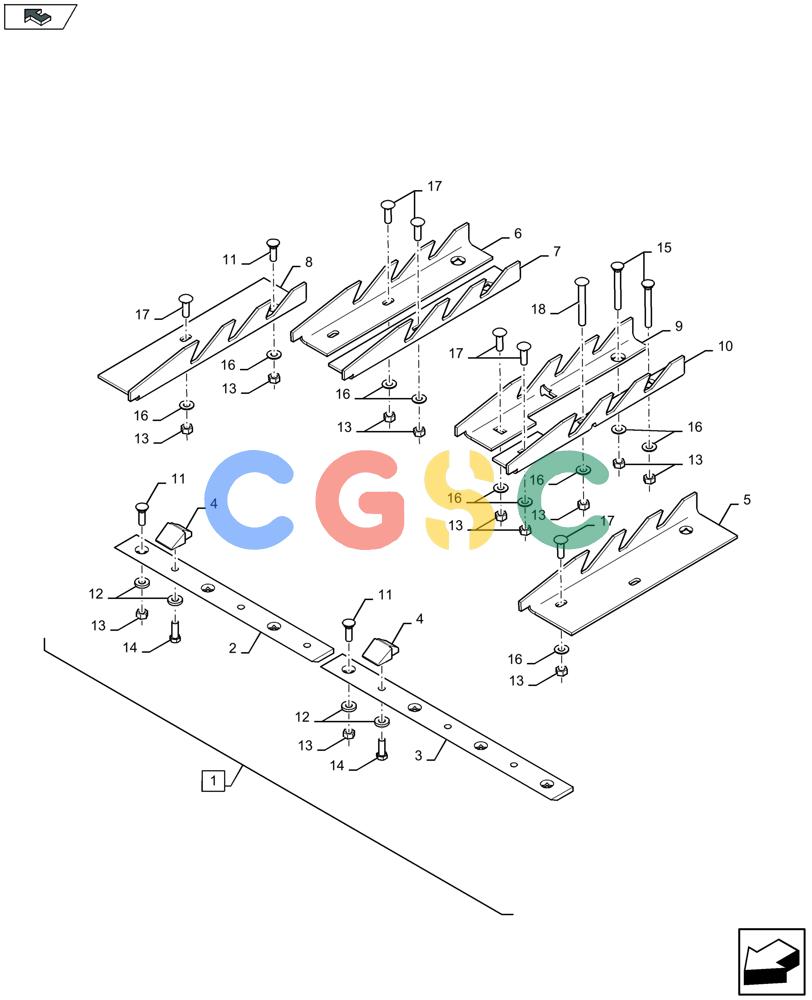

凯斯零件查询(LB424R) - BALER (9/12-) (88.070.013[01]) - DIA KIT: FIXED KNIFE & HAY-DOGS - STONE KIT - D099 Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
698 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
47506760
|
[1] |
DIA KIT, HARVESTER
|
ATT
Incl 2 - 18
|
| 2. |
84814538
|
[1] |
KNIFE,540mm L x 60mm W x 10mm Thk
|
ZED
|
| 3. |
84814537
|
[1] |
KNIFE,630mm L x 60mm W x 10mm Thk
|
ZED
|
| 4. |
47429062
|
[6] |
GUIDE
|
ZED
|
| 5. |
47497510
|
[1] |
GUIDE
|
ZED
|
| 6. |
47495521
|
[3] |
GUIDE
|
ZED
|
| 7. |
47495519
|
[3] |
GUIDE
|
ZED
|
| 8. |
47497512
|
[1] |
GUIDE
|
ZED
|
| 9. |
47495170
|
[2] |
GUIDE
|
ZED
|
| 10. |
47495168
|
[2] |
GUIDE
|
ZED
|
| 11. |
380420
|
[15] |
BOLT
|
NH
|
| 12. |
87376144
|
[13] |
WASHER,13mm ID x 28mm OD x 5mm Thk
|
FLX
|
| 13. |
9706685
|
[43] |
NUT,M12 x 1.75, Cl 8
|
NH
|
| 14. |
9824642
|
[6] |
BOLT,M12 x 1.75 x 42.68mm, Cl 10.9
|
BHB
Superseded by part number: 626-12035
|
| 15. |
47510146
|
[4] |
PLOW BOLT,M12 x 100, Cl 8.8
|
ZED
|
| 16. |
140046
|
[36] |
BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk
|
NH
|
| 17. |
328754
|
[20] |
CARRIAGE BOLT,M12 x 1.75 x 40mm, Cl 8.8
|
NH
|
| 18. |
47480247
|
[4] |
CARRIAGE BOLT,Short Sq Nk, M12 x 1.75 x 100mm, Cl 8.8
|
ZED
|
