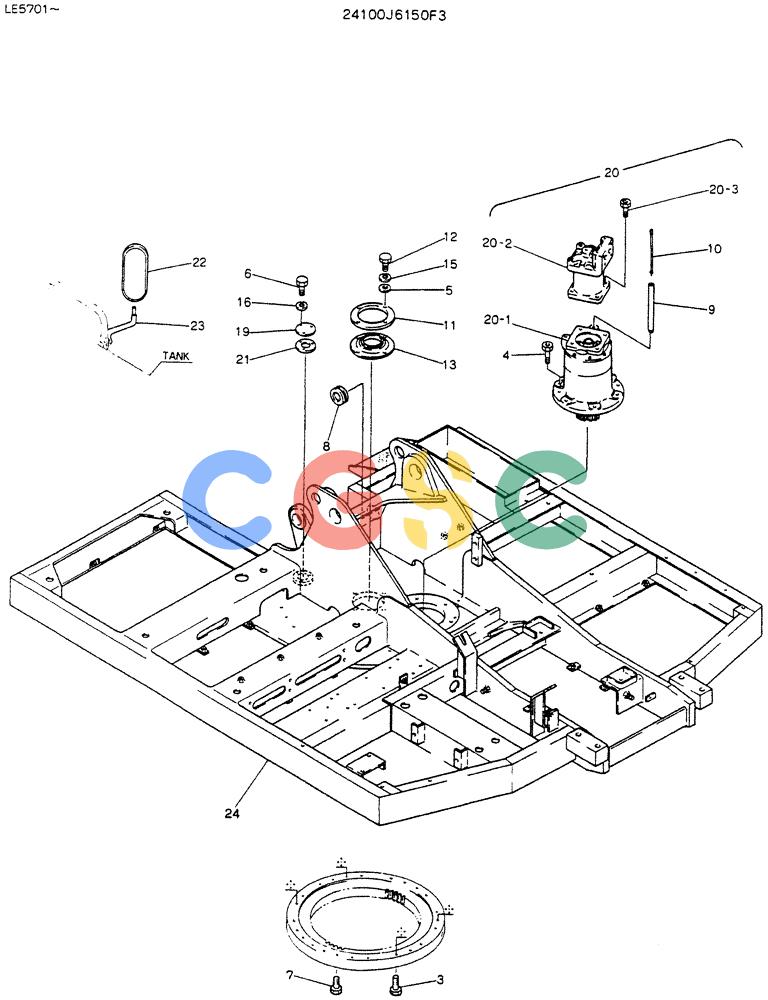

神钢零件查询(K903C) - EXCAVATOR ASN LE5701 (1/87-12/03) (00-002) - FRAME ASSY, UPP, P/N 24100J6150F3 Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
127 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100J6150F3 | [1] | FRAME ASSY, UPP | |
| 3. | 2420T3453D2 | [4] | CAPSCREW | KOBSCREW CAP |
| 4. | ZS13C16050 | [6] | SCREW | KOBM16x2.0x50mm |
| 5. | ZW16X08000 | [4] | WASHER,8mm ID x 17mm OD x 1.6mm Thk | KOBID 08 x OD 17 x Th 1.6mm |
| 6. | ZS18C06014 | [3] | SCREW,Hex, M6 x 14mm | KOBM06x1.0x14mm |
| 7. | ZS13C16090 | [20] | CAPSCREW | KOBSCREW M16x2.0x90mm |
| 8. | 2420T4256 | [1] | GROMMET | |
| 9. | 2420T4039C2D6 | [1] | PIPE | PIPE |
| 10. | 2420R502D1 | [1] | DIPSTICK | KOBGAUGE, LEVEL |
| 11. | 2414T1919 | [1] | CATALOG COVER | KOB |
| 12. | ZS13C08025 | [4] | SCREW | KOBM08x1.25x25mm Superseded by part number: ZS18C08025, 77276313 |
| 13. | 2414Z220C2 | [1] | COVER | KOBDUST |
| 15. | ZW26X08000 | [4] | LOCK WASHER | KOBLock -- ID 08 x OD 15 x Th 2.0mm Superseded by part number: 83990583 |
| 16. | ZW26X06000 | [3] | LOCK WASHER | KOBID 06 x OD 07 x Th 1.5mm |
| 19. | 2414T2758 | [1] | COVER | KOB |
| 20. | 24100J6266F1 | [1] | MOTOR ASSY, SWING | |
| 20-1. | 24100J6267F1 | [1] | HYDRAULIC MOTOR | KOBSEE FIGURE 00-006 |
| 20-2. | 2441U533F1 | [1] | HYDRAULIC MOTOR | KOB |
| 20-3. | ZS23C12035 | [4] | SCREW,Hex Socket Head, M12 x 35mm | KOBM12x1.75x35mm |
| 21. | 2416Z501 | [1] | PACKING | PACKING |
| 22. | 2456Z253 | [1] | MIRROR | KOBBACK |
| 23. | 2406P2568 | [1] | STAY | KOB |
| 24. | 24100J6425F1 | [1] | FRAME, UPP, SEE FIGURE 00-003 | |
