神钢零件查询(K903C) - EXCAVATOR ASN LE5701 (1/87-12/03) (00-003) - FRAME ASSY, UPP, P/N 24100J6425F1 Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
483 次

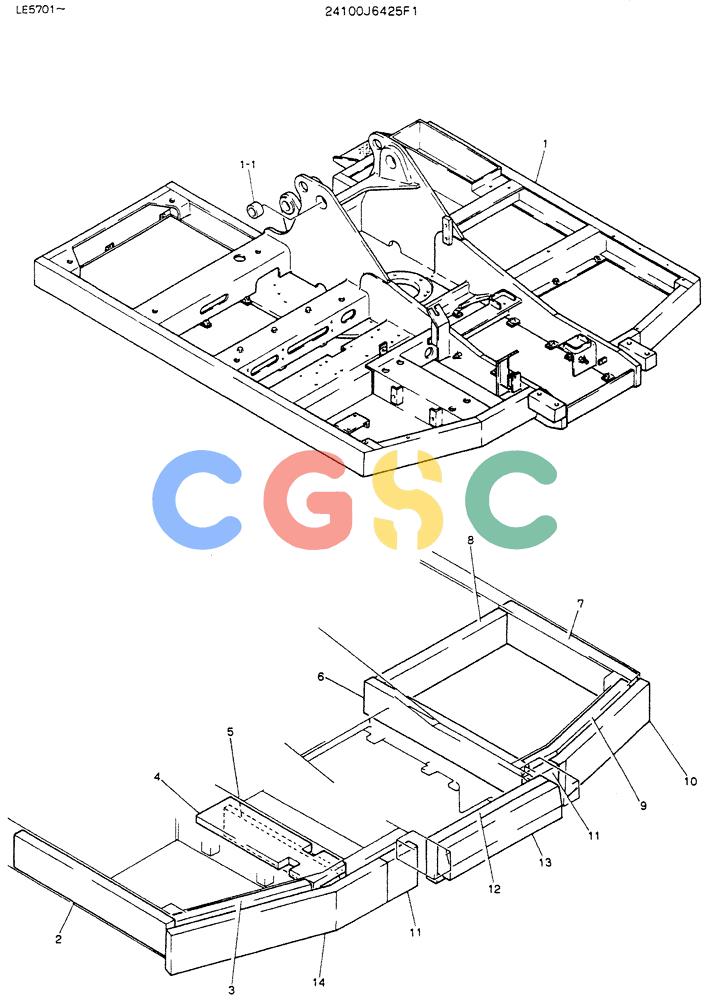

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100J6425F1 | [1] | FRAME, UPP | |
| 1. | 2422J1779 | [1] | FRAME, UPP | |
| 1-1. | 2405T1074 | [2] | BUSHING | KOB |
| 2. | 2479T1146 | [1] | INSULATION,SOUND | |
| 3. | 2479T1147 | [1] | INSULATION, SOUND | |
| 4. | 2479T1152 | [1] | INSULATION, SOUND | |
| 5. | 2479T1153 | [1] | INSULATION, SOUND | INSULATION, SOUND |
| 6. | 2479T1154 | [1] | INSULATION, SOUND | |
| 7. | 2479T1155 | [1] | INSULATION, SOUND | |
| 8. | 2479T1156 | [1] | INSULATION, SOUND | |
| 9. | 2479T1157 | [1] | INSULATION, SOUND | |
| 10. | 2479T1158 | [1] | INSULATION, SOUND | INSULATION, SOUND |
| 11. | 2479T1159 | [2] | INSULATION, SOUND | INSULATION, SOUND |
| 12. | 2479T1160 | [1] | INSULATION, SOUND | INSULATION, SOUND |
| 13. | 2479T1161 | [1] | INSULATION, SOUND | INSULATION, SOUND |
| 14. | 2479T1162 | [1] | INSULATION, SOUND | INSULATION, SOUND |
