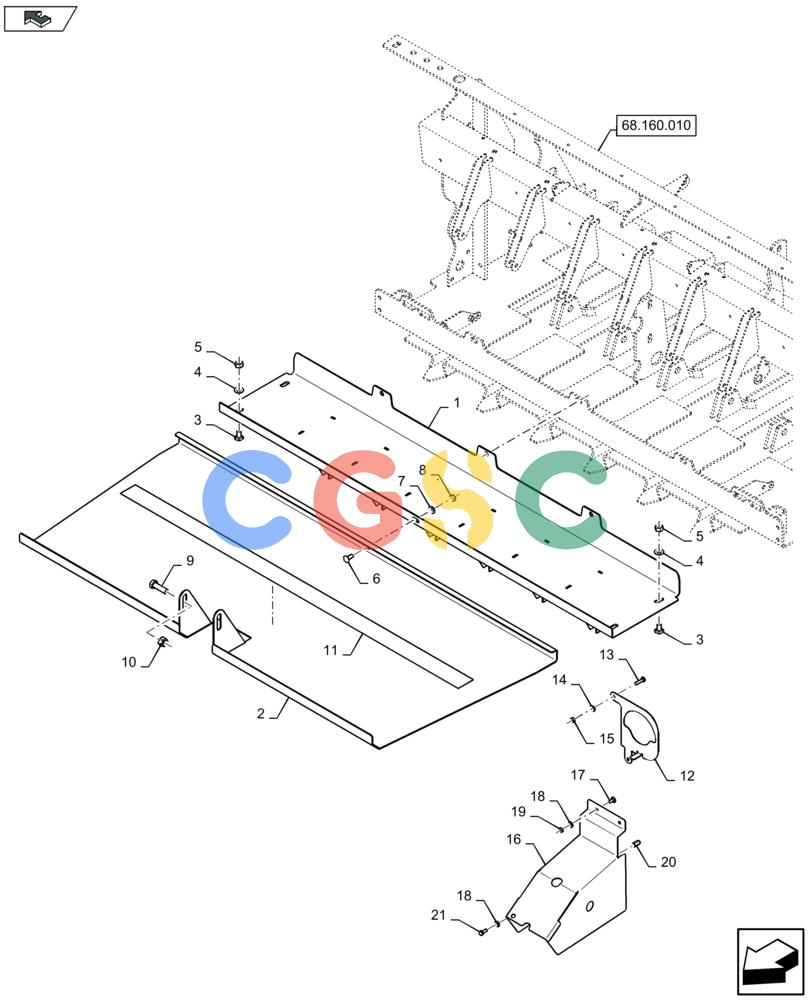

凯斯零件查询(LB424R) - BALER (9/12-) (90.105.010) - PLUNGER SHIELDINGS Case Agriculture

广数供应链运营团队, 15 02月, 2025，浏览： 985 次

Pos.	Part No	Qty	Parts name	Comments
1.	84540409	[1]	ANTI-WRAP PLATE	ZED
1.	84587256	[1]	ANTI-WRAP PLATE	ZED
1.	84540881	[1]	ANTI-WRAP PLATE	ZED
1.	84587369	[1]	ANTI-WRAP PLATE	ZED
2.	84534448	[1]	COVER PLATE	ZED
2.	84587375	[1]	COVER PLATE	ZED , Serial Range: -C140
2.	47858798	[1]	COVER	ZED , Start Serial: D141
2.	84534436	[1]	COVER PLATE	ZED
2.	84587264	[1]	COVER PLATE	ZED , Serial Range: -C140
2.	47858796	[1]	COVER	ZED , Start Serial: D141
3.	120041	[4]	CARRIAGE BOLT,M10 x 20mm, Cl 8.8	NH
4.	140045	[4]	BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk	NH
5.	100016	[4]	NUT,M10 x 1.5, Cl 8	NH
6.	86507486	[1]	CARRIAGE BOLT,M8 x 1.25 x 20mm, Cl 8.8	NH
7.	322358	[1]	BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk	NH
8.	9706690	[1]	NUT,M8 x 1.25, Cl 8	NH Superseded by part number: 43362
9.	86629541	[2]	BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8	NH
10.	100038	[2]	NUT,M12 x 1.75, Cl 8	NH
11.	401502	[1]	ANTI-SKID STRIP	ZED L=3.63M
12.	84425928	[1]	PLATE	ZED , Serial Range: -C084 Superseded by part number: 47417897
12.	84425926	[1]	PLATE	ZED , Serial Range: -C084
13.	86977786	[2]	BOLT,Hex, M6 x 1 x 25mm, Cl 8.8	GI , Serial Range: -C047
13.	86512439	[2]	CARRIAGE BOLT,M6 x 16mm, Cl 8.8	NH , Serial Range: -F048084
14.	322357	[2]	BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk	NH , Serial Range: -C084
15.	9706755	[2]	NUT,M6, Cl 8	NH , Serial Range: -C084 Superseded by part number: 86500688
16.	47417897	[1]	SUPPORT	ZED , Start Serial: D085
16.	47417402	[1]	SUPPORT	ZED , Start Serial: D085
20.	87716662	[1]	NUT	ZED , Start Serial: D099
21.	86508568	[1]	BOLT,Hex, M6 x 1 x 16mm, Cl 8.8	NH , Start Serial: D099
