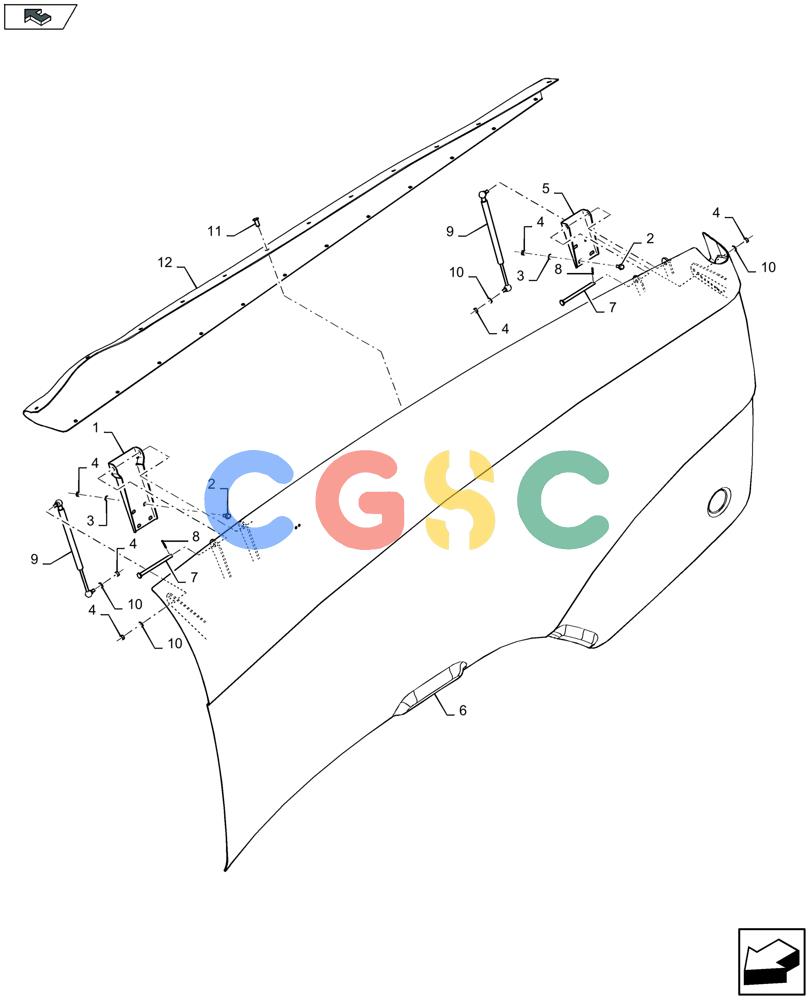

凯斯零件查询(LB424R) - BALER (9/12-) (90.105.020) - SIDE DOOR, LH Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
192 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
84528335
|
[1] |
HALF-HINGE
|
ZED
|
| 2. |
9804258
|
[8] |
BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8
|
NH
|
| 3. |
86624184
|
[8] |
WASHER,9mm ID x 16mm OD x 1.6mm Thk
|
FOR
|
| 4. |
9706690
|
[12] |
NUT,M8 x 1.25, Cl 8
|
NH
Superseded by part number: 43362
|
| 5. |
84280133
|
[1] |
HALF-HINGE
|
ZED
|
| 6. |
84229274
|
[1] |
PANEL
|
ZED
|
| 6. |
84229287
|
[1] |
PANEL
|
ZED
|
| 7. |
86605626
|
[2] |
CLEVIS PIN,M10 x 150
|
ZED
|
| 8. |
10796401
|
[2] |
COTTER PIN,M3.2 x 18
|
TTF
Superseded by part number:
|
| 9. |
84280108
|
[2] |
GAS STRUT,485mm Extended, 285mm Compressed
|
ZED
|
| 10. |
322358
|
[4] |
BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk
|
NH
|
| 11. |
84280063
|
[25] |
HALF-HINGE
|
ZED
|
| 12. |
84379428
|
[1] |
CANVAS
|
ZED
|
