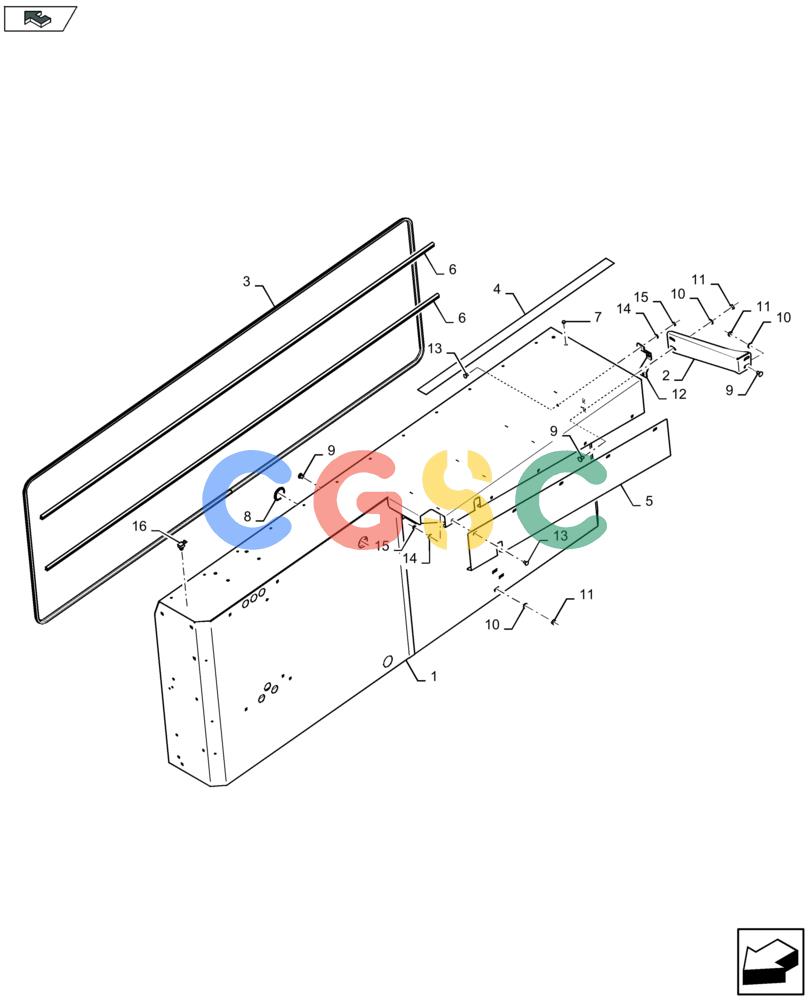

凯斯零件查询(LB424R) - BALER (9/12-) (90.105.060) - TWINE BOXES RH Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
351 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
47363312
|
[1] |
TWINE BOX
|
ZED
, Serial Range: -C091 Superseded by part number: 47559806
|
| 1. |
47559806
|
[1] |
TWINE BOX
|
ZED
, Serial Range: -F092150
|
| 1. |
47940232
|
[1] |
TWINE BOX
|
ZED
, Start Serial: D151
|
| 2. |
84302845
|
[1] |
SUPPORT
|
ZED
|
| 2. |
84298681
|
[1] |
SUPPORT
|
ZED
|
| 3. |
84212895
|
[1] |
SEAL
|
ZED
|
| 4. |
401502
|
[1] |
ANTI-SKID STRIP
|
ZED
L = 1.3 M
|
| 5. |
84410816
|
[1] |
COVER PLATE
|
ZED
, Serial Range: -C150
|
| 5. |
47940236
|
[1] |
PLATE
|
ZED
, Start Serial: D151
|
| 6. |
84607251
|
[2] |
RUBBER WEATHERSTRIP
|
ZED
L = 2.4 M Superseded by part number: 84818178
|
| 7. |
336455
|
[2] |
PLUG
|
ZED
, Serial Range: -C055
|
| 7. |
331233
|
[2] |
PLUG
|
ZED
, Start Serial: D056
|
| 8. |
394228
|
[2] |
PLUG
|
ZED
, Serial Range: -C091
|
| 8. |
47528354
|
[2] |
BUTTON PLUG
|
ZED
, Start Serial: D092
|
| 9. |
120041
|
[7] |
CARRIAGE BOLT,M10 x 20mm, Cl 8.8
|
NH
|
| 10. |
140045
|
[7] |
BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk
|
NH
|
| 11. |
100016
|
[7] |
NUT,M10 x 1.5, Cl 8
|
NH
|
| 12. |
84582390
|
[1] |
PLATE
|
ZED
|
| 13. |
86619060
|
[7] |
CARRIAGE BOLT,M8 x 1.25 x 16mm, Cl 8.8
|
NH
|
| 14. |
322358
|
[7] |
BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk
|
NH
|
| 15. |
9706690
|
[7] |
NUT,M8 x 1.25, Cl 8
|
NH
Superseded by part number: 43362
|
| 16. |
84121645
|
[1] |
MOUNT
|
ZED
, Start Serial: D092
|
