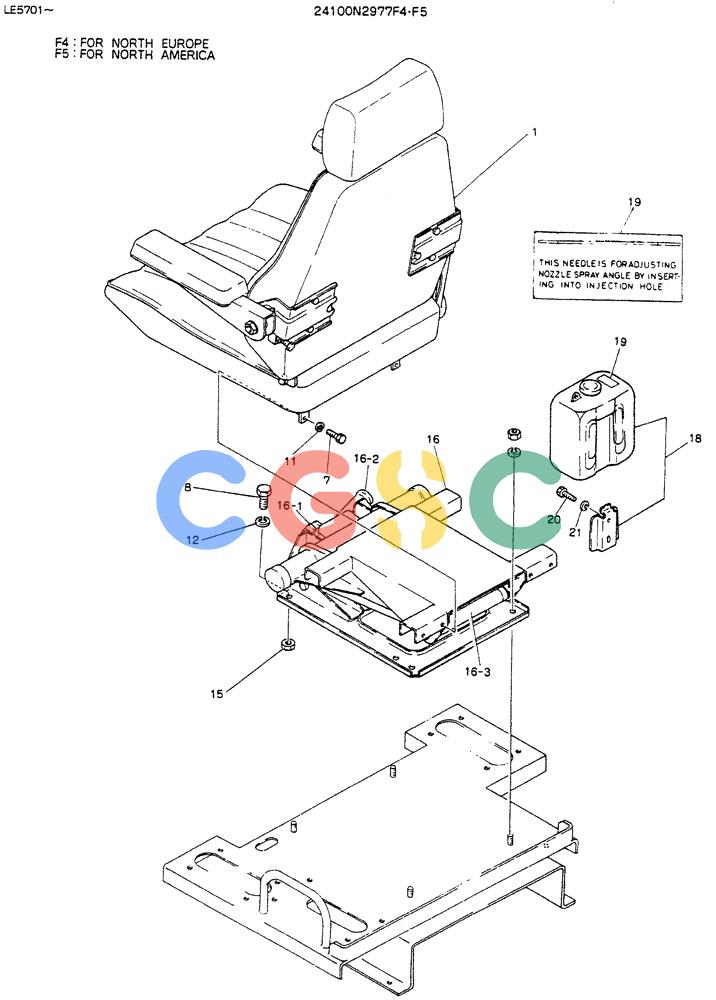

神钢零件查询(K903C) - EXCAVATOR ASN LE5701 (1/87-12/03) (01-010) - SEAT ASSY, P/N 24100N2977F4, F5 Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
208 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100N2977F4 | [1] | SEAT ASSY | |
| 1. | 24100U342F1 | [1] | SEAT ASSY SEE FIGURE 01-011 | SEAT ASSY SEE FIGURE 01-011 |
| 7. | ZS18C08016 | [8] | SCREW,Hex, M8 x 16mm | KOBM08x1.25x16mm |
| 8. | ZS18C12025 | [4] | SCREW,Hex, M12 x 25mm | KOBM12x1.75x25mm |
| 11. | ZW26X08000 | [8] | LOCK WASHER | KOBLock -- ID 08 x OD 15 x Th 2.0mm Superseded by part number: 83990583 |
| 12. | ZW26X12000 | [4] | LOCK WASHER | KOBID 12 x OD 21 x Th 3.0mm |
| 15. | ZN17C12010 | [4] | NUT | KOBM12x1.75mm Superseded by part number: ZN18C12010 |
| 16. | 2448U234F1 | [1] | SUSPENSION | |
| 16-1. | 2448U234S1 | [1] | KNOB | KNOB |
| 16-2. | 2448U234S2 | [1] | HANDLE | KOB |
| 16-3. | 2448U234S3 | [1] | DAMPER | KOBDUMPER |
| . . | 24100N2977F5 | [1] | SEAT ASSY | |
| 18. | 24100U157F1 | [1] | TANK | KOB Superseded by part number: YT54C00003F1 |
| 19. | 2432Z327 | [1] | PLATE | KOB |
| 20. | ZS18C06016 | [2] | SCREW,Hex, M6 x 16mm | KOBM06x1.0x16mm |
| 21. | ZW26X06000 | [2] | LOCK WASHER | KOBID 06 x OD 07 x Th 1.5mm |
