神钢零件查询(K903C) - EXCAVATOR ASN LE5701 (1/87-12/03) (01-011) - SEAT ASSY, P/N 24100U342F1 Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
531 次

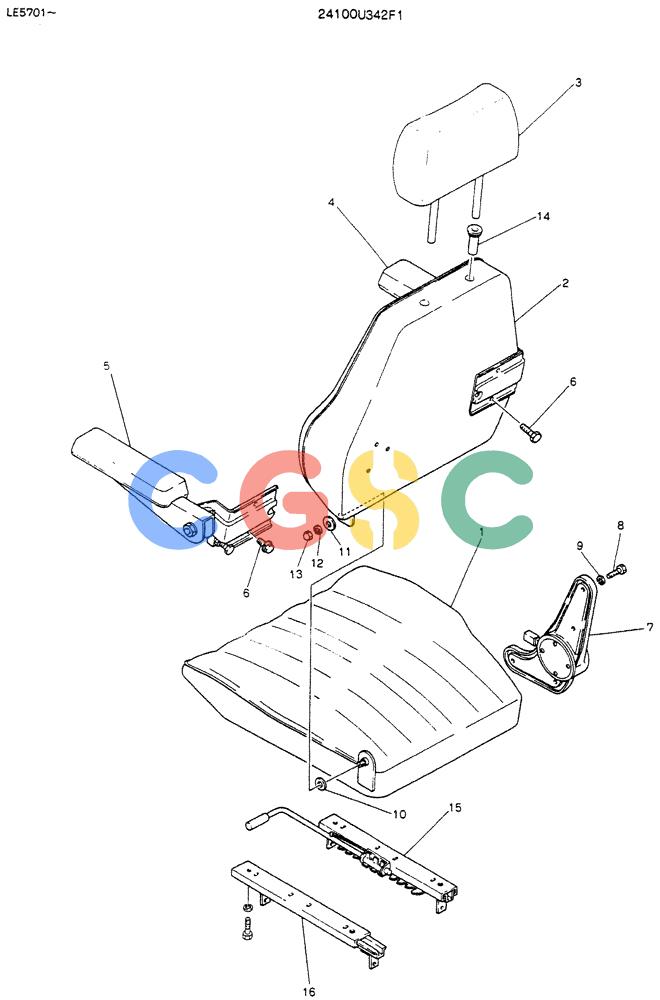

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100U342F1 | [1] | SEAT ASSY SEE FIGURE 01-009 | SEAT ASSY SEE FIGURE 01-009 |
| 1. | NSS | [1] | NOT SOLD SEPARAT | CONSEAT |
| 2. | NSS | [1] | NOT SOLD SEPARAT | CONBACK, SEAT |
| 3. | NSS | [1] | NOT SOLD SEPARAT | CONREST, HEAD |
| 4. | NSS | [1] | NOT SOLD SEPARAT | CONREST, ARM (R) |
| 5. | NSS | [1] | NOT SOLD SEPARAT | CONREST, ARM (L) |
| 6. | NSS | [6] | NOT SOLD SEPARAT | CONCAPSCREW |
| 7. | NSS | [1] | NOT SOLD SEPARAT | CONBRACKET |
| 8. | NSS | [4] | NOT SOLD SEPARAT | CONCAPSCREW |
| 9. | NSS | [4] | NOT SOLD SEPARAT | CONLOCK WASHER |
| 10. | NSS | [1] | NOT SOLD SEPARAT | CONBUSHING |
| 11. | NSS | [1] | NOT SOLD SEPARAT | CONWASHER |
| 12. | NSS | [1] | NOT SOLD SEPARAT | CONLOCK WASHER |
| 13. | NSS | [1] | NOT SOLD SEPARAT | CONNUT |
| 14. | NSS | [2] | NOT SOLD SEPARAT | CONGUIDE |
| 15. | 2429U72D1 | [1] | RAIL ASSY. | KOB |
| 16. | 2429U72D2 | [1] | RAIL ASSY. | KOB |
