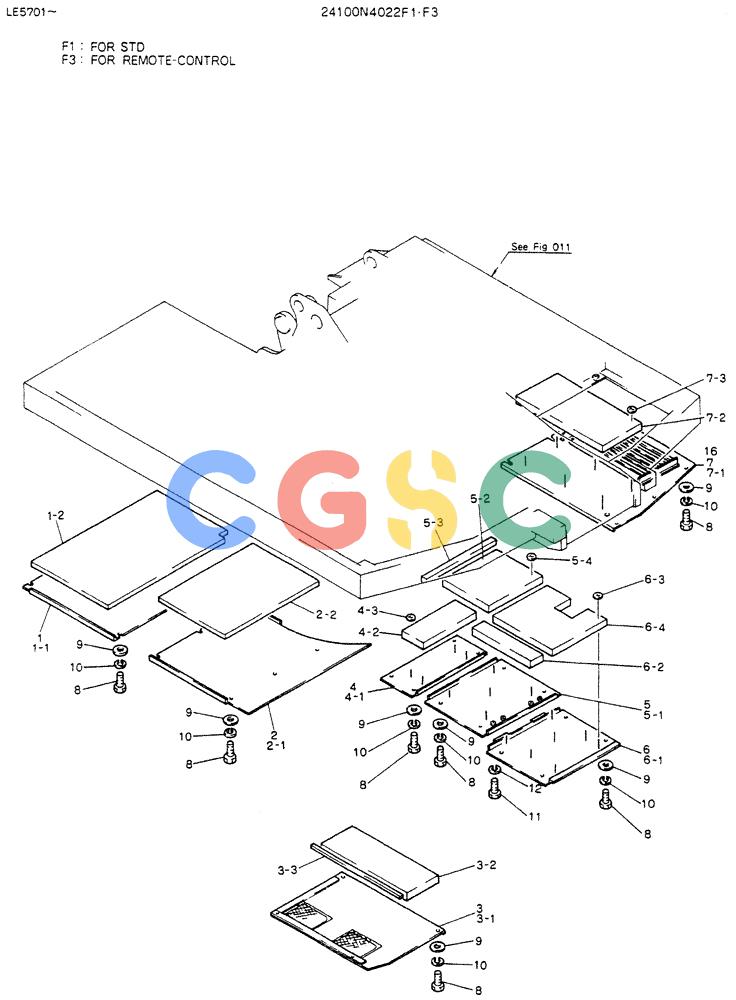

神钢零件查询(K903C) - EXCAVATOR ASN LE5701 (1/87-12/03) (01-017[01]) - COVER ASSY, UNDER (FOR SILENT TYPE-24100N4022F1) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
777 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100N4022F1 | [1] | COVER ASSY,UNDER | |
| 1. | 2414T2785F1 | [1] | COVER ASSY | |
| 1-1. | 2414T2753 | [1] | COVER | |
| 1-2. | 2479T1149 | [1] | INSULATION, SOUND | |
| 2. | 2414T2800F1 | [1] | COVER ASSY | |
| 2-1. | 2414T2801 | [1] | COVER | |
| 2-2. | 2479T1150 | [1] | INSULATION,SOUND | |
| 3. | 2414T2817F1 | [1] | COVER ASSY | COVER ASSY |
| 3-1. | 2414P4092 | [1] | COVER | |
| 3-2. | 2479T1200 | [1] | INSULATION,SOUND | |
| 3-3. | 2416Z443D2 | [1] | INSULATOR | |
| 4. | 2414T2841F1 | [1] | COVER ASSY | COVER ASSY |
| 4-1. | 2414T2842 | [1] | COVER | |
| 4-2. | 2479T1142 | [1] | INSULATION, SOUND | INSULATION, SOUND |
| 4-3. | 2418T8864 | [4] | WASHER | KOB |
| 5. | 2414T2776F1 | [1] | COVER ASSY | COVER ASSY |
| 5-1. | 2414T2780 | [1] | COVER | |
| 5-2. | 2479T1143 | [1] | INSULATION, SOUND | INSULATION, SOUND |
| 5-3. | 2416Z507D1 | [1] | CUSHION | KOB |
| 5-4. | 2418T8864 | [5] | WASHER | KOB |
| 6. | 2414T2818F1 | [1] | COVER ASSY | COVER ASSY |
| 6-1. | 2414T2819 | [1] | COVER | |
| 6-2. | 2479T1144 | [1] | INSULATION, SOUND | INSULATION, SOUND |
| 6-3. | 2418T8864 | [7] | WASHER | KOB |
| 6-4. | 2416Z490D11 | [1] | RUBBER, CUSHION | RUBBER, CUSHION |
| 7. | 2414T2778F1 | [1] | COVER ASSY | COVER ASSY |
| 7-1. | 2414P4025 | [1] | COVER | |
| 7-2. | 2479T1145 | [1] | INSULATION, SOUND | |
| 7-3. | 2418T8864 | [6] | WASHER | KOB |
| 8. | ZS18C12030 | [34] | SCREW,Hex, M12 x 30mm | KOBM12x1.75x30mm |
| 9. | 2418T10357 | [34] | WASHER | KOBID 13 x OD 30 x Th 3.2mm Superseded by part number: 2418T12345 |
| 10. | ZW26X12000 | [34] | LOCK WASHER | KOBID 12 x OD 21 x Th 3.0mm |
| 11. | ZS18C10025 | [4] | SCREW,Hex, M10 x 25mm | KOBM10x1.50x25mm |
| 12. | ZW26X10000 | [4] | LOCK WASHER | KOBID 10 x OD 18 x Th 2.5mm |
