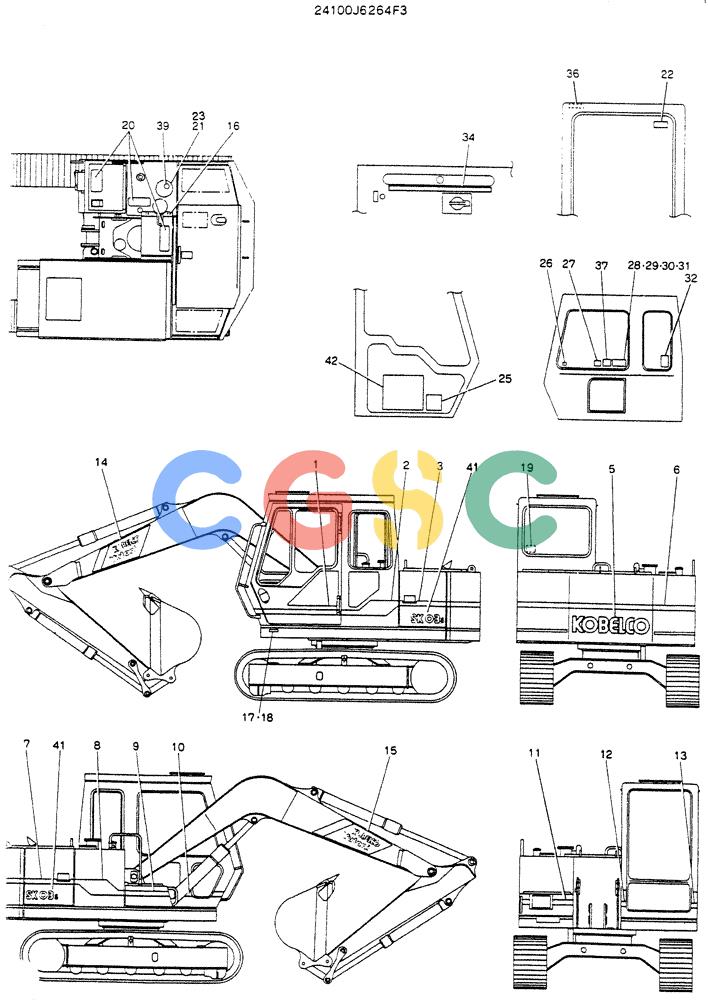

神钢零件查询(K903C) - EXCAVATOR ASN LE5701 (1/87-12/03) (09-002) - LABEL, NAME-PLATE, P/N 24100J6264F3 Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
673 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100J6264F3 | [1] | | |
| I. | 2432T2308 | [1] | LABEL | KOB |
| 2. | 2432T2309 | [1] | LABEL | KOB |
| 3. | 2432T2360 | [1] | LABEL | LABEL |
| 5. | 2432N1100 | [1] | TYPE PLATE | KOB |
| 6. | 2432T2304D7 | [1] | LABEL | KOB |
| 7. | 2432T2361 | [1] | LABEL | LABEL |
| 8. | 2432T2359 | [1] | LABEL | KOB |
| 9. | 2432T2358 | [1] | LABEL | LABEL |
| 10. | 2432T2312 | [1] | LABEL | KOB |
| 11. | 2432T2306D2 | [1] | LABEL LABEL | LABEL LABEL |
| 12. | 2432T2310 | [1] | LABEL | LABEL |
| 13. | 2432T2311 | [1] | LABEL | LABEL |
| 14. | 2432T2335 | [1] | NAME-PLATE | NAME-PLATE |
| 15. | 2432T2336 | [1] | NAME-PLATE | NAME-PLATE |
| 16. | 2432T1142D3 | [2] | LABEL | KOBLABEL |
| 17. | 4020Z64 | [2] | RIVET | KOBOD 5.0 x 6.0mm Long Superseded by part number: 2420P623D7 |
| 18. | 2432T1530 | [1] | IDENTITY PLATE | KOB |
| 19. | 2432Z387 | [1] | LABEL | LABEL |
| 20. | 2427Z329 | [3] | SHEET | KOBAnti-Slip (300x150mm) |
| 21. | 2432T884 | [1] | LABEL | KOB |
| 22. | 2432T888 | [1] | PLATE, CAUTION | PLATE, CAUTION |
| 23. | 2432T2283 | [1] | LABEL | KOBDecal, Fuel location |
| 25. | 2432T1759 | [1] | PLATE | KOB |
| 26. | 2432T1753 | [1] | LABEL | KOBDecal, Kobelco Operation Superseded by part number: YN20T01407P1 |
| 27. | 2432Z287 | [1] | LABEL | KOB Superseded by part number: YN20T01408P1 |
| 28. | 2432N568 | [1] | INSTALLER JIG | KOB Superseded by part number: 2432N1751 |
| 29. | 2432NS78 | [1] | PLATE,INSTRUCTION | |
| 30. | 2432N696 | [1] | INSTALLER JIG | KOB Superseded by part number: 2432N1750 |
| 31. | 2432N1084 | [1] | INSTALLER JIG | KOB Superseded by part number: 2432N1752 |
| 32. | 2432T2991D1 | [1] | LABEL | KOB |
| 33. | 2432N563 | [1] | LABEL | |
| 34. | 2432T2316 | [1] | LABEL | KOB |
| 36. | 2432T2337 | [1] | LABEL | LABEL |
| 37. | 2432P1013 | [1] | LABEL | LABEL |
| 39. | 2446U228S12 | [1] | LABEL | KOB |
| 41. | 2432J1311 | [2] | NAME-PLATE | NAME-PLATE |
| 42. | 2432J1314 | [1] | LABEL | |
