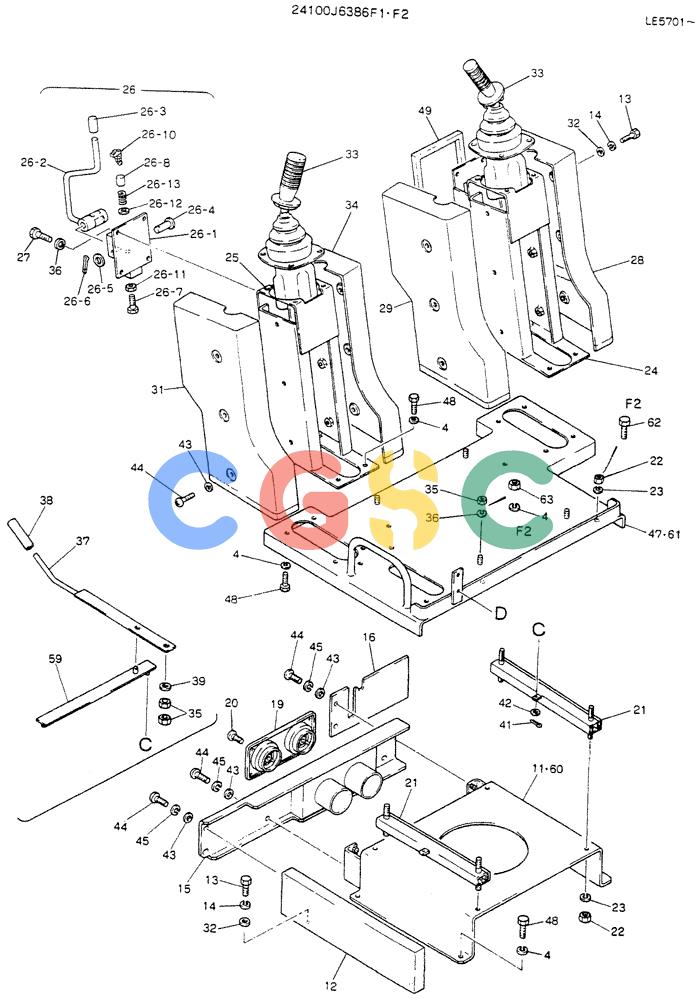

神钢零件查询(K903C) - EXCAVATOR ASN LE5701 (1/87-12/03) (02-003[02B]) - CONTROL ASSY (WRIST CONTROL)P/N 24100J6386F2 Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
1005 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100J638GF2 | [1] | CONTROL ASSY | |
| 1. | 24100N3050F2 | [1] | LEVER ASSY CONTROL,P.02-009, Serial Range: LE5701--LE6342 | |
| 2. | 2418T12644 | [2] | PLATE | |
| 3. | ZS18C10035 | [4] | SCREW,Hex, M10 x 35mm | KOBM10x1.50x35mm |
| 4. | ZW26X10000 | [20] | LOCK WASHER | KOBID 10 x OD 18 x Th 2.5mm |
| 5. | 2406T1672 | [2] | YOKE | KOB Superseded by part number: 2406T2278 |
| 6. | 2419T3784D1 | [2] | PIN | KOB |
| 7. | ZW16X12000 | [2] | WASHER | KOBID 12 x OD 24 x Th 2.3mm |
| 8. | 2419R9D4 | [2] | COTTER PIN | KOBSnap -- OD 12mm x 35.8mm Long |
| 9. | 2406R203D3 | [2] | CABLE | KOB Superseded by part number: 2406R203D6 |
| 10. | 2479Z955 | [2] | LIMIT SWITCH | KOB Superseded by part number: 2479Z700 |
| 12. | 2414P4066 | [1] | COVER | |
| 13. | ZS18C06016 | [7] | SCREW,Hex, M6 x 16mm | KOBM06x1.0x16mm |
| 14. | ZW26X06000 | [7] | LOCK WASHER | KOBID 06 x OD 07 x Th 1.5mm |
| 15. | 2414N1981 | [1] | COVER | |
| 16. | 2416P8716 | [1] | BRACKET | |
| 17. | 2419T4690 | [1] | PIN | |
| 18. | 2414Z270D2 | [1] | CAP | KOB |
| 19. | 2416R231 | [1] | GRILLE | KOB |
| 20. | 2420Z1040 | [4] | SCREW | KOB |
| 23. | ZW26X12000 | [4] | LOCK WASHER | KOBID 12 x OD 21 x Th 3.0mm |
| 24. | 2416N3257 | [1] | STAND | STAND |
| 25. | 2416N3258 | [1] | STAND | KOB |
| 26. | 24100N3035F2 | [1] | LEVER ASSY | LEVER ASSY |
| 26-1. | 2416N3254 | [1] | BRACKET | KOB |
| 26-2. | 2406P2608 | [1] | LEVER | KOB |
| 26-3. | 2414Z270D1 | [1] | CAP | KOBGRIP |
| 26-4. | ZP45X12080 | [1] | PIN | PIN |
| 26-5. | ZW16X12000 | [1] | WASHER | KOBID 12 x OD 24 x Th 2.3mm |
| 26-6. | ZP15D04022 | [1] | COTTER PIN | KOBPin, Cotter |
| 26-7. | ZS18C12030 | [1] | SCREW,Hex, M12 x 30mm | KOBM12x1.75x30mm |
| 26-8. | 2406T1812 | [1] | BAR | KOB |
| 26-10. | 2479Z954 | [1] | SWITCH | KOBLIMIT |
| 26-11. | ZN17C12010 | [1] | NUT | KOBM12x1.75mm Superseded by part number: ZN18C12010 |
| 26-12. | ZW11K08000 | [1] | WASHER | KOB |
| 26-13. | 2417T513 | [1] | SPRING | SPRING |
| 27. | ZS18C08020 | [4] | SCREW,Hex, M8 x 20mm | KOBM08x1.25x20mm |
| 28. | 2414N1955 | [1] | COVER | KOB |
| 29. | 2414N1956 | [1] | COVER | COVER |
| 30. | 2414N1957 | [1] | COVER | KOB |
| 31. | 2414N1958 | [1] | COVER | KOB |
| 32. | ZW16X06000 | [5] | WASHER | KOBID 06 x OD 12.5 x Th 1.6mm Superseded by part number: 86588450 |
| 33. | 24100J6418F2 | [1] | REMOTE-CONTROL ASSY,P.03-006 | |
| 34. | 2420Z1188 | [2] | GROMMET | KOB |
| 36. | ZW26X08000 | [12] | LOCK WASHER | KOBLock -- ID 08 x OD 15 x Th 2.0mm Superseded by part number: 83990583 |
| 43. | 2420T4505 | [18] | WASHER,7mm ID x 16mm OD x 1mm Thk | KOBID 07 x OD 16 x Th 1.0mm |
| 44. | 2418T17297 | [18] | SCREW | KOB |
| 45. | ZW22X06000 | [9] | LOCK WASHER ID 06 x OD 12.2 x Th 1.5mm | LOCK WASHER ID 06 x OD 12.2 x Th 1.5mm |
| 46. | ZW16X10000 | [4] | WASHER | KOBID 10 x OD 21 x Th 2.0mm |
| 47. | 2416J813 | [1] | SUPPORT | |
| 48. | ZS18C10030 | [4] | SCREW,Hex, M10 x 30mm | KOBM10x1.50x30mm |
| 49. | 2416R233 | [1] | RUBBER MOUNTING | KOB |
| 50. | 2416T13342 | [1] | BRACKET | |
| 51. | 2420Z681 | [2] | ROD | KOBEND |
| 52. | ZS13C12030 | [4] | CAPSCREW | KOBSCREW M12x1.75x30mm Superseded by part number: ZS18C12030 |
| 53. | ZW22X12000 | [4] | LOCK WASHER | KOBID 12 x OD 21.5 x Th 3.0mm Superseded by part number: ZW26X12000 |
| 54. | 2420T4065 | [2] | STUD | KOB |
| 55. | 2414P4074 | [1] | COVER | |
| 56. | ZS13C08010 | [4] | CAPSCREW | |
| 57. | 24100U157F1 | [1] | TANK | KOB Superseded by part number: YT54C00003F1 |
| 58. | 2432Z327 | [1] | PLATE | KOB |
| 60. | 2416N3342 | [1] | SUPPORT | |
| 61. | 2416J826 | [1] | SUPPORT | |
| 62. | ZS18C12065 | [4] | SCREW,Hex, M12 x 65mm | KOBM12x1.75x65mm |
| 63. | ZN17C10008 | [4] | NUT | KOBM10x1.50mm Superseded by part number: ZN18C10008 |
| 64. | 24100N3050F3 | [1] | LEVER ASSY,CONTROL,P.02-009, Start Serial: LE6343- | |
