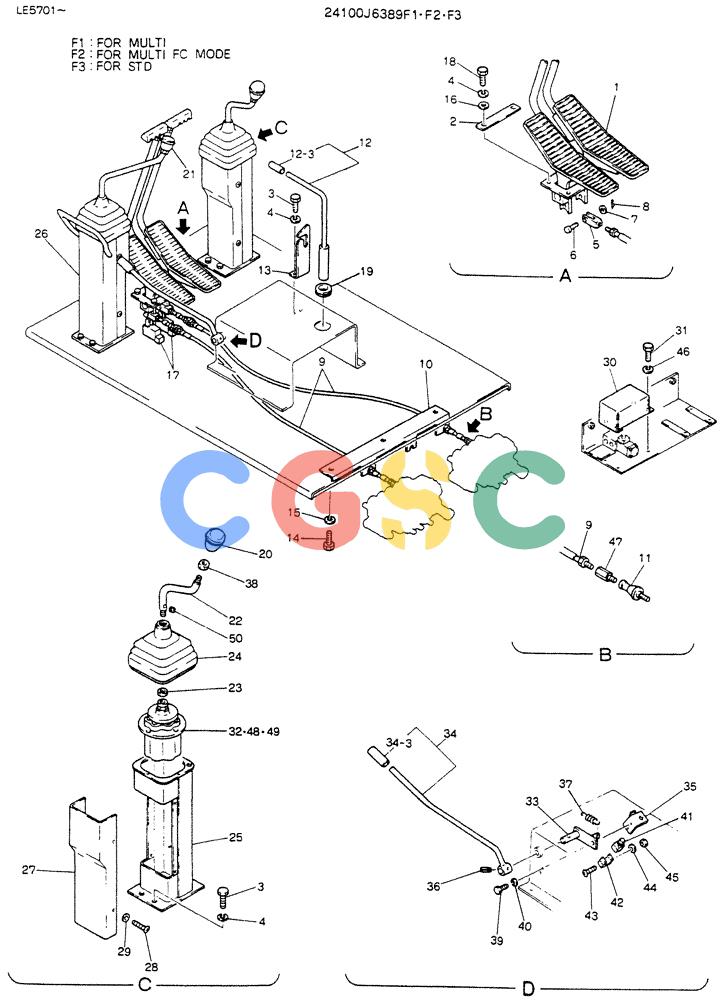

神钢零件查询(K903C) - EXCAVATOR ASN LE5701 (1/87-12/03) (02-004[01]) - CONTROL ASSY (WRIST CONTROL) P/N 24100J6386F1 Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
321 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100J6389F1 | [1] | CONTROL ASSY | |
| 1. | 24100N3050F1 | [1] | LEVER ASSY, CONTROL | |
| 2. | 2418T12644 | [2] | PLATE | |
| 3. | ZS18C10030 | [10] | SCREW,Hex, M10 x 30mm | KOBM10x1.50x30mm |
| 4. | ZW26X10000 | [14] | LOCK WASHER | KOBID 10 x OD 18 x Th 2.5mm |
| 5. | 2406T1672 | [2] | YOKE | KOB Superseded by part number: 2406T2278 |
| 6. | 2419T3784D1 | [2] | PIN | KOB |
| 7. | ZW16X12000 | [2] | WASHER | KOBID 12 x OD 24 x Th 2.3mm |
| 8. | 2419R9D4 | [2] | COTTER PIN | KOBSnap -- OD 12mm x 35.8mm Long |
| 9. | 2406R203D3 | [2] | CABLE | KOB Superseded by part number: 2406R203D6 |
| 10. | 2416T13342 | [1] | BRACKET | |
| 11. | 2420Z681 | [2] | ROD | KOBEND |
| 12. | 2419T4634 | [1] | PIN | KOBPIN |
| 12-3. | 2414Z270D2 | [1] | CAP | KOB |
| 13. | 2416T13333 | [1] | BRACKET | |
| 14. | ZS13C12030 | [4] | CAPSCREW | KOBSCREW M12x1.75x30mm Superseded by part number: ZS18C12030 |
| 15. | ZW22X12000 | [4] | LOCK WASHER | KOBID 12 x OD 21.5 x Th 3.0mm Superseded by part number: ZW26X12000 |
| 16. | ZW16X10000 | [4] | WASHER | KOBID 10 x OD 21 x Th 2.0mm |
| 17. | 2479Z955 | [2] | LIMIT SWITCH | KOB Superseded by part number: 2479Z700 |
| 18. | ZS18C10035 | [4] | SCREW,Hex, M10 x 35mm | KOBM10x1.50x35mm |
| 19. | 2420Z1042 | [1] | GROMMET | KOB Superseded by part number: 2420Z1301 |
| 20. | 2406R237D1 | [1] | BALL,LEVER | BALL,LEVER |
| 21. | 2406R237D2 | [1] | LEVER | KOB Superseded by part number: 2406R237D3 |
| 22. | 2406P3960 | [2] | LEVER | LEVER |
| 23. | ZN17C12010 | [2] | NUT | KOBM12x1.75mm Superseded by part number: ZN18C12010 |
| 24. | 2414R233 | [2] | BOOT | KOB |
| 25. | 2416N3247 | [1] | STAND, CONTROL | |
| 26. | 2416N3248 | [1] | STAND, CONTROL | |
| 27. | 2414T2720 | [2] | COVER | |
| 28. | ZS31C05010 | [8] | BOLT,Phillips Drive, Pan HD, M5 x 10mm | KOBM05x0.8x10mm |
| 29. | ZW11P05000 | [8] | WASHER | KOBLEVER Superseded by part number: ZW16P05000 |
| 30. | 2414P4074 | [1] | COVER | |
| 31. | ZS13C06010 | [4] | SCREW | KOBM06x1.0x10mm Superseded by part number: ZS18C06010 |
| 32. | 24100J6387F1 | [1] | LEVER | |
| 33. | 2406P2599 | [1] | LEVER | LEVER |
| 34. | 2406P2600 | [1] | LEVER | LEVER |
| 34-3. | 2414Z270D1 | [1] | CAP | KOB |
| 35. | 2416T13273 | [1] | SUPPORT | |
| 36. | ZP26D05025 | [1] | ROLL PIN | KOBOD 05 x 25mm Long |
| 37. | 2417T510 | [1] | SPRING | KOB |
| 38. | ZN17F12007 | [2] | NUT | KOB |
| 39. | ZS18C08020 | [2] | SCREW,Hex, M8 x 20mm | KOBM08x1.25x20mm |
| 40. | ZW26X08000 | [1] | LOCK WASHER | KOBLock -- ID 08 x OD 15 x Th 2.0mm Superseded by part number: 83990583 |
| 41. | 2479Z932 | [1] | SWITCH | KOBLIMIT |
| 42. | 2414Z265 | [1] | COVER | KOB |
| 43. | ZS31C04030 | [2] | SCREW,Phillips Drive, Pan HD, M4 x 30mm | KOBM04x0.7x30mm |
| 44. | ZW16K04000 | [4] | WASHER | KOBID 04 x OD 08 x Th 0.8mm |
| 45. | ZN16C04003 | [2] | NUT | KOBM04x0.7mm Superseded by part number: ZN18C04003 |
| 46. | ZW22X06000 | [4] | LOCK WASHER ID 06 x OD 12.2 x Th 1.5mm | LOCK WASHER ID 06 x OD 12.2 x Th 1.5mm |
| 47. | 2420T4065 | [2] | STUD | KOB |
| 49. | 24100J6418F1 | [1] | REMOTE CONTROL ASSY, P02-005 | |
| 50. | 2420R189D5 | [1] | GROMMET, Start Serial: LE5839- | |
